STR Electronics Talon SRX - Page 21

217-8080
Talon SRX - User’s Guide
crosstheroadelectronics.com vexpro.com
Copyright 2017, Cross The Road Electronics, VEX Robotics Inc.
Updated: 2017-02-03
21

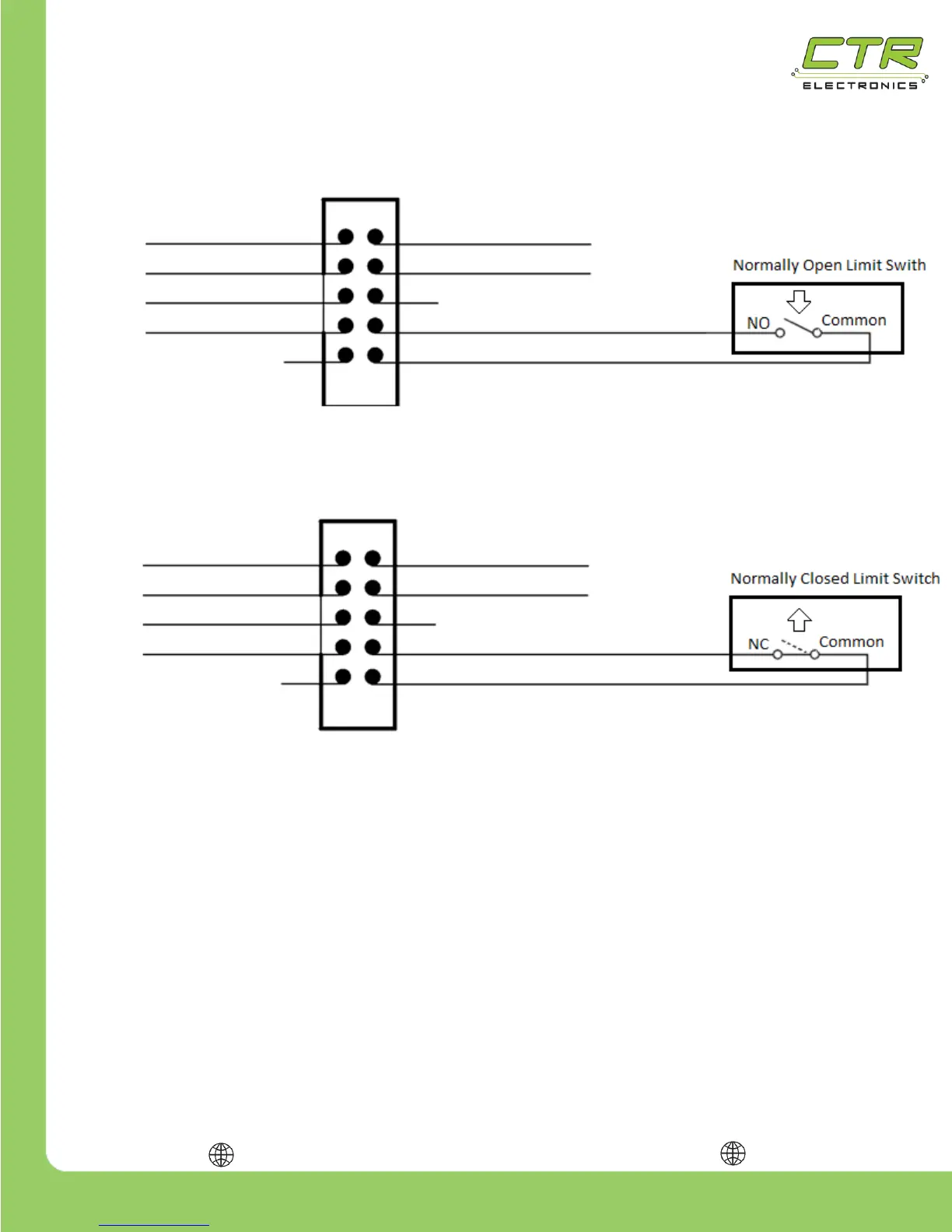

Reverse Limit Switch - Normally Closed
+3.3V 1
Analog Input 3
Quadrature B 5
Quadrature A 7
2 +5V
4 Forward Limit
6 DO NOT CONNECT
X
8 Reverse Limit
10 GND
Quadrature Index 9
+3.3V 1
Analog Input 3
Quadrature B 5
Quadrature A 7
2 +5V
4 Forward Limit
6 DO NOT CONNECT
X
8 Reverse Limit
10 GND
Quadrature Index 9
Reverse Limit Switch - Normally Open (default)
