Strapex STB 63

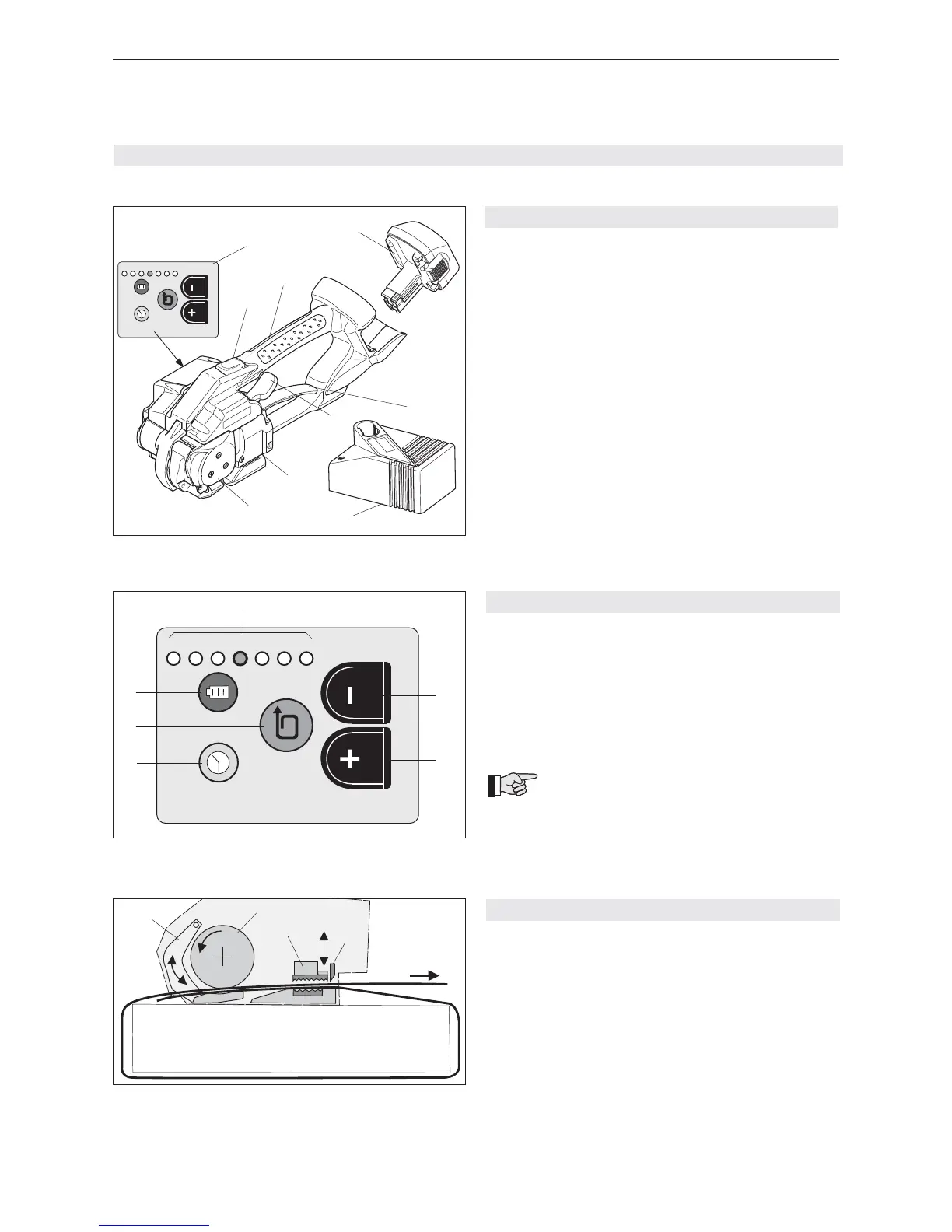

4 DESCRIPTION
4.3 FUNCTION
– Clamping of the straps by tooth plate on rocker
(3/1).
– Tensioning by feed wheel (3/2) anti-clockwise.
– Friction welding (3/3) of the straps.
– Upper strap is cut by knife (3/4).
4.1 CONSTRUCTION
1 Operating panel
2 Strap tensioning push button
3 Handle
4 Battery
5 Rocker lever
6 Welding/cutting button
7 Welding/Cutting
8 Tensioning
9 Battery charger
4.2 OPERATING PANEL
1 Welding time push button
2 Strap tension push button
3 Battery push button
4 LED-indicators 1–7
Green = Strap tension setting
Red = Battery empty indicator
5 Setting – push button
6 Setting + push button
For detailed information of the operating
panel, refer to chapter 6.3.
7
6
5
4
3
2
1
Fig. 1
1
2
3
4
5
6
7
8
9
1
2
3
4
Fig. 3
Fig. 2
7
6
5
4
3
2
1
1
2
3
4
5
6
