Objet500 User Guide 5 Using Objet Studio
DOC-07027 Rev.E 5-6
Objet Studio
Interface
WhenObjetStudioopens,theTray Settingsscreenappears,showingan
emptybuildtray.

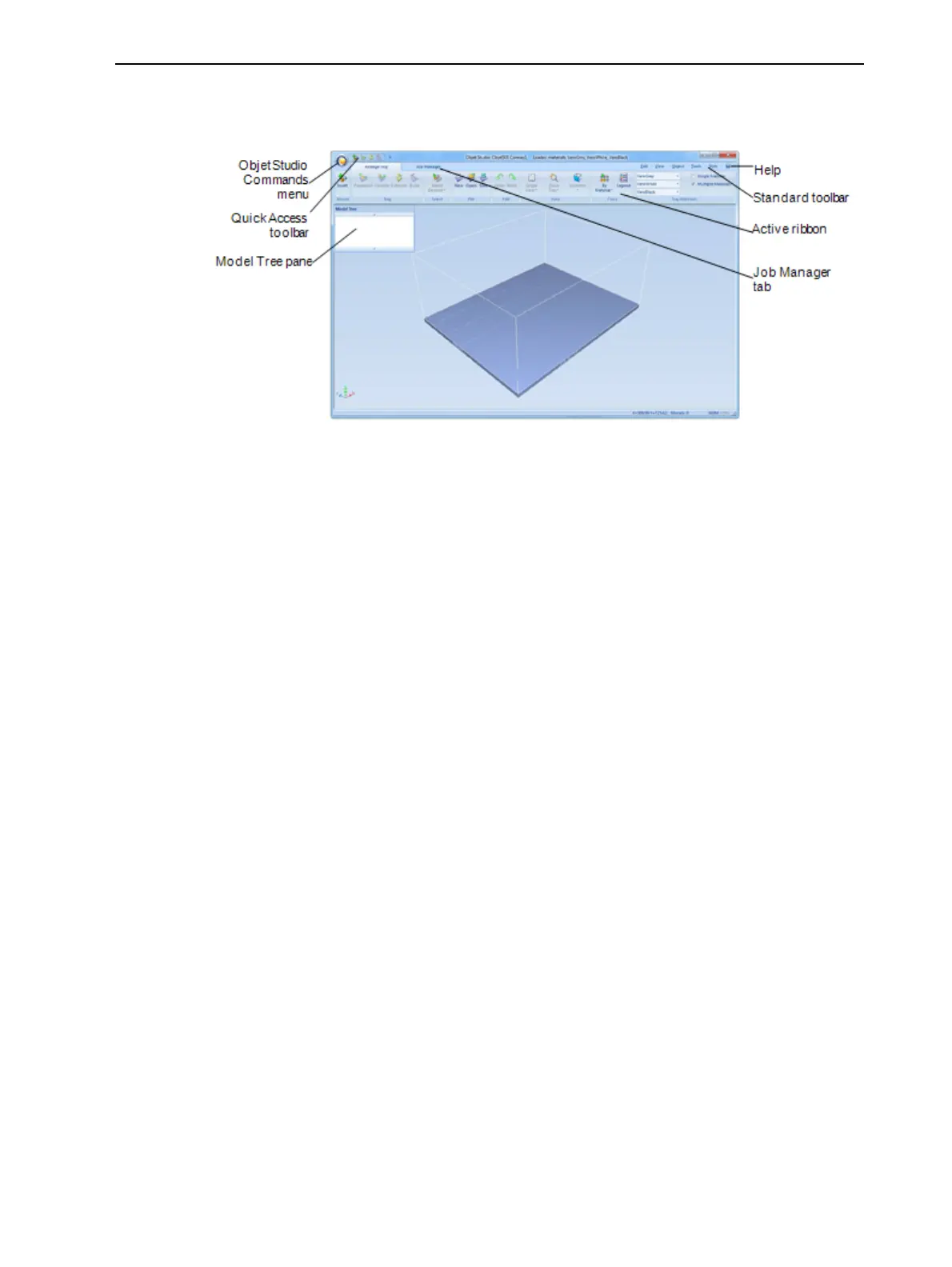

Figure5-4ObjetStudioopeningscreen
TheObjetStudiointerfaceconsistsoftwomainscreens:
•Tray Settings—forarrangingmodelsandpreparingthemforprinting.
•Job Manager—formonitoringandmanagingprintjobs.
Thisscreenisdescribedin"MonitoringandManagingPrintJobs"onpage
5-82.
Eachscreeniscontrolledbymenusandiconsonitsownribbon.An
additionalribbon,Model Settings,displayscontrolsforconfiguringand
manipulatingselectedmodels.
ObjetStudioanticipatesyourworkflowbydisplayingandenablingtheoptions
relevanttoyourcurrenttask.Forexample,whenyoufirstopenObjetStudio,
theModel Settingsribbonisdisableduntilyouplaceamodelonthebuild
tray.Similarly,optionsavailablefromthestandardtoolbarmenusareenabled
ordisabledtomatchthecurrentworkflow.
