Objet500 User Guide 5 Using Objet Studio
DOC-07027 Rev.E 5-17
OpeningobjdfFiles
Beforeplacingobjdffilesonthebuildtray,ObjetStudiomustextractthe
componentstlfilestogetherwithinformationabouttheirrelativeposition
andmodelmaterials.Todothis,ObjetStudiocreatesafolderwiththesame
nameastheobjdf file,inthesamelocation.
Ifyouareopeninganobjdf file,theInsertdialogboxalsoincludesa
Materialsfieldthatshowstheobject’sprintingmaterialassignment(see
below).

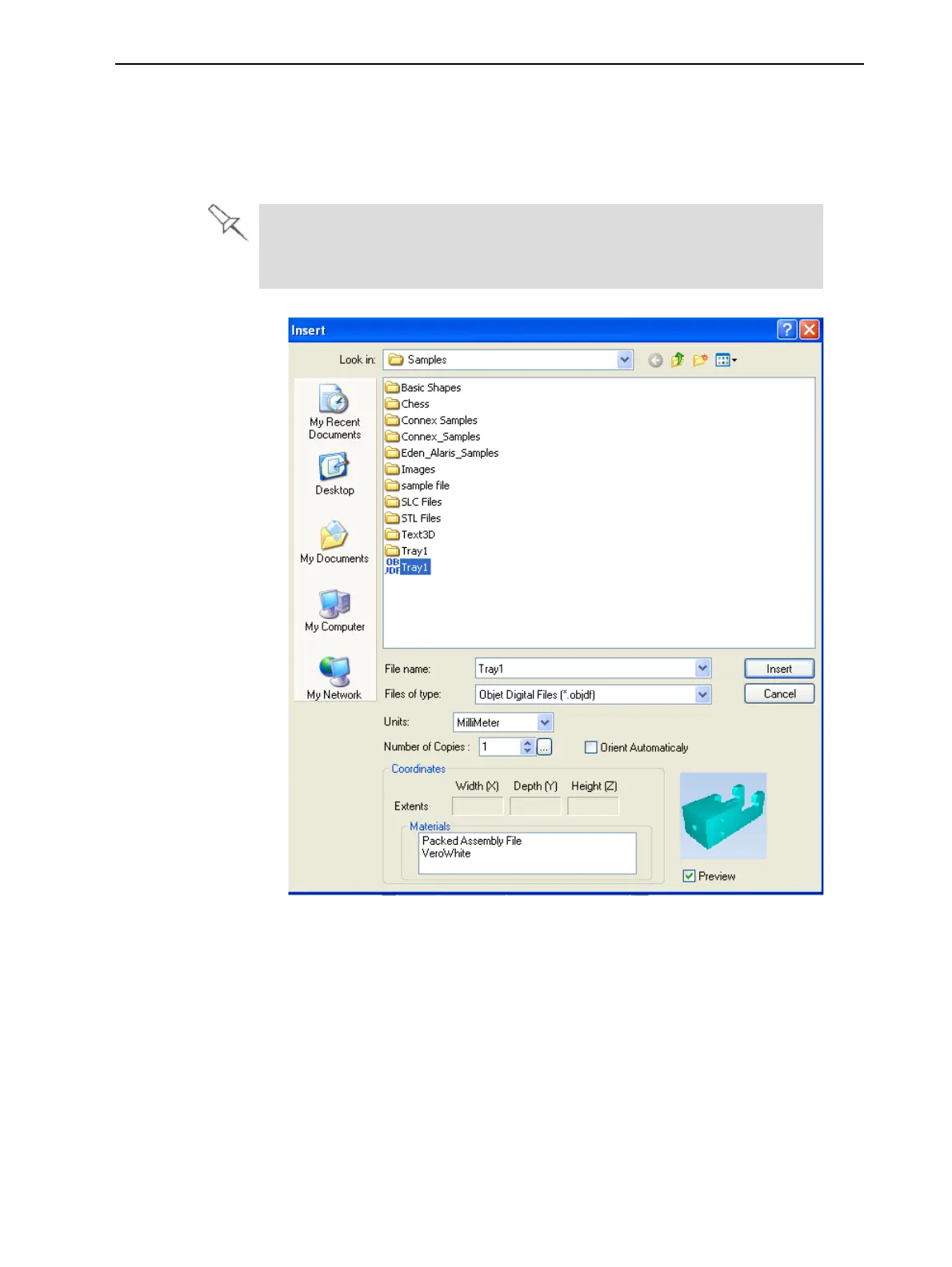

Figure5-15Insertdialogbox(objdffile)
