4.1.3 General information
- independent from the size of the housing
Information Value Comment
Operating time 100 % Suitable for continuous operation
Radial force drive max. 200 N Maximum permissible shear force F
max
Axial force max. 300 N Maximum permissible axial load of the shaft
Ambient temperature -40°C to +85°C
-30°C to +85°C (for contact 51, 52, 53)
Max. permissible relative humidity 0 to 60 %

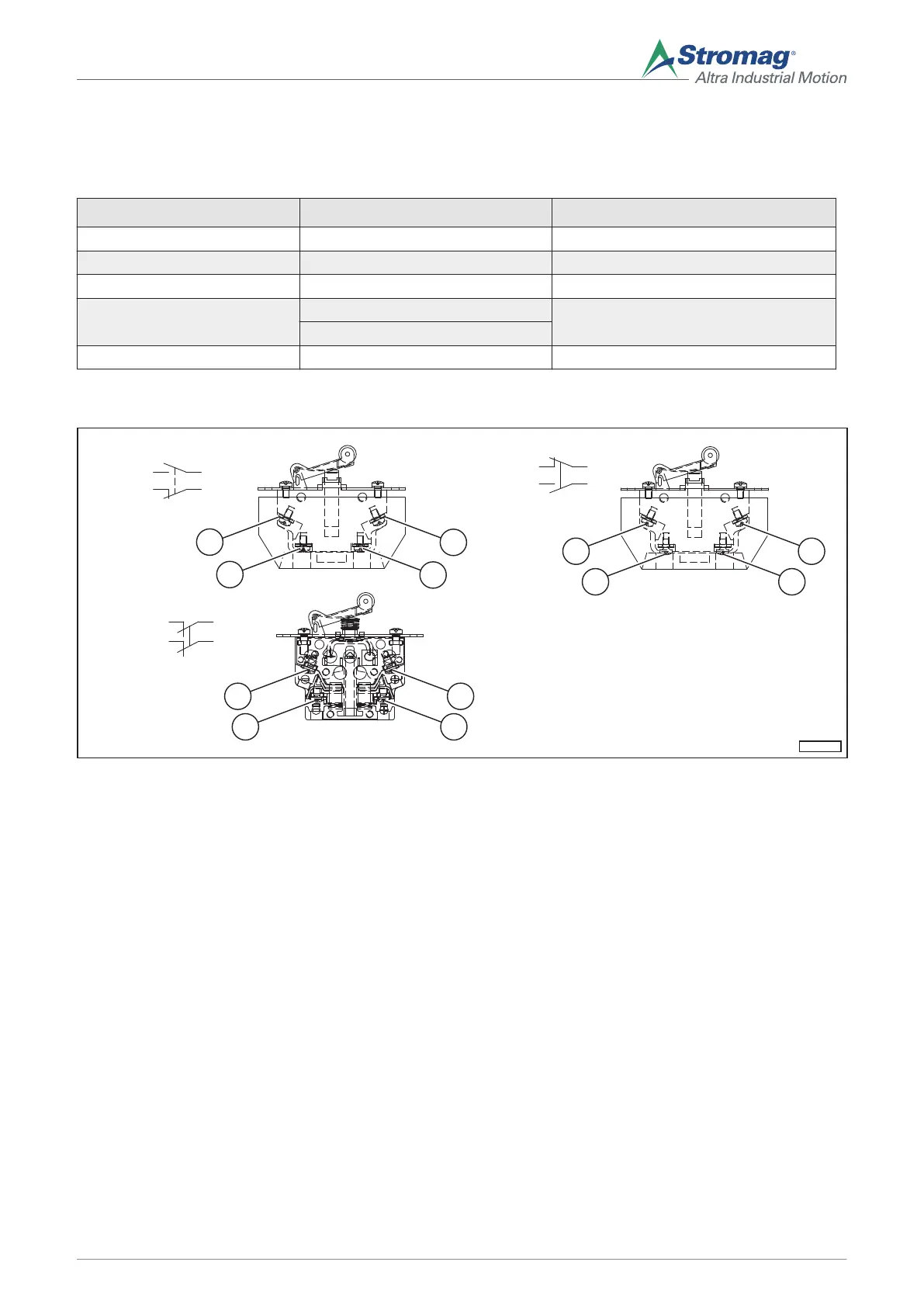

4.1.4 Specific electrical values and position of the contact
EKM-0113
81
3
1
4
2
22
12
21
11
88
3
1
4
2
80
90
90G
1
2
4
3
21 22
1211
21
43
A)
B)
C)
Fig. 1
A 80/90/90G: Circuit changeover quick ac-
tion with electrically isolated contact
bridges
C 88: Double opener circuit quick action
with contact bridges electrically isolated
from each other
B 81: Circuit changeover button with electri-
cally isolated contact bridges
1, 2, 3, 4,
11, 12,
21, 22
Connection points
13
