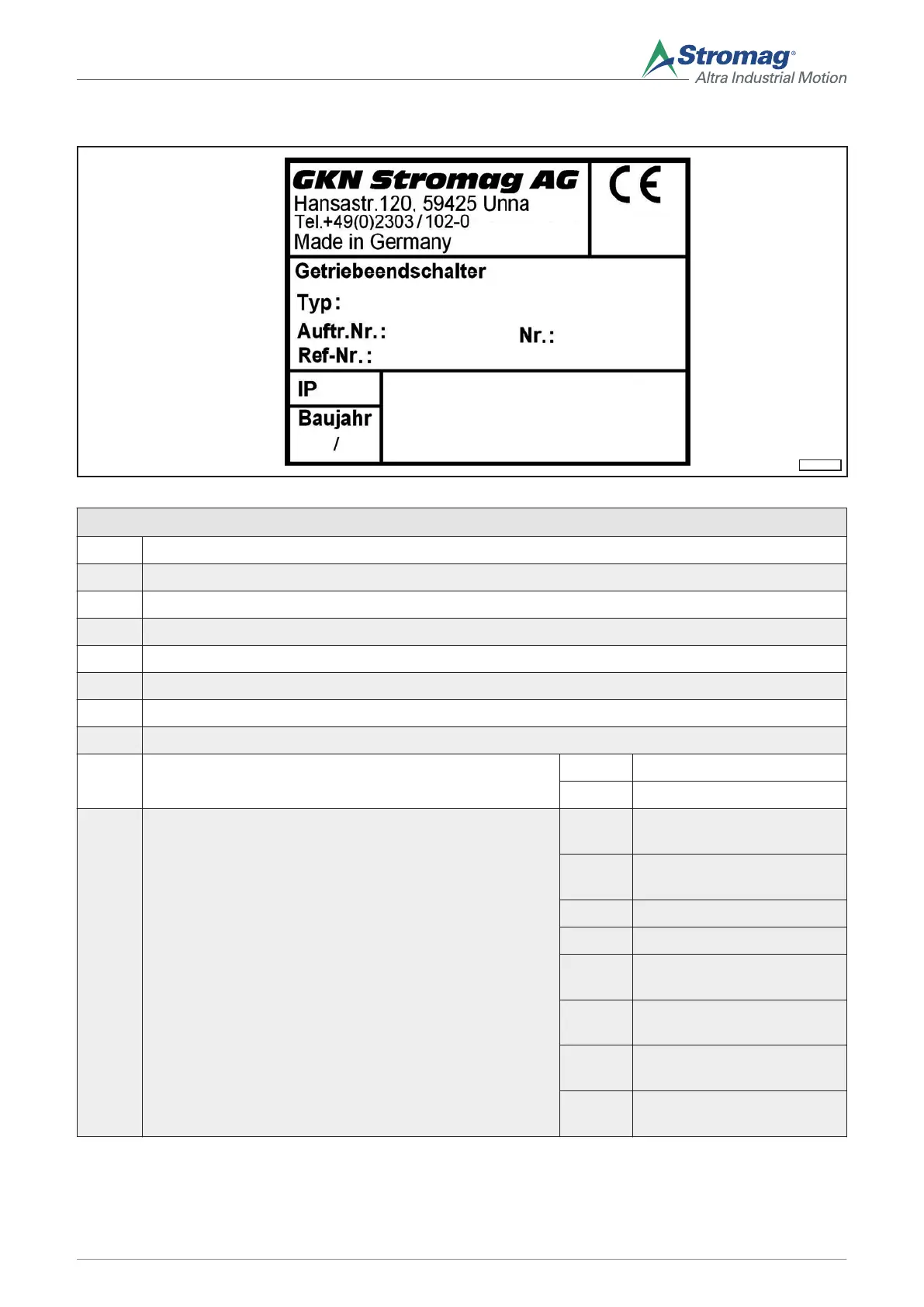

4.1.6 Type code
155_HGE_590_BFV_50_A1R
EKM-0128
Fig. 3
Example: 155 HGE 5 90 B F V 50 A1R
155 Nominal revolutions, see section 4.1.2.
HGE Switch type
5 Number of fitted contacts
90 Type of fitted contacts, see section 4.1.4.
B Block adjustment (only for cam discs Ø 70 mm)
D Doubled (fine adjustment)
F Fine adjustment
V Adjustability of the switching points
50
Diameter of the installed cam disc 50 not for block adjustment
70 not for contact 52, 53
A1R
Switch size A1R Contact space 1 to 5, right
(standard)
A2R Contact space 2 to 8, right
(standard)
A1L Contact space 1 to 5, left
A2L Contact space 2 to 8, left
B11 Contact space 5 to 11, both
sides
B22 Contact space 8 to 22, both
sides
B12 Contact space 1 to 5, left /
contact space 2 to 8, right
B21 Contact space 2 to 8, left /
contact space 1 to 5, right
17
Mounting/operating instructions Gear limit switch Type series HGE • No. 152-00000 F • 10/2017
