Strong SRT 4922A - Rear Panel

8
4. Controls/Functions
4.2 Rear Panel
NO Name Connector Function
❶
LNB INPUT IEC 169-24 FEMALE IF input from LNB to digital tuner
❷
LOOP OUT IEC 169-24 FEMALE IF loop-through output from digital tuner
❸
VIDEO RCA cinch Composite video output
❹
AUDIO L RCA cinch Left audio output
❺
AUDIO R RCA cinch Right audio output
❻
S/PDIF RCA cinch Digital audio output
❼
LAN RJ-45 10/100Mbps Ethernet
❽
HDMI HDMI Digital Video/Audio Output
❾
RS-232 DB-9 Low speed serial port
❿
RF OUT UHF 21-69 IEC 169-2 MALE Output to TV
⓫
TV ANT IN IEC 169-2 FEMALE Input from terrestrial antenna

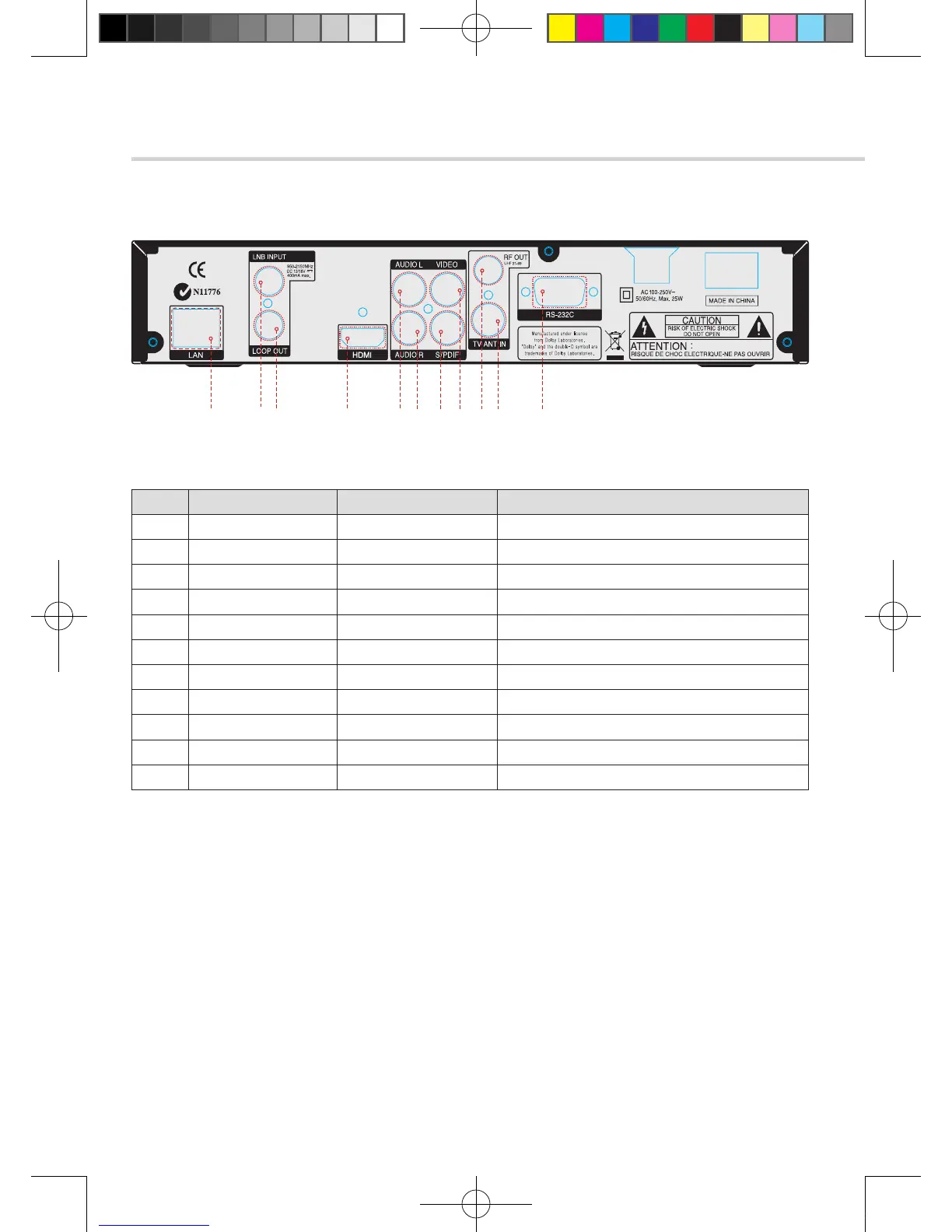

❶❷ ❽ ❾❸ ❿⓫❹ ❺ ❻❼
