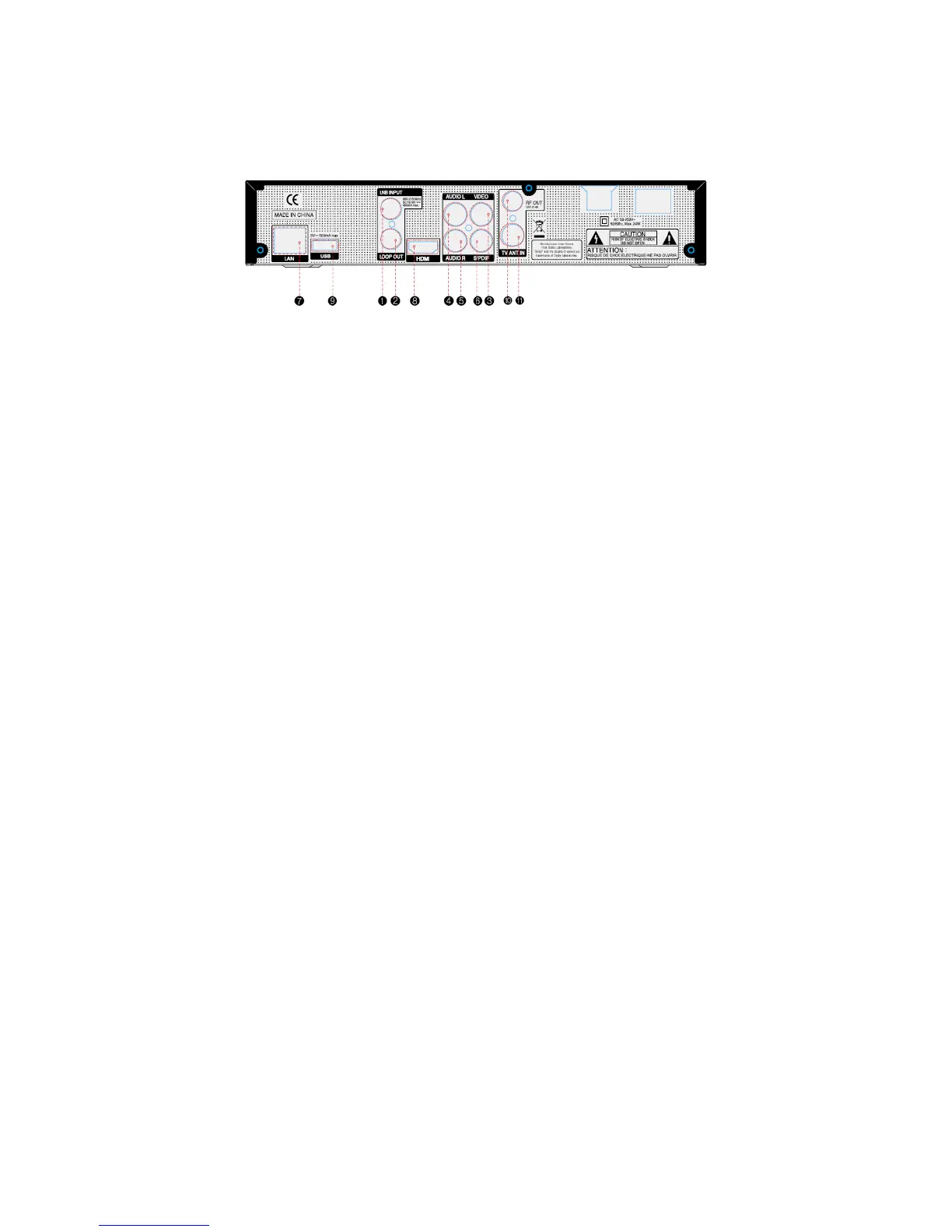

Strong SRT 4922B+ - Rear Panel

11
4. Controls/Functions
4.2 Rear Panel
Name Connector Function
❶
LNB INPUT IEC 169-24 FEMALE
IF input from LNB to
digital tuner
❷
LOOP OUT IEC 169-24 FEMALE
IF loop-
t
hrough outpu
t
from digital tuner
❸
VIDEO RCA cinch
C
omposite video outpu
t
❹
AUDIO L RCA cinch Left audio output
❺
AUDIO R RCA cinch Right audio output
❻
S/PDIF RCA cinch Digital audio output
❼
LAN RJ-45 10/100Mbps Ethernet
❽
HDMI HDMI
Digital Video/Audio
Output
❾
USB 1USB A -type USB2.0
❿
RF OUT UHF
21-69
IEC 169-2 MALE Output to TV

TV ANT IN IEC 169-2 FEMALE
I
nput from terrestria
l
antenna
