Operation
Adjusting restraint straps (Continued)

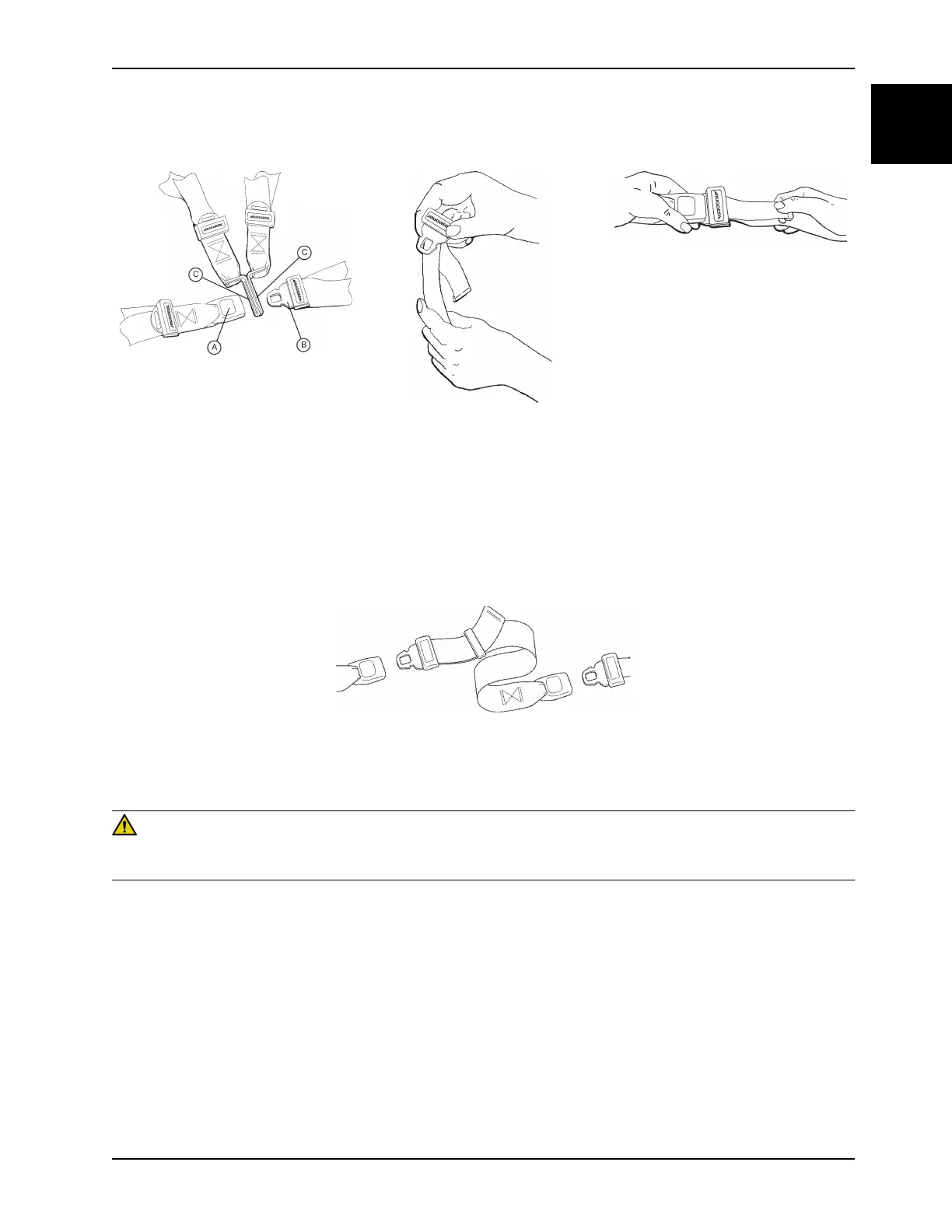

Figure 1-13: Buckle the straps
around the patient
Figure 1-14: Lengthen the restraint
strap
Figure 1-15: Shorten the restraint
strap
Adding a restraint strap extension
Add a restraint strap extension (6082-160-050) for extra length when you buckle the lap belt around larger patients.
Figure 1-16: Restraint strap extension
Securing the patient with the Pedi-Mate® infant restraint system
WARNING
Always locate the buckle away from obstructions or accessories on the cot to avoid the risk of accidental release of
Pedi-Mate® infant restraint system and injury to the infant.
To secure the patient with the Pedi-Mate® infant restraint system:
1. Remove any restraints from the cot.
2. Raise the cot backrest to the full upright position.
3. Position the Pedi-Mate® pad flat on the cot backrest with the black backrest straps facing out.
4. Wrap the straps around the cot backrest and insert the ends of the straps through the brackets.
5. Fasten the buckle.
6. Pull on the end of the adjustable backrest strap to tighten.
7. Insert the mainframe straps between the product frame and the mattress.
8. Insert the buckle behind the litter cross brace and bring it up in front of the litter cross brace.
9. Fasten the buckle around the litter cross brace. Leave slack in the strap for final adjustment.
