COMPONENT INFORMATION
2-9
AIR BAFFLES
Models 700TR, 700TC/I, 700BR Only
OPERATION
A baffle will normally be closed until the corre-
sponding zone calls for cooling.
A baffle will default to open if the corresponding
thermistor is defective or unplugged.
Generally, all baffles will be closed when the com-
pressor is off. But, if a zone is warmer than its
setpoint, and the compressor cycles off, the baffle
for that zone will remain open and the evaporator
fan will continue to run.
All baffles will be closed during defrost and the
fan delay period following a defrost.
LOCATION
MODELS 700TR, 700BR
There are two baffles attached on the left hand
side of the lower air duct, one behind each drawer.
MODEL 700TC/I
There is one baffle mount assembly located at top
left of the evaporator sump area (Figure 2-20).
MODELS 700TF/I, BF/I
These models have no baffles.
REMOVAL
MODELS 700TR, 700BR
1. Remove both drawer assemblies.
2. Now remove the lower mullion divider by
pushing up from underneath, then remove both
mullion divider supports (Figure 2-23).

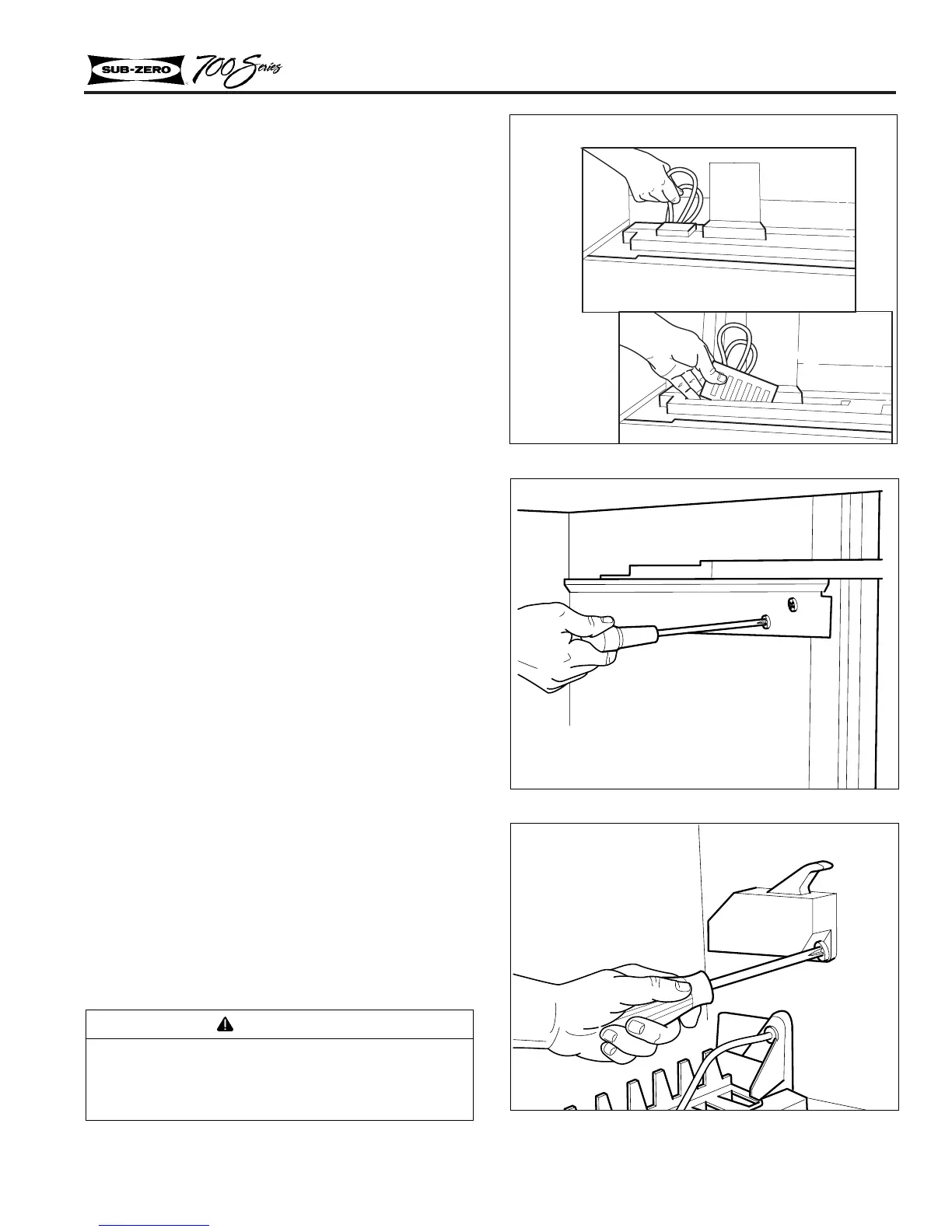

Figure 2-20. Baffle Mount Assembly
Figure 2-21. Drawer Slides
Figure 2-22. Drawer Closer
CAUTION
The top drawer in the 700BR has a control cable
that must be disconnected before drawer removal
(See Drawer Removal Instructions).
Models 700TR, 700BR
