Sub-Zero 400 Series Service & Parts Manual

COMPONENT INFORMATION
2-2
DOOR ASSEMBLY
The door assembly consists of the
• door liner
• frame
• sheet metal pan
• solid foam core.
A magnet is installed beneath the door liner at the
top of the door. As the door opens and closes, the
magnet aligns with a sensor located behind the
control panel at the top of the compartment. This
sensor activates the lights and door alarm.
The door gaskets on a 700 Series are pressed into
a retaining channel in the door liner (Figure 2-1).
There are molded grooves in the end caps of the
adjustable door shelves and dairy compartment
assembly. To position the adjustable door shelves
and dairy compartment assembly, slide the grooves
in the end caps over the knobs formed in the door
liner (Figure 2-2).
NOTE: Only models 700TC/I and 700TR come
equipped with the dairy compartment assembly.
DRAWER ASSEMBLY
General
Drawer assemblies consist of
• a drawer front liner
• drawer front frame
• drawer front sheet metal pan
• solid foam core
• coated steel drawer tub
• removable drawer divider
• electronic control panel*
* On models 700BR and 700 BF/I, the upper
drawer assembly contains the electronic control
panel.
NOTE: Freezer drawer tubs (700TC/I, 700TF/I,
700BF/I) have air vents necessary for proper air
flow, and are not interchangeable with solid refrig-
erator drawer tubs (700TR, 700BR).

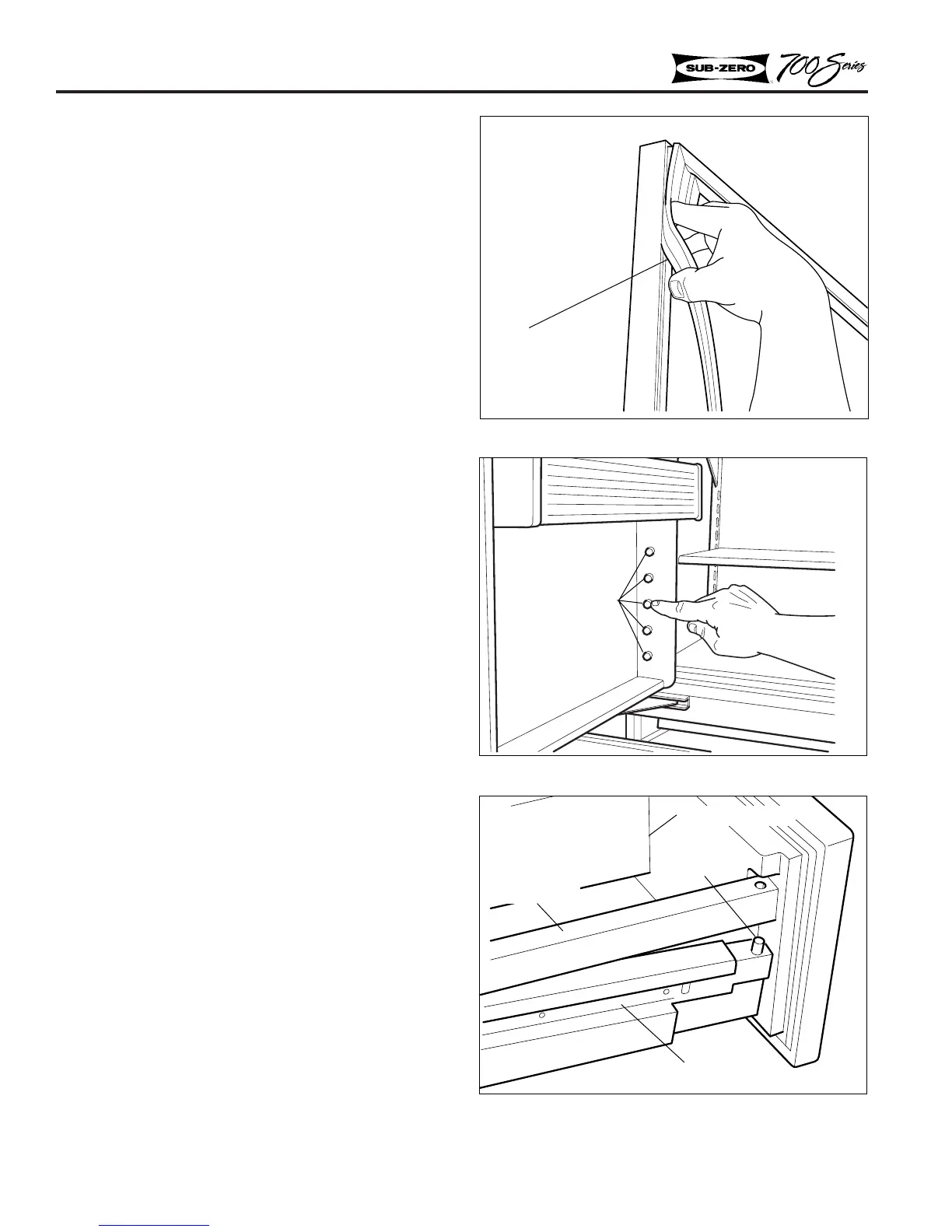

Figure 2-1. Door Gaskets
Door gaskets
Figure 2-2. Door Shelves and Dairy Compartment
Figure 2-3. Drawer Removal
Center Divider
Slide Assembly
Drawer Tub
PIn
Ladder system
