AIR FLOW
through the opening at the bottom right of the
upper drawer zone.
Air to the lower drawer zone travels up behind the
left hand side of the rear duct where the air baffle
opens and closes as needed. The air then returns
to the sump area through the evaporator cover.
Model 700BF/I (Figure 3-5)
Air travels up behind the air duct and is then
forced out at the top of the freezer zone. The air
then returns to the evaporator sump area through
the vents in the evaporator cover.
refrigerator compartment and is forced out at the
top. Air then returns through an opening at the
bottom right hand corner of the top duct, back
down behind the right side of the lower air duct, to
the evaporator sump area.
Air to the lower freezer zone travels up behind the
center of the lower air duct, between the two verti-
cal duct dividers. Air is then forced out at the top
of the freezer compartment and returns to the
evaporator sump area through the vents in the
evaporator cover.
Model 700TF/I (Figure 3-3)
Air travels up behind the lower air duct and then
behind the upper air duct where it is forced out at
the top in the upper freezer zone. The air drops to
the lower freezer zone through the mullion wall
vent between the upper and lower compartments.
Then the air returns to the evaporator sump area
through the vents in the evaporator cover.
Model 700BR (Figure 3-4)
Air to the upper drawer zone travels up behind the
left hand side of the rear duct and is forced out at
the top. Air is then returned to the sump area,

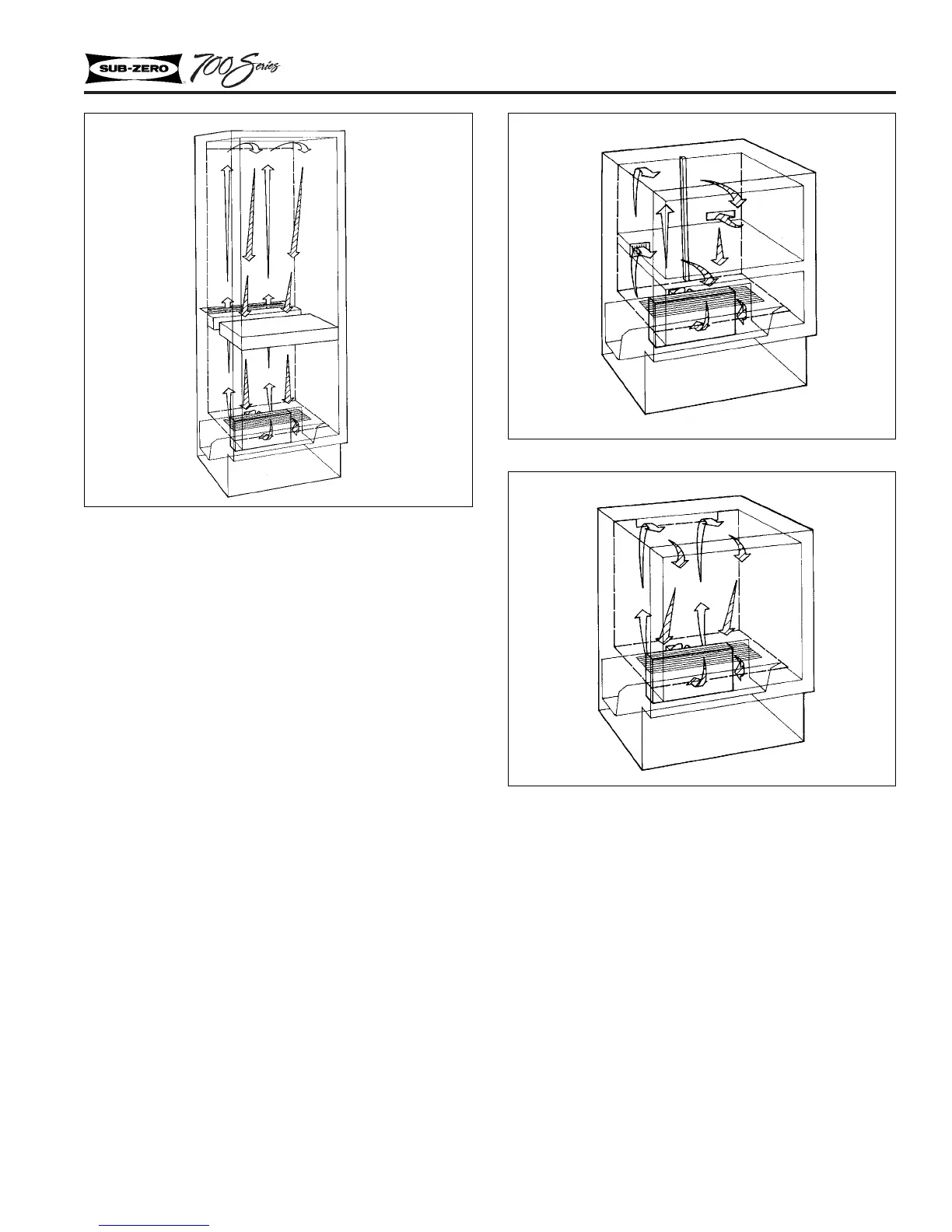

Figure 3-3. Model 700TF/I Air Flow
Figure 3-4. Model 700BR Air Flow
Figure 3-5. Model 700BF/I Air Flow
3-3
