Sub-Zero 400 Series Service & Parts Manual

WIRING DIAGRAMS & SCHEMATICS
7-7
12V
115V
MAIN BOARD
M
EVAPORATOR FAN MOTOR
L1
NEUTRAL
M
CONDENSER FAN
L1
NEUTRAL
POWER SWITCH MASTER
LIGHT LOWER DRAWER
M
PROTECTOR OVERLOAD
SWITCH ICEMAKER
FUSE THERMAL
(OPTIONAL) ICEMAKER
VALVE ICEMAKER
RELAY STARTING COMPRESSOR
COMPRESSOR
60 CYCLES 115 VOLTS
12V
LOWER DRAWER
TOP DRAWER
DOOR SWITCH
DOOR SWITCH
CABINET
DOOR SWITCH
MFG TEST WIRES
CAPACITOR RUNNING
115V
TRANSFORMER LIGHT
DISPLAY BOARD
DEFROST HEATER
TERMINATOR DEFROST
LOW VOLTAGE SCHEMATIC
THERMISTOR
EVAPORATOR
THERMISTOR
TOP DRAWER
LIGHTS CABINET
SWITCH INTERLOCK
FUSE THERMAL
LIGHT TOP DRAWER
TRANSFORMER
FILL TUBE HEATER
MAIN BOARD
DRAIN HEATER
HIGH VOLTAGE SCHEMATIC

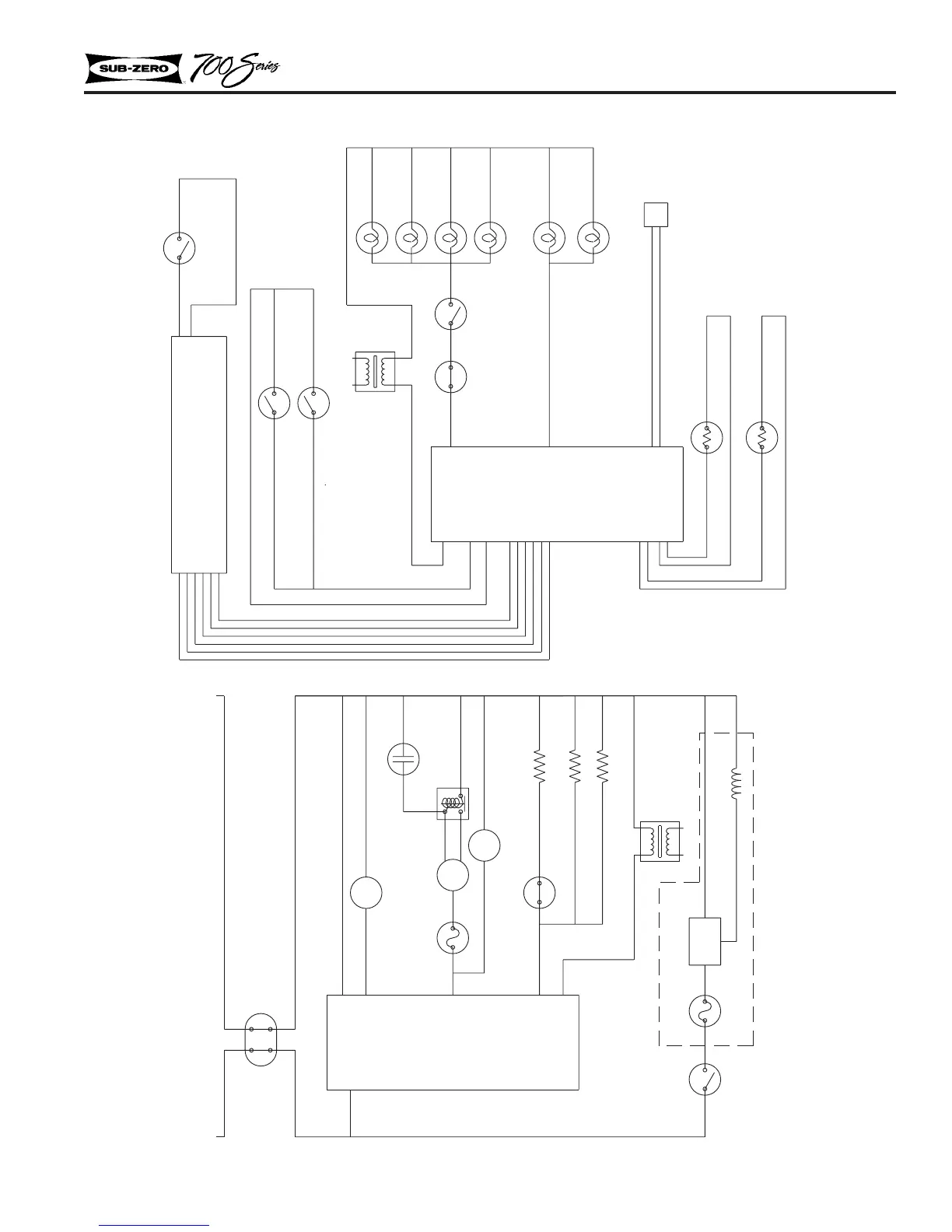

WIRING SCHEMATIC - MODEL 700TF, 700TFI
