Sub-Zero Classic Series Installation Guide

subzero.com | 3

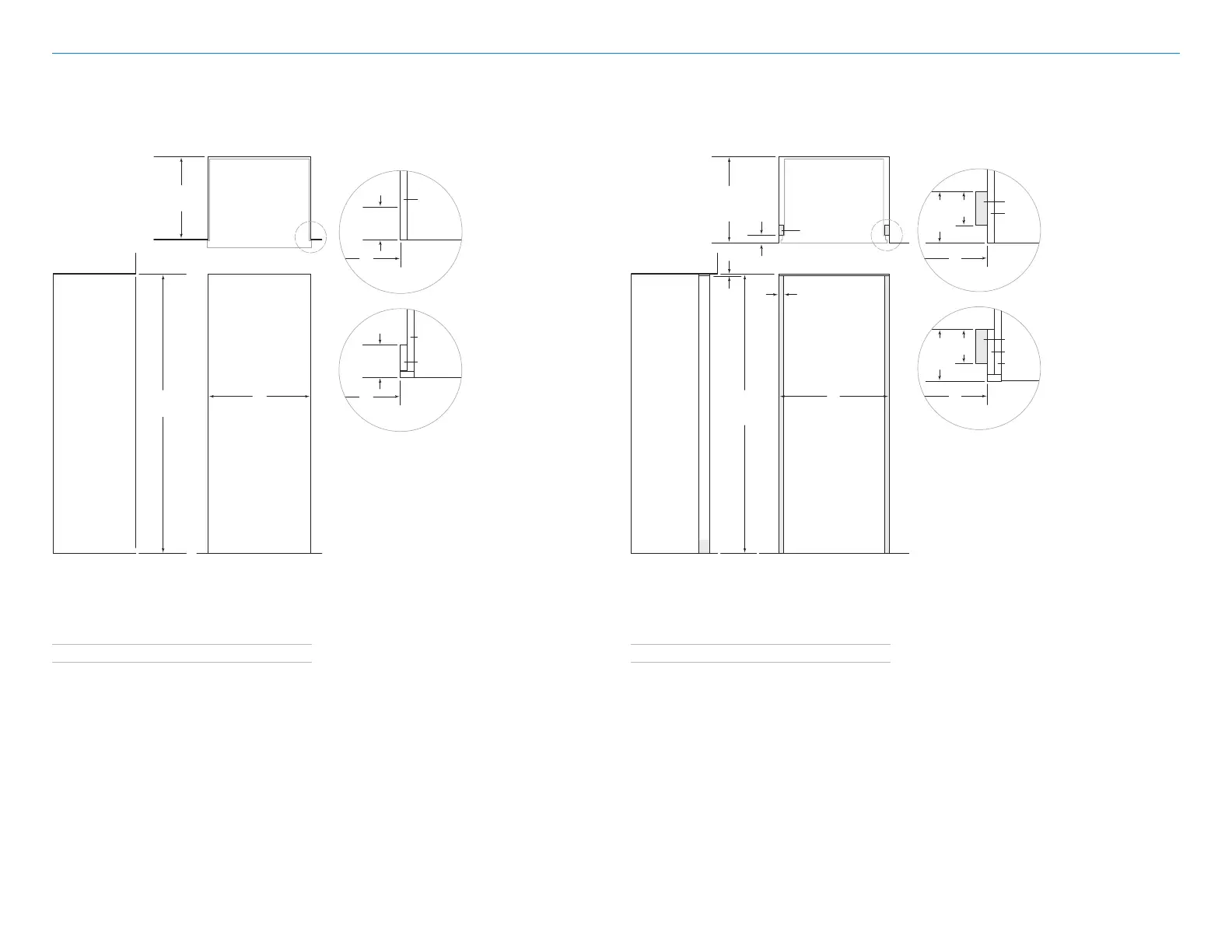

Site Preparation
Opening Dimensions
FLUSH INSET INSTALLATION
Opening Dimensions
STANDARD INSTALLATION
Dimensions assume a 19 mm panel thickness. If two units
are installed side by side, refer to page 4.
If two units are installed side by side, refer to page 4.
NOTE: 89 mm finished returns will be visible and should be finished to match cabinetry.
Shaded line represents profile of unit.
2127 mm
OPENING
HEIGHT
610 mm
OPENING
DEPTH
FRONT VIEWSIDE VIEW
TOP VIEW
W
OPENING WIDTH
19 mm
TYPICAL
FRAMED
CABINETRY
W
FILLER
89 mm
FINISHED
RETURN
FRAMELESS
CABINETRY
W
19 mm
TYPICAL
89 mm
FINISHED
RETURN
OPENING WIDTH W
Model ICBCL3050W 749 mm
FLUSH INSET WIDTH W
Model ICBCL3050W 813 mm
2134 mm
FLUSH
INSET
HEIGHT
6 mm
665 mm
FLUSH
INSET
DEPTH
56 mm
FRONT VIEW
SIDE VIE
W
TOP VIEW
32 mm
W
FLUSH INSET WIDTH
FINISHED
CLEATS
NOTE: 89 mm finished returns and shaded areas will be visible and should be finished to match cabinetry.
Shaded line represents profile of unit with 19 mm
panel.
145
mm
FINISHED
RETURN
FILLER
FRAMED
CABINETRY
W
CLEAT
19 mm
TYPICAL
89
mm
145
mm
FINISHED
RETURN
FRAMELESS
CABINETRY
W
89
mm
CLEAT
19 mm
TYPICAL

Sub-Zero Classic Series Specifications

General

Series	Classic Series
Brand	Sub-Zero
Refrigeration Type	Dual Refrigeration
Lighting	LED
Defrost System	Automatic
Air Purification	Yes
Finish	Stainless Steel
Energy Star Certified	Yes
Width	36 inches
Height	84 inches
Configuration	Side-by-Side
Preservation System	Air Purification
Ice Maker	Yes
Door Finish	Stainless Steel
