4-20 Climate control

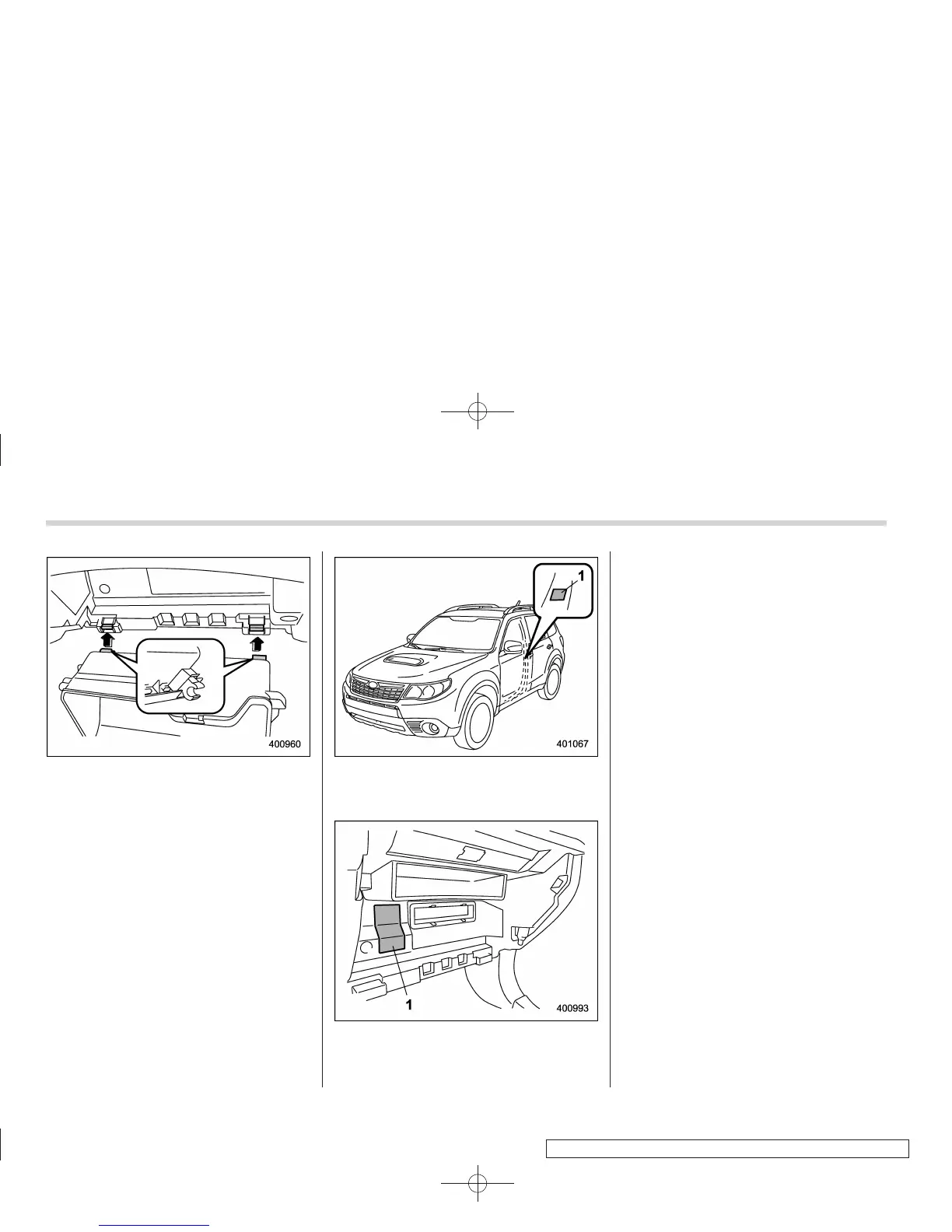

4. Reinstall the glove box, and connect
the damper shaft.
5. Close the glove box.
6. LABEL installation
(1) Fill out the information on the
service label (small).
1) Service label
(2) Attach the service label to the
driver’s side door pillar.
1) Caution label
(3) Attach the caution label next to the
air filter as shown in the illustration.
