Maintenance and service/Brake booster
Check the fluid level monthly.
Check the fluid level on the outside of the
reservoir. Because this reservoir is used
for both the brake and clutch systems and
has chambers for each system, be sure to
check the fluid level for the clutch system
at the inboard side of the reservoir
(shaded area in the illustration). If the fluid
level is below “MIN”, add t he recom-
mended clutch fluid to “MAX”.
Use only clutch fl uid from a sealed
container.
& Recommended clutch fluid
Refer to “Fluids” F12-7.
CAUTION
Never use different brands of clutch
fluid together. Also, avoid mixing
DOT 3 and DOT 4 brake fluids even if
they are the same brand.
Brake booster
If the brake booster does not operate as
described in the following, have it checked
by your SUBARU dealer.
1. With the ignition switch in the “LOCK”
(off) position, depress the brake pedal
several times, applying the same pedal
force each time. The distance the pedal
travels should not vary.
2. With the brake pedal depressed, start
the engin e. Th e pedal should move
slightly down to the floor.
3. With the brake pedal depressed, stop
the engine and keep the pedal depressed
for 30 seconds. The pedal height should
not change.
4. Start the engine again and run for
approximately one minute then turn it off.
Depress the brake pedal several times to
check the brake booster. The brake
booster operates properly if the pedal
stroke decreases with each depression.
Brake pedal
Check the brake pedal free play and
reserve distance according to the main-
tenance schedule in the “Warranty and
Maintenance Booklet”.

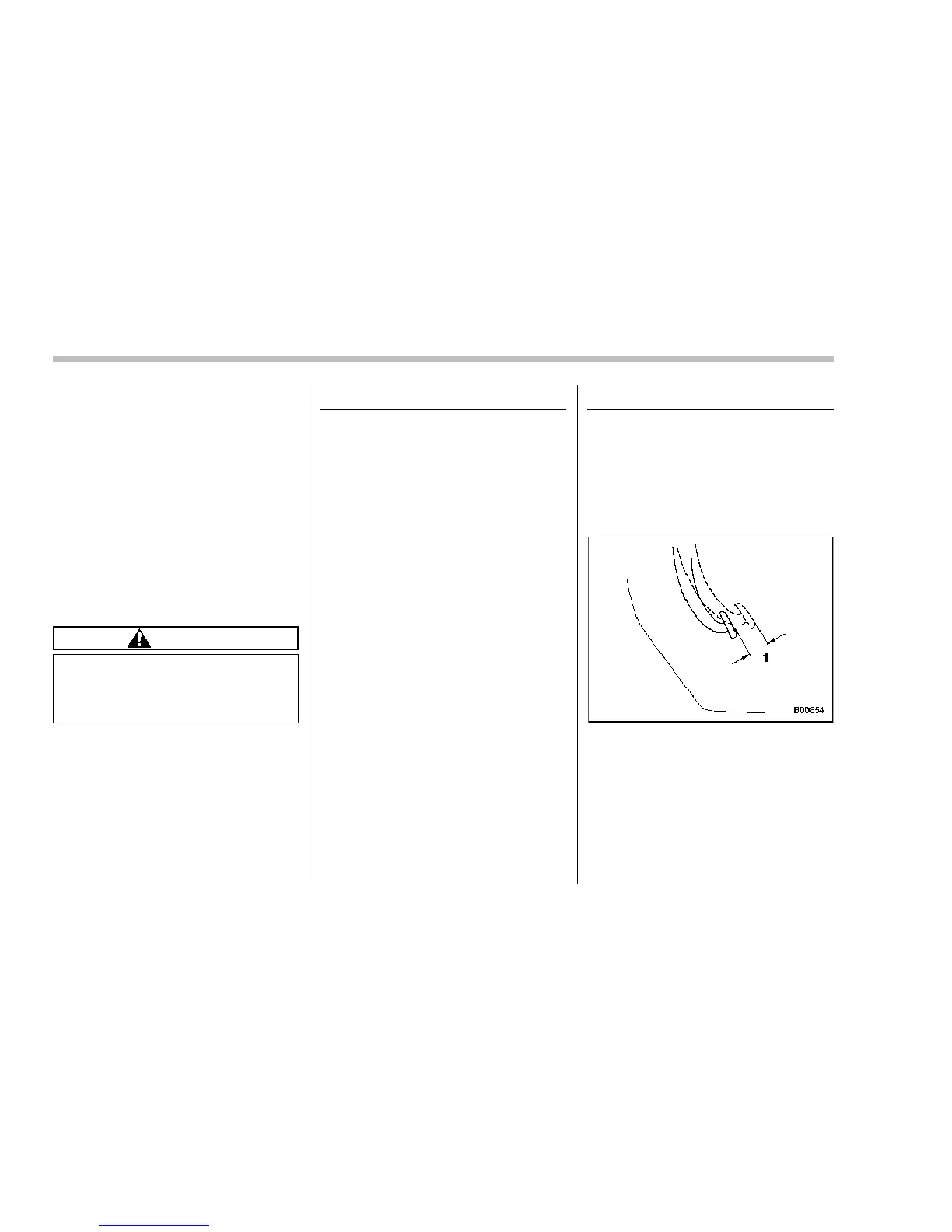

& Checking the brake pedal
free play
1) 0.02 – 0.08 in (0.5 – 2.0 mm)
Turn the ignition switch to the “LOCK” (off)
position and firmly depress the brake
pedal several times. Lightly pull the brake
pedal up with one finger to check the free
play with a force of less than 2 lbf (10 N, 1
kgf).
If the free play is not within proper
specification, contact your SUBARU deal-
