The View menu has four menu items:
• Mtr—The Motor screen displays information
about the electrical status of the motor.
• Time—The Time screen displays information
about the compressor’s operating and loading
time.
• Fan—The Fan Motor screen displays infor-
mation about the electrical status of the fan mo-
tor.
• IO—The IO Port screen displays the input and
output value.
To return to the View menu, press the Return button.
2.3.1.1 Motor screen
To access the Motor screen, at the View menu select Mtr
and press the Shift/Enter button.

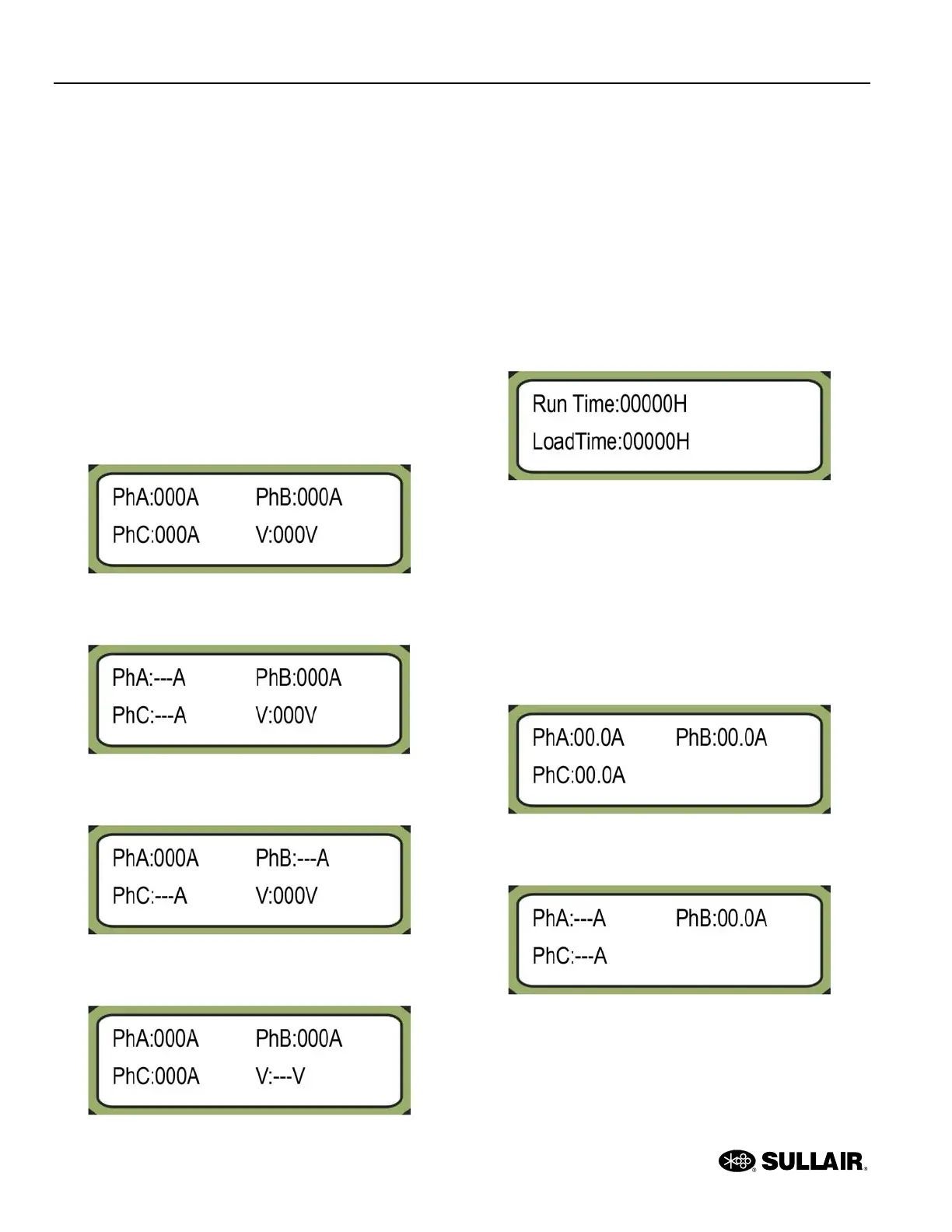

When the main motor current R function definition is not
"255", this screen displays the following:
When the main motor current T function definition is not
"255", this screen displays the following:
When the supply voltage V function definition is not "255",
this screen displays the following:
The Motor screen displays information about the electrical
status of the main motor.
• PhA:—main motor phase A current value
• PhB:—main motor phase B current value
• PhC:—main motor phase C current value
• V:—main motor power voltage value
To return to the View menu, press the Return button.
2.3.1.2 Time screen
To access the Time screen, at the View menu select
Time and press the Shift/Enter button.
The Time screen displays information about the com-
pressor’s operating and loading time.
• Run Time:—run time of the compressor
• LoadTime:—load time of the compressor
To return to the View menu, press the Return button.
2.3.1.3 Fan Motor screen
To access the Fan Motor screen, at the View menu select
Fan and press the Shift/Enter button.
When the fan motor current R function definition is not
"255", this screen displays the following:
