EC2000 Controller Operation Manual 2: Operation
88290022-798 R03 7
When the fan motor current T function definition is not
"255", this screen displays the following:

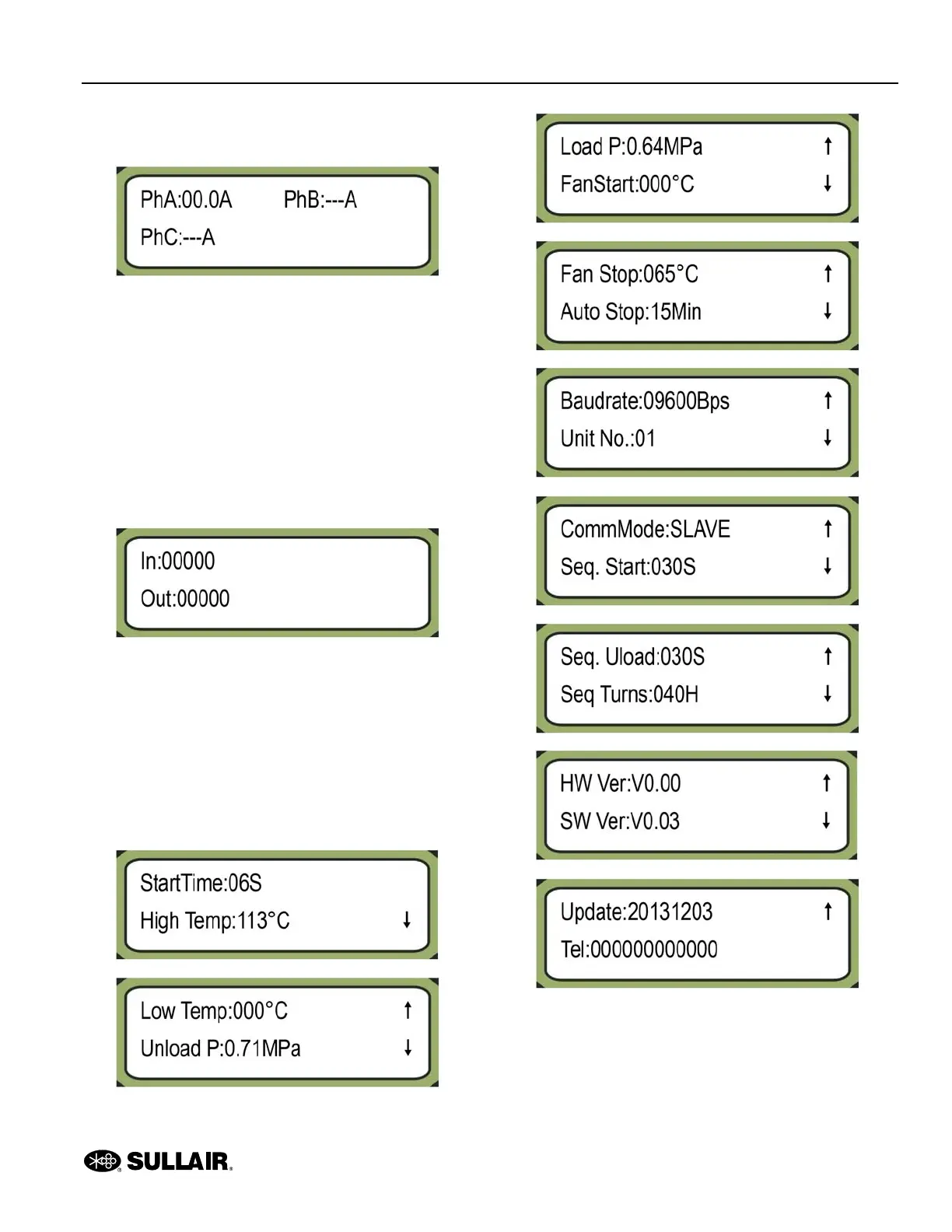

The Fan Motor screen displays information about the
electrical status of the fan motor.
• PhA:—value of fan motor phase A
• PhB:—value of fan motor phase B
• PhC:—value of fan motor phase C
To return to the View menu, press the Return button.
2.3.1.4 IO Port screen
To access the IO Port screen, at the View menu select IO
and press the Shift/Enter button.
The IO Port screen displays the input and output value.
• In—input value
• Out—output value
To return to the View menu, press the Return button.
2.3.2 System Parameter screen
To access the System Parameter screen, at the main
menu select Sys and press the Shift/Enter button.
The System Parameter screen displays the current set-
tings for the system parameters.
• StartTime:—start up time
• High Temp:—high exhaust alarm temperature
• Low Temp:—low exhaust alarm temperature
To Next Page
