Section 2
DESCRIPTION
5
2.1 INTRODUCTION
Your new Sullair flood---lubricated rotary screw air
compressor will provide you with a unique experi-
ence in improved reliability and greatly reduced
maintenance.
Compared to other types of compressors, the Sull-
air rotary screw is unique in mechanical reliability,
with “no wear” and “no inspection” required of the
working parts within the compressor unit.
Read Section 6 (Maintenance) to see how surpris-
ingly easy it is to keep your air compressor in top
operating condition.
2.2 DESCRIPTION OF COMPONENTS
Refer to Figur es 2 --- 1 a nd 2 --- 2 . The c omponents
and assemblies of the air compressor are clearly
shown. The complete package includes
compres-
sor
,
electric motor
,
starter
,
compressor inlet
system
,
compressor discharge system
,
com-
pressor lubrication and cooling system
,
capac-
ity control system
,
instrumentpanel
,
aftercooler
and a
combination separator and trap
,all
mounted on a heavy gauge steel frame.
Onair---cooled models, afandraws airoverthemo-
tor and forces it out through the combined after-
cooler and fluid cooler thereby removing the com-
pression heat from the compressed air and the
cooling fluid.
Onwater---cooled models, ashell and tube heat ex-
changer is mounted on the compressor frame.
Fluid is piped into the heat exchanger where com-
pression heat is removed from the fluid. Another
similar heat exchanger cools the compressed air.
Both air---cooled and water---cooled versions have
easily accessible items such as the fluid filter and
control valves. Theinlet airfilter isalso easily acces-
sible for servicing.
2.3 SULLAIR COMPRESSOR UNIT, FUNCTIONAL
DESCRIPTION
Sullairaircompressors feature theSullair compres-
sor unit, a single---stage, positive displacement,
flood lubricated---type compressor. This unit pro-

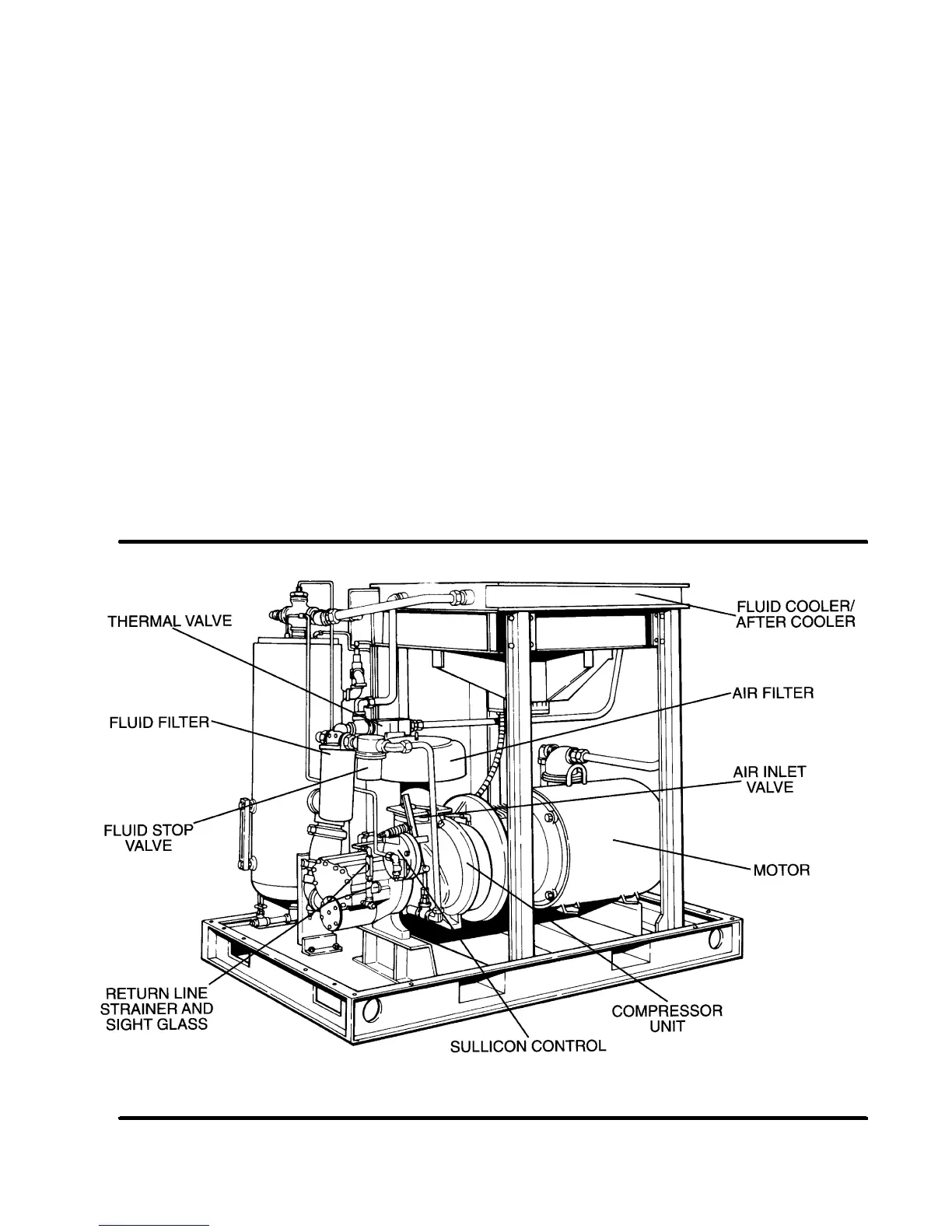

Figure 2---1 Sullair Rotary Screw Air Compressor
