Summit TX25H - Operator Seat Adjustments

INSTRUMENTS & CONTROLS
Ÿ Make sure that the seat is completely secured
after each adjustment.
Ÿ Do not allow any person other than the
operator to ride on the tractor.
Ÿ Do not use the seat belt if the tractor is not
equipped with ROPS.
To avoid personal injury
Ÿ Always use the seat belt when the ROPS is
installed.
Ÿ Make adjustments to the seat only while the
tractor is stopped.
While seated, adjust the weight of operator with weight
adjustment knob provided at back side of seat so as to be
comfortable driving & to minimize vibrations.
With the & f adjusting knob, slide the seat so as to have a to ro
comfortable approach towards all levers. The effort range of
that can be adjusted while sitting on seat is 110.2 - 264.5 lbf
[50-120 kgf]

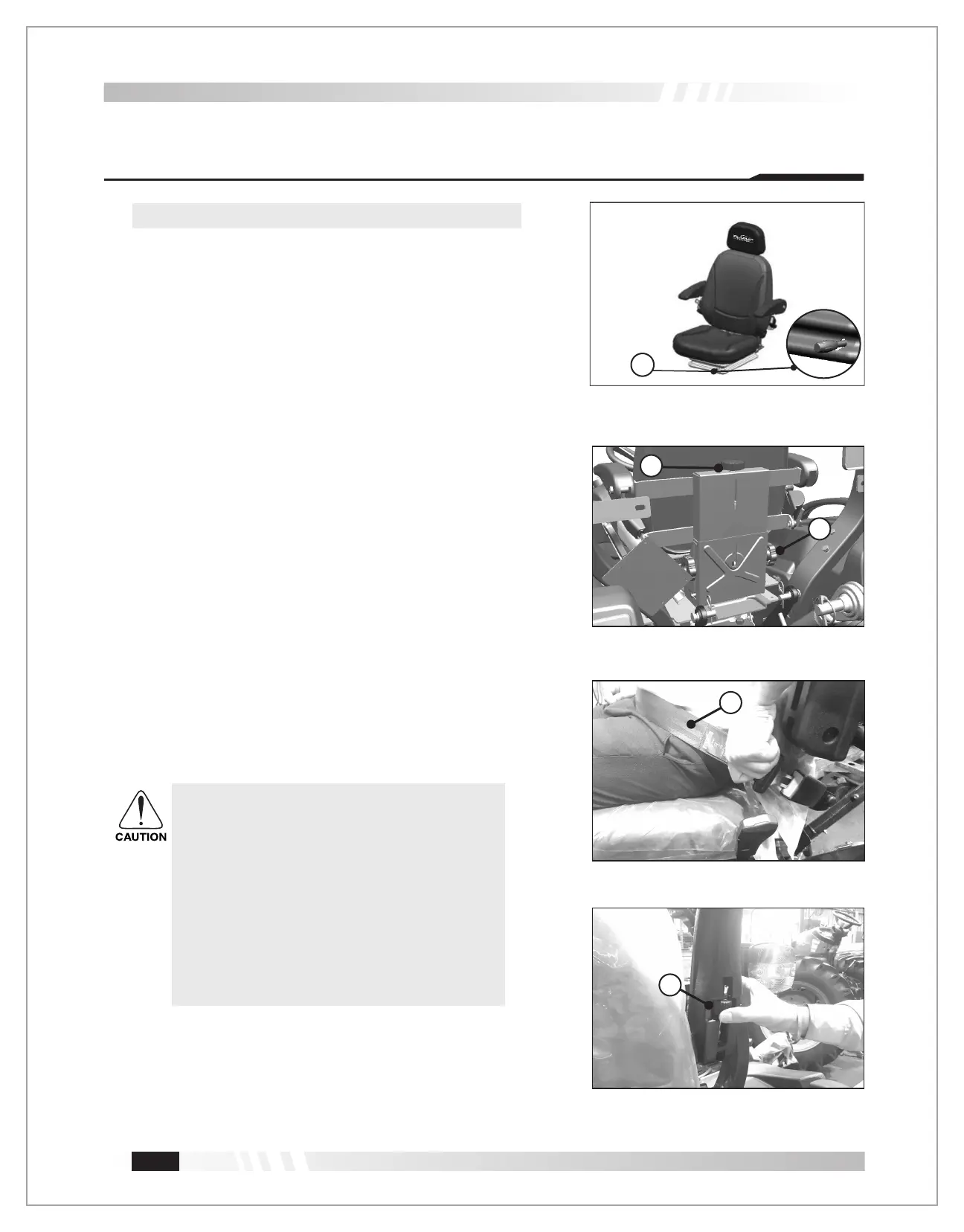

Driver’s Seat
Ÿ Lift the lever (1) to move the seat forward and backward.
Horizontal Adjustment
Vertical Adjustment
Ÿ Use knob (3) to adjust the height of the seat vertically.
Ÿ Use knob (2) to adjust the suspension.
Adjustment of Arm rest inclination:
Ÿ Rotate knob (5) in counter-clockwise direction to
decrease the arm rest inclination.
Ÿ Seat belt (4) for safety.
Ÿ Rotate knob (5) in clockwise direction to increase the arm
rest inclination.
Ÿ Raise the arm rest in upward position.
3
2
4
5
30-13
1
