GDM-FW9010(E) 1-3

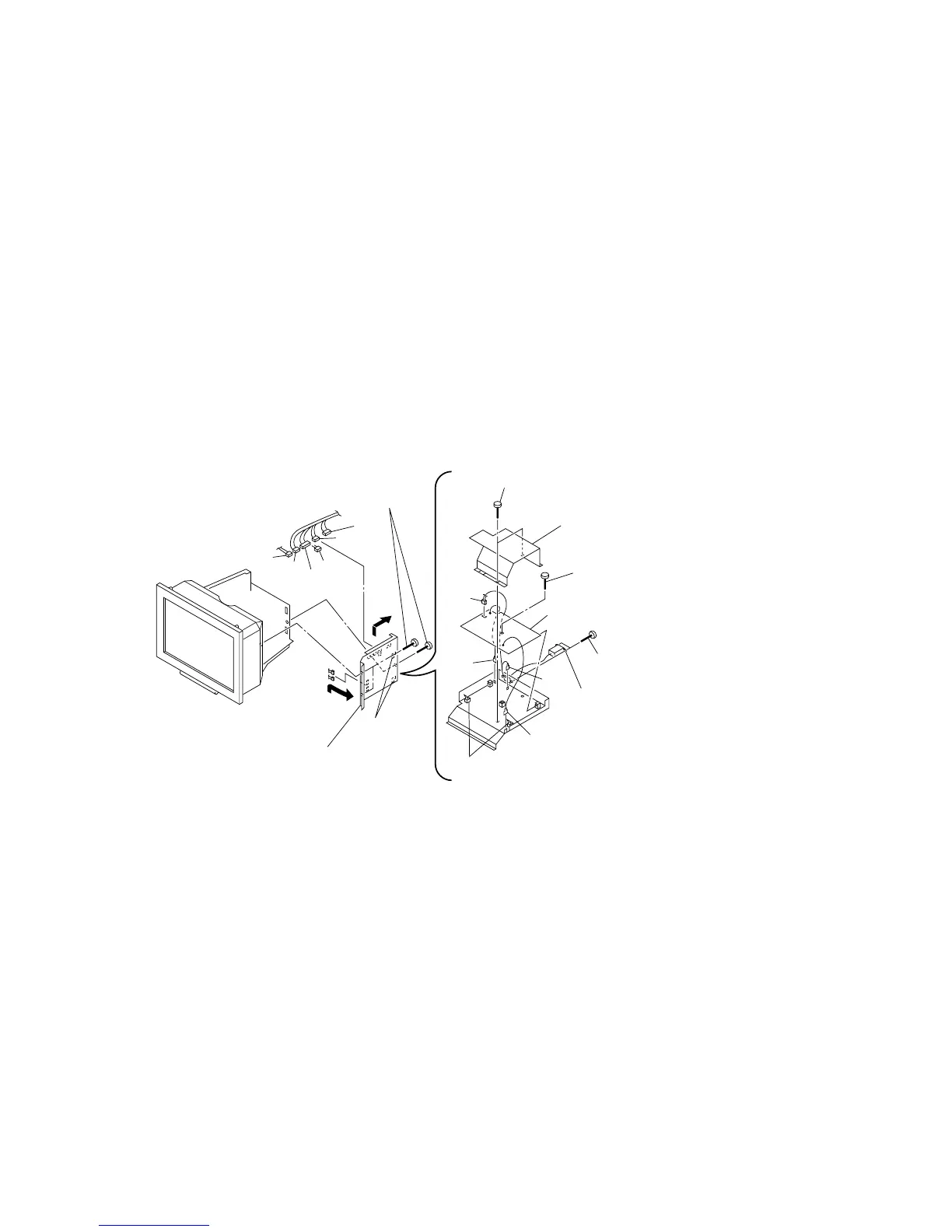

1-3. G BOARD REMOVAL
Two hooks
3 Two screws
(+BVTP 3 x 8)
4 G shield
7 G board
8 Two screws
(+ KTP 3 x 8)
1 Three screws
(+ BVTT 4 x 8)
5 Screw
(+BVTP 3 x 8)
9 AC inlet (3P)
CN654
CN653
CN652
CN655
CN601
CN603
CN650
CN651
GND
GND
CN602
GND
2 Open the G block in the direction
of the arrow A. and remove of
the arrow B.
6 Two printed circuit board holders
B
A
