GDM-FW9010(E) 5-2
REF.NO. PART NO. DESCRIPTION REMARK
1 4-077-500-21 BEZEL
2 4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
3 * 8-933-519-00 D BOARD, COMPLETE 4
4 ! 1-453-348-11 TRANSFORMER ASSY, FLYBACK
(NX-4504)
5 4-062-115-01 SCREW +P 3.5X20 TYPE2
6 * 8-933-441-00 G BOARD, COMPLETE
7 * 3-701-903-11 HOLDER, PRINTED CIRCUIT BOARD
8 4-070-730-01 HOLDER, PWB
9 ! 1-251-382-31 INLET, AC 3P(WITH NOISE FILTE)
10 4-052-345-01 SCREW, (3X8) (+K), TAPPING
11 * 8-933-442-00 S BOARD, COMPLETE
12 1-694-703-21 TERMINAL BOARD ASSY, I/O
13 4-070-122-01 SCREW (HD15)
14 * 8-933-432-00 A BOARD, COMPLETE
15 4-389-025-11 SCREW (M4) (EXT TOOTH WASHER)
16 * 4-069-570-01 SPACER, PWB
17 * 4-063-711-01 SUPPORT, HV CABLE
18 X-4038-645-1 CABINET ASSY
19 4-077-514-21 COVER, SCREW (L)
20 4-077-515-21 COVER, SCREW (R)
21 4-077-512-21 COVER, ECS
22 * 4-081-282-01 LABEL, INFORMATION
23 1-791-729-41 CABLE ASSY(13W3PDSUBCONNECTOR)
24 4-081-281-01 COVER, PIG TAIL

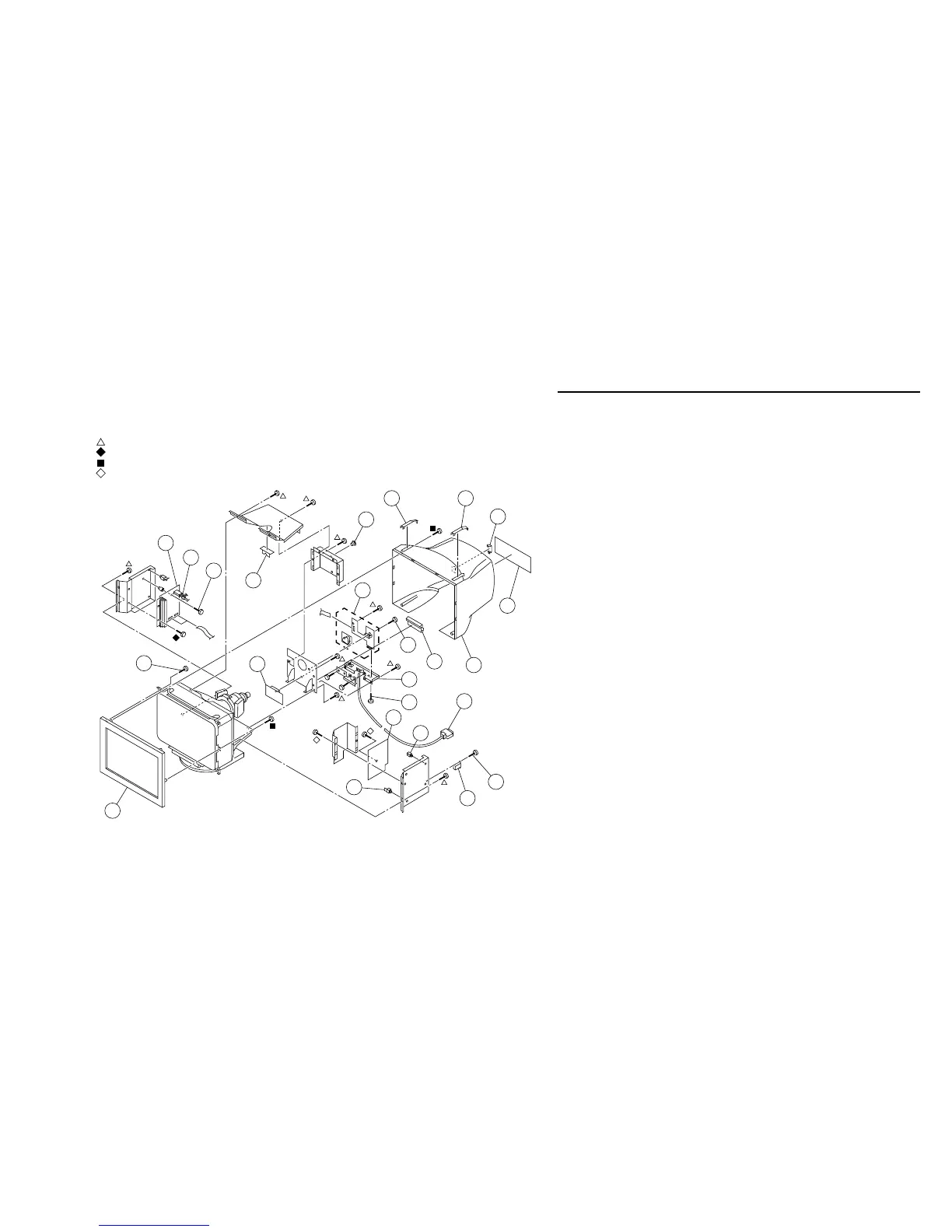

5-1. CHASSIS
1
6
12
13
14
16
15
22
21
2019
18
23
24
8
7
9
10
3
4
5
2
11
17
: 7-685-881-09 +BVTT 4x8
: 7-685-648-79 +BVTP 3x12
: 7-685-663-71 +BVTP 4x16
: 7-685-646-79 +BVTP 3x8
To Next Page
