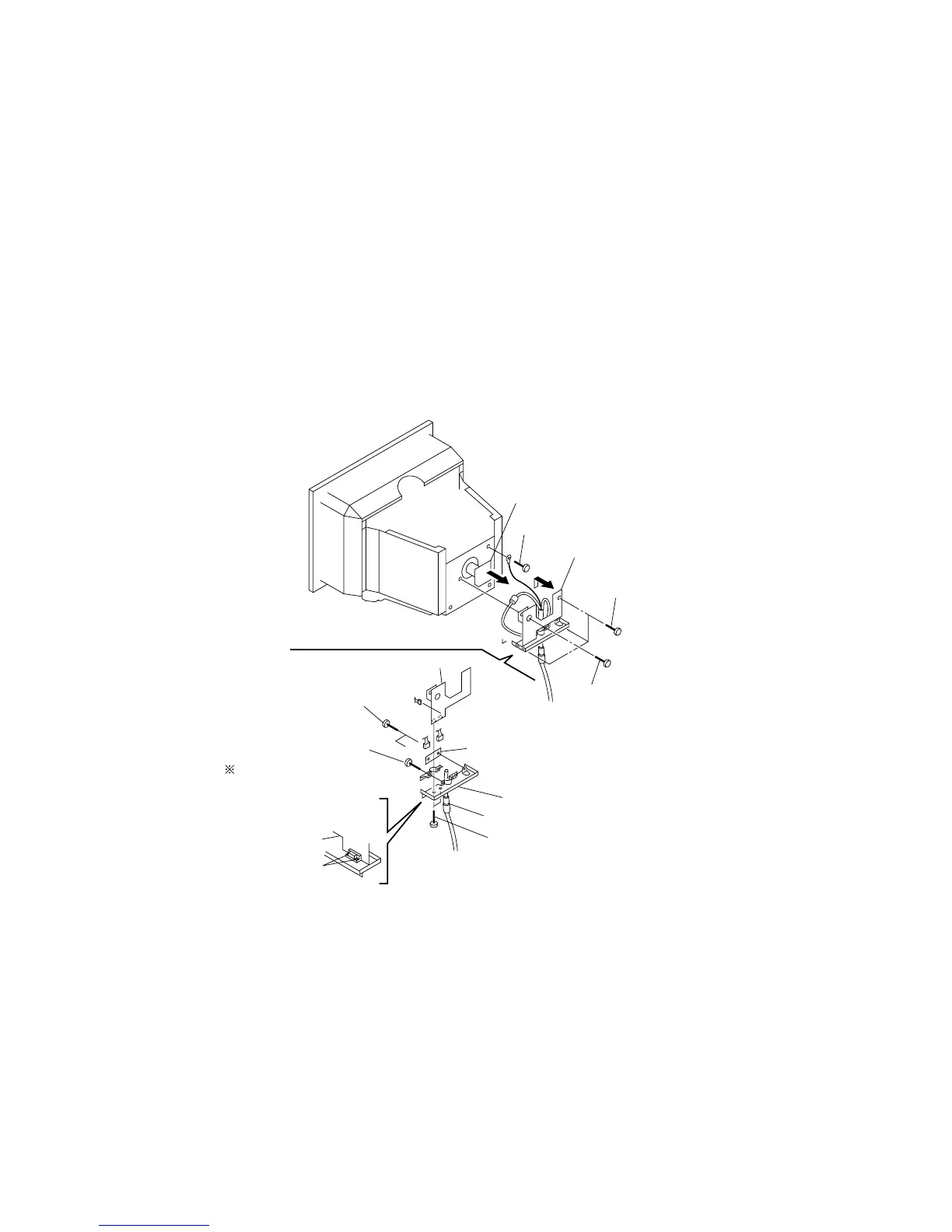

1-4. A BOARD,U BOARD AND I/O TERMINAL BOARD ASSY REMOVAL
CN902
CN901
CN402
4 A board (2/2)
2 Screw(M4)
(EXT TOOTH Washer)
1 Three screws
(+BVTT 4 x 8)
5 Two screws
(HD15)
Two screws
Two screws
6 Terminal board assembly
3 A board (1/2)
A board (1/2)
U board
Screw
Cable assy(13W3P Dsub connector)
When installing terminal
bracket,be sure to apply
screw lock on 2 spots after
screws (HD15) are fixed.
A board (1/2)
Screw lock
