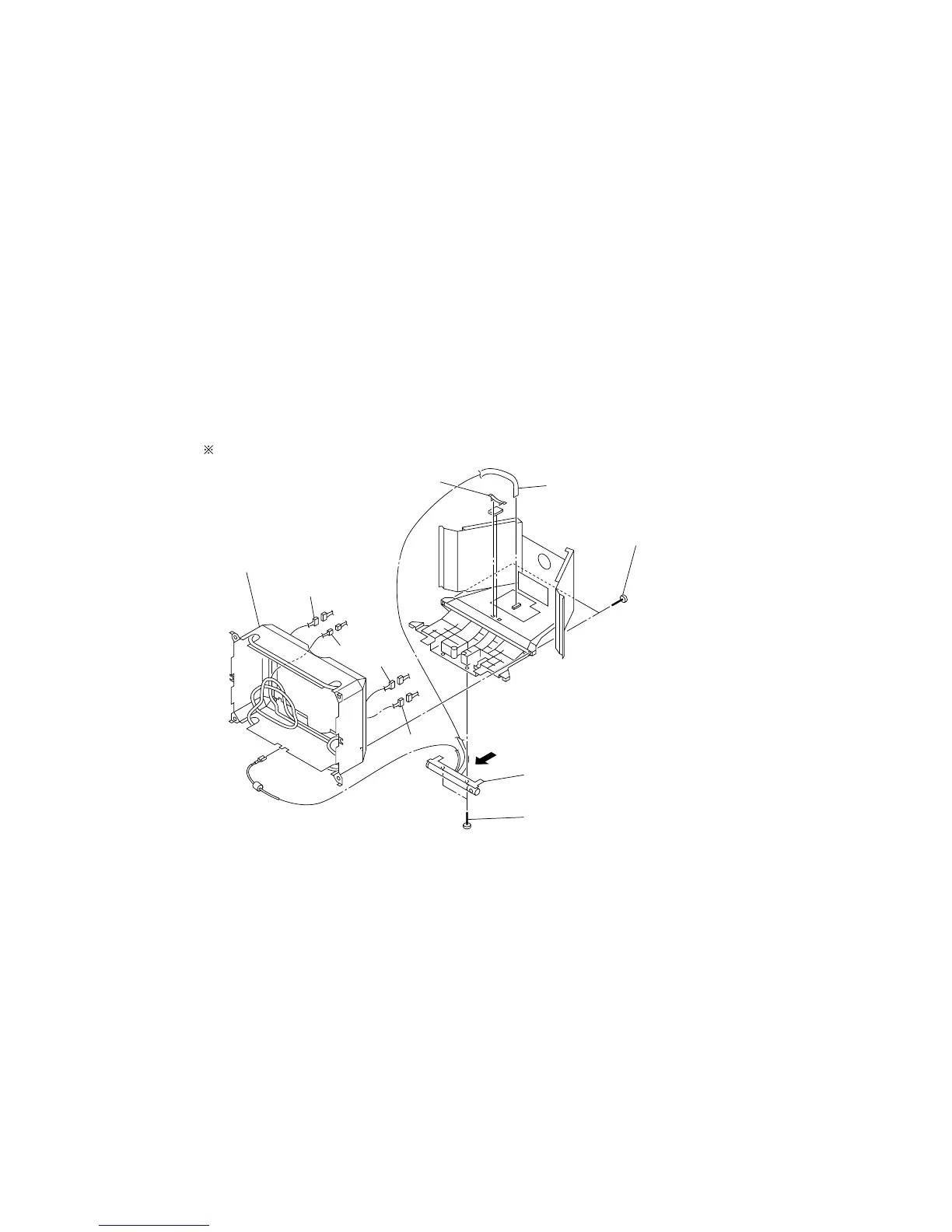

1-9. CONTROL BLOCK ASSY REMOVAL

1 Two screws

(+ BVTT 4 x 8)

3 Two screws

(+ BVTP 3 x 12)

4 Control block assembly

2 Picture tube shield

complete assembly

Connector(4P)

Connector(11P)

GND

Connector(2P)

Connector(4P)

Connector(2P)

Holder

Remove the picture tube.(Refer to 2-8.)
