GDM-FW9010(E) 1-1

SECTION 1

DISASSEMBLY

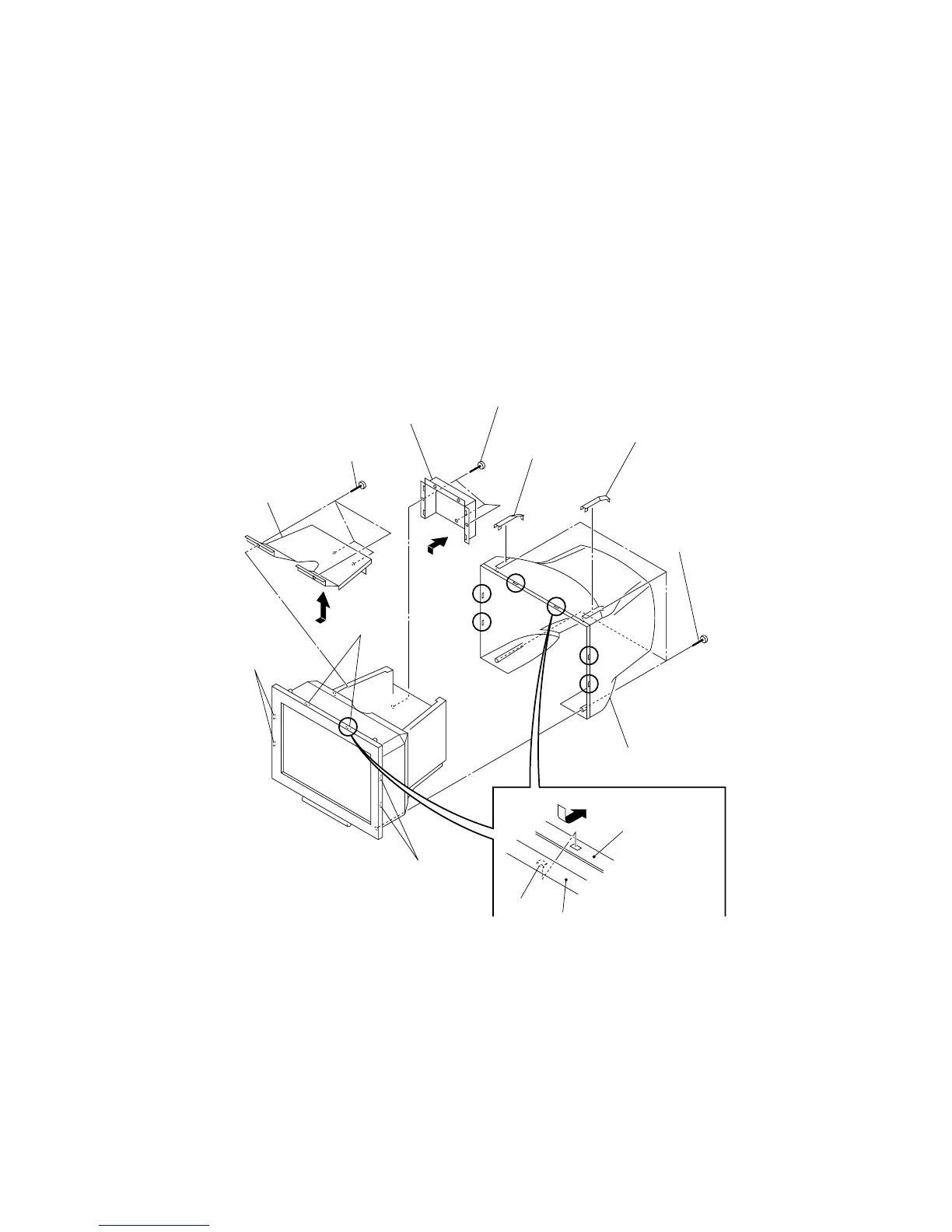

1-1. CABINET ASSEMBLY REMOVAL

1 Screw cover(L)

0 Video shield assembly

8 Top cover

6 Cabinet assembly

4 Two claws

5 Two claws

2 Screw cover(R)

3 Four screws

(+ BVTP 4 x 16)

7 Four screws

(+ BVTT 4 x 8)

9 Three screws

(+ BVTT 4 x 8)

Claw

Bezel

Knock lightly cabinet

assembly in the

direction of arrow A.
