Sun Microsystems GDM-FW9010 - Picture Tube

GDM-FW9010(E) 5-3
REF.NO. PART NO. DESCRIPTION REMARK

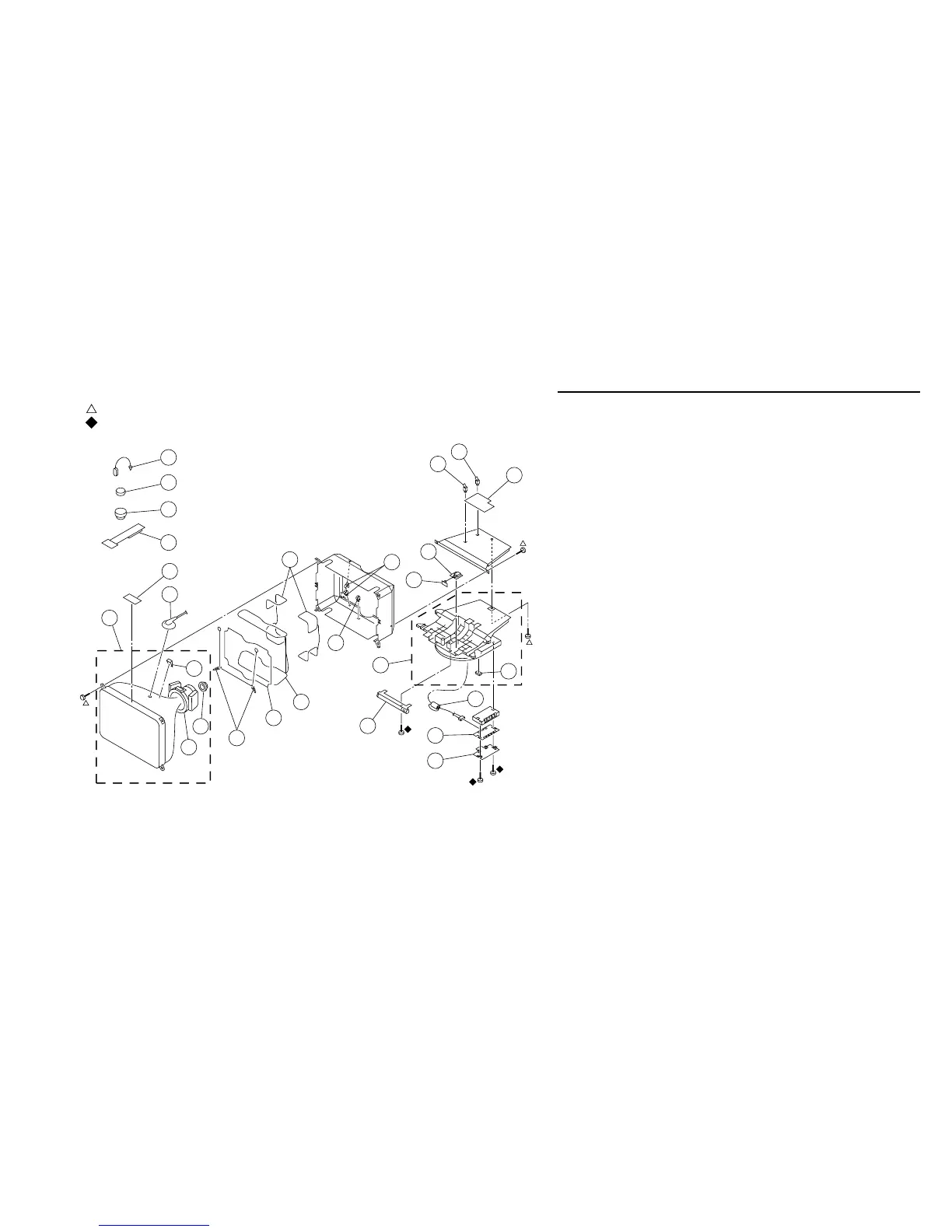

5-2. PICTURE TUBE
51 ! 8-733-007-61 ITC ASSY (24TXF-R1) 52-54
52 2-162-100-21 SPACER, DY
53 ! 1-451-522-31 NECK ASSY (NA-2917)
54 ! 1-451-523-11 DEFLECTION YOKE (Y24TXN-T)
55 * 4-047-316-01 SPRING, EXTENSION
56 ! 1-419-675-11 COIL, ROTATION
57 ! 1-419-673-11 COIL, DEGAUSSING
58 ! 1-419-674-11 COIL, LANDING CORRECTION
59 * 8-933-493-00 N BOARD, COMPLETE
60 4-070-730-01 HOLDER, PWB
61 * 4-321-929-00 HOLDER, PC BOARD
62 X-4038-644-1 STAND ASSY 63
63 * 4-061-996-01 CUSHION
64 * 8-933-396-00 J BOARD, COMPLETE
65 * 4-394-972-21 CAP, POWER
66 * 8-933-456-00 US BOARD, COMPLETE
67 4-072-376-01 COVER, STAND
68 * 1-543-830-11 CLAMP, SLEEVE FERRITE
69 * 8-933-492-00 BLOCK ASSY, CONTROL (H BOARD)
70 4-041-021-02 HOLDER, DEGAUSE COIL
71 4-071-175-01 HOLDER, DGC
72 4-308-870-00 CLIP, LEAD WIRE
73 1-452-032-00 MAGNET, DISK; 10mmf
74 1-452-094-00 MAGNET, ROTATABLE DISK; 15mmf
75 4-051-736-21 PIECE A(90), CONV. CORRECT
76 4-036-700-01 SHEET, PROTECTION
72
73
74
75
76
77
51
54
55
56
57
69
71
68
66
67
63
62
64
65
59
60
61
58
52
53
70
: 7-685-881-09 +BVTT 4x8
: 7-685-648-79 +BVTP 3x12
