GDM-FW9010(E) 4-17

NOTE:

The circuit indicated as left contains high voltage of over

600 Vp-p. Care must be paid to prevent an electric shock in

inspection or repairing.

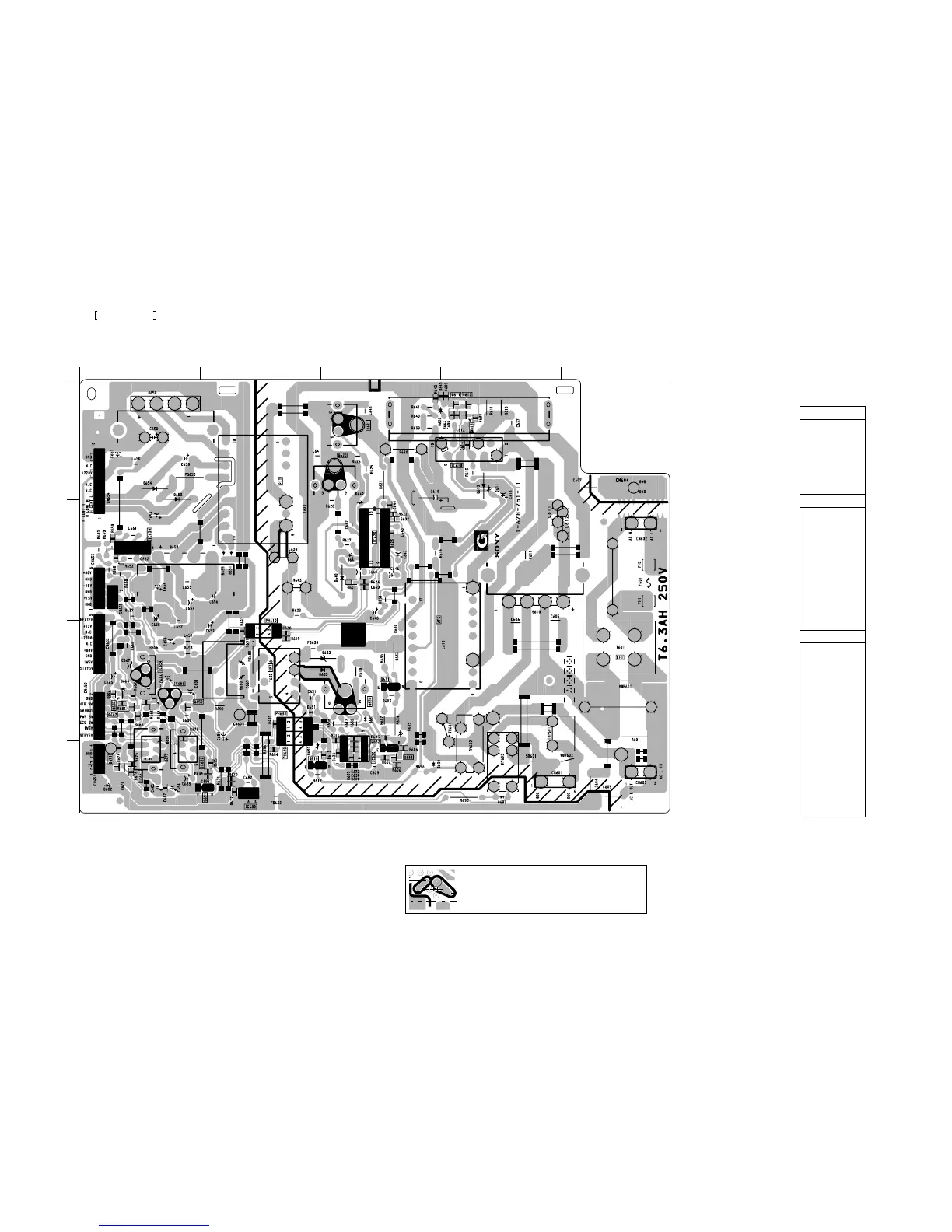

— G BOARD —

• G BOARD

SEMICONDUCTOR

LOCATION

: Refer to Terminal name of

semiconductors in silk screen

printed circuit (see page 5-12)

IC610 A-4

IC620 B-3

IC630 D-3

IC650 B-1

IC651 D-1

IC652 D-1

IC653 C-1

IC654 C-1

IC680 D-2

TRANSISTOR

Q610 D-2 –

Q611 A-4 1

Q612 A-4 1

Q613 A-4 1

Q620 A-3 –

Q621 A-3 –

Q630 C-3 –

Q631 C-3 –

Q632 D-3 –

Q633 D-3 1

Q652 C-1 1

Q653 C-1 1

Q667 C-1 1

Q671 D-1 1

Q691 D-2 –

DIODE

D601 B-3 3

D610 B-4 –

D613 A-4 –

D620 A-4 –

D630 D-2 –

D631 C-2 –

D632 C-3 –

D633 C-3 –

D635 C-3 –

D637 C-3 –

D640 B-3 –

D650 A-1 –

D651 B-2 –

D652 B-1 –

D653 A-1 –

D654 A-1 –

D655 B-2 –

D664 C-1 –

D680 C-2 –

D681 C-1 –

D682 D-1 –

D690 D-3 –

D692 D-4 –

1 234 5

POWER SUPPLY
