2 INSTALLATION
2.1 Environmental Requirements
Ambient temperature should be in range of-10 ºC－40 ºC.
Please avoid putting inverter in a high temperature and moist location.
The humidity is less than 90% and non-condensing.
Avoid sunshine directly.
Keep away from combustible, explosive material and caustic gas or
liquid.
No dust, floating fiber and metal particles.
It must be installed in a firm and no vibration location.
Keep away from electromagnetic disturbance.
If users demand any special installation, please contact us firstly.
Installation space and distance of one inverter shows as fig 2-1-A that space should be enough.
For several inverters installation, it should adopt guide clapboard to ensure better cooling
between each inverter shown as fig 2-1-B.
WARNING
1.Refer to the instr uction manua l before installa tion
3.Do not remove any cover while applyin g power
and at least 10min. after disconn ectin g power.
4.Securely ground(earth) the equipment.
2.Do not connect AC power to output terminals UVW.
and operation.
!
Fan
ventilation
Above 50mm
Above 50mm
Above 120mm
Above 120mm

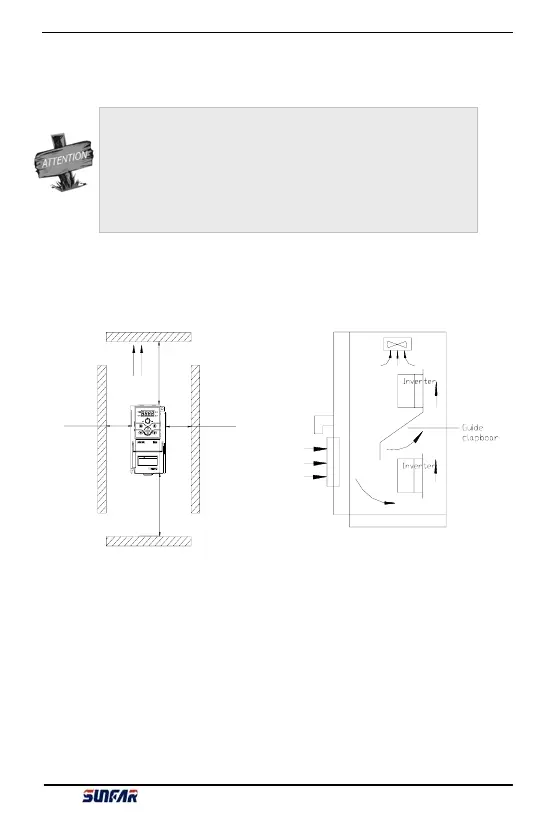

Fig 2-1-A Installation space distance Fig 2-1-B Installation for several inverters
E300 Series Mini-type Integrated Universal Inverter Manual
