10 SUNFAR E300 SERIES

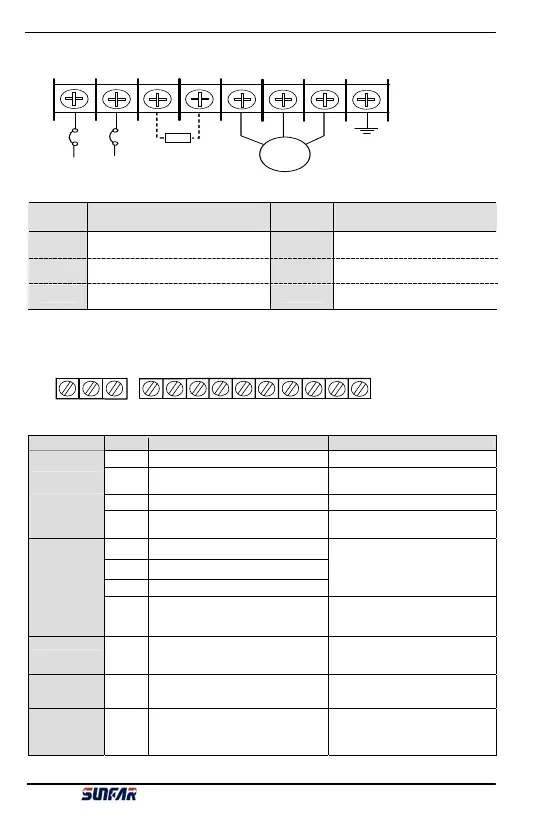

（2）Type Ⅱ（Suitable model: E300-2S0002(B)～E300-2S0022(B)）：
Motor
A
C 220V power
supply input
Braking
res isto r
GND
L1
L2
PB
PP U EW
V
Terminal description：
Terminal Function Terminal Function
PP Positive terminal of DC negative PB
Braking resistor can be
connected between PP and PB.
L1、L2
Connect 1PH AC 220V power
supply
U、V、W
Connect 3PH AC 220V motor
E GND
3.5 Wiring of Control Loop Terminal
（1）Control loop terminal:
FWDTA TB
X3 CM
A
I 10V
24V
A
OX2
TC
OC
X1
（2）Function description of control loop terminal:
Type Terminal Function Note
10V Provide +10V(0~20mA) power
Power supply
24V
Provide +24V(0~50mA)power（CM
terminal as this power grounding）
AI
Volt（current）signal input terminal 0~10V（0~20mA）
Analog input
CM
Public terminal of input（output）signal
10V and 24V power grounding）
X1 Multi-function input terminal 1
X2 Multi-function input terminal 2
X3 Multi-function input terminal 3
Specific function for multi-function
input terminals, please refer to
parameter [F1.7] ~ [F1.9] for
setting. Terminal and CM terminal
close that is valid.
Control terminal
FWD FWD order input terminal
FWD-CM decides running direction
when panel control mode. It’s valid
when close with CM terminal.
Analog output AO
Programmable volt signal output
terminal and external voltmeter（set by
[F1.4]）
Volt signal output 0～10V
OC
output
OC
Programmable open-circuit collector
output set by [F1.11]
Max load current 150mA, max
endurable volt 24V
Programmable
output
TA
TB
TC
Normal TA-TB close and TA-TC open
appointed function is valid; TA-TB open
and TA-TC close. Parameter [F1.12]
selects output function.
Contactor capacity: AC 250V, 1A
resistive load.
E300 Series Mini-type Integrated Universal Inverter Manual
