Braking unit action
T
DC side volt
[F2.10]
[F2.10]-50V

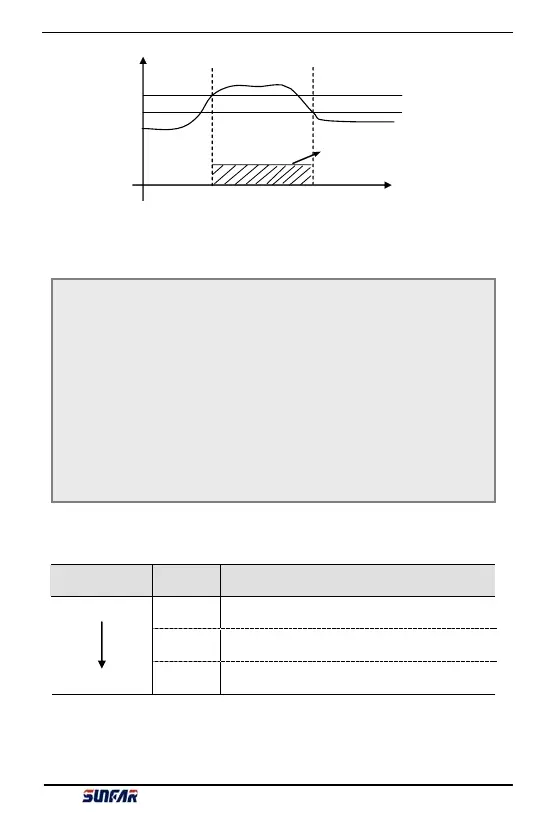

Fig 6-14 Dynamic braking
6.4 Multi-speed and advanced running parameter unit
Set output freq of terminal control multi-speed running.
E300 series freq setting priority shown as bellow:
Priority class Priority Setting freq source
1 Jog freq (jog running valid)
2 External terminals select multi-speed freq
High
Low
3 Freq setting channel selects parameter [F0.0]
F3.0 Multi-speed freq 1 Setting range：0.0 Hz ~ upper freq
F3.1 Multi-speed freq 2 Setting range：0.0 Hz ~ upper freq
F3.2 Multi-speed freq 3 Setting range：0.0 Hz ~ upper freq
F3.3 Multi-speed freq 4 Setting range：0.0 Hz ~ upper freq
F3.4 Multi-speed freq 5 Setting range：0.0 Hz ~ upper freq
F3.5 Multi-speed freq 6 Setting range：0.0 Hz ~ upper freq
F3.6 Multi-speed freq 7 Setting range：0.0 Hz ~ upper freq
Multi-speed freq priority is lower than jog freq, but higher than set channel selected freq.
