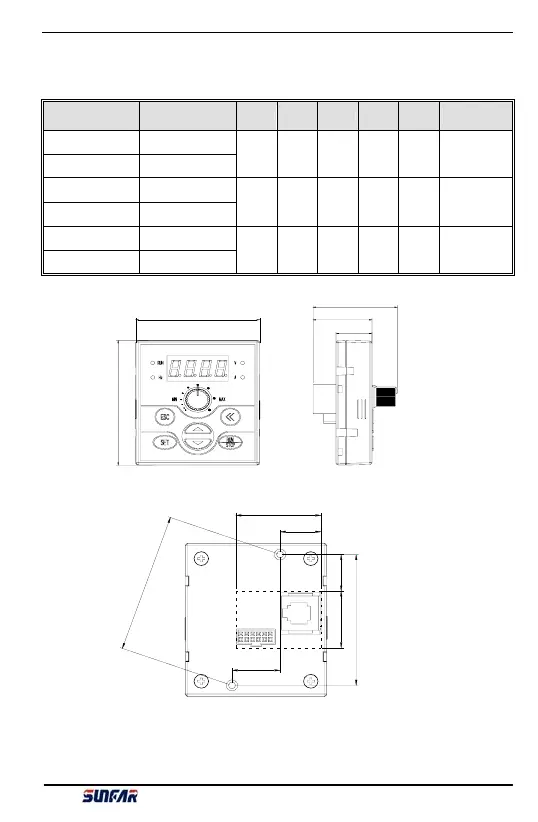

E300 series installation dimension：
Model
(3PH 380V)
Model
(1PH 220V)
W1 W H1 H D Screw spec
E300-2S0002(B)
E300-2S0004(B)
67.5 81.5 132.5 148 134.5 M4
E300-4T0007(B) E300-2S0007(B)
E300-4T0015(B) E300-2S0015(B)
86.5 101.5 147.5 165 154.5 M4
E300-4T0022(B) E300-2S0022(B)
E300-4T0037(B)
100 110 190 205 169.5 M5
2.2.2 Installation Size
When using screw M3, please pay attention to hole place in broken line and hole size.
Fig 2-2-C Small keypad installation size
60.7
68.7
28.8
41.1
17.6
Fig 2-2-D Small keypad frame installation size
6
2
.
2
58.7
20.7
16.425.5
17.6
36.7
