6 Mechanical Installation
6.1 Location Selection
This section is intended to guide the user in selecting an appropriate installation location.
IInnssttaallllaattiioonn LLooccaattiioonn RReeqquuiirreemmeennttss
• With the ingress of protection IP 20, the Logger3000 can be installed only indoors.
• Ambient temperature range: -30℃ to +60℃. The relative humidity should not exceed
95%. If otherwise, the internal components will be damaged.
• The installation environment should be free of inflammable, explosive, and corrosive
materials.
RReeqquuiirreemmeenntt ffoorr IInnssttaallllaattiioonn CClleeaarraannccee
Reserve enough clearances around the Logger3000.
Before installation, make sure the wiring terminals are at the bottom of the Logger3000
to prevent the dust or particles in the air penetrating into the device, impairing the
service life.
The installation location should be 1,500mm above the ground surface. Clearances of at
least 500mm should be reserved around the Logger3000 for ease of maintenance. The

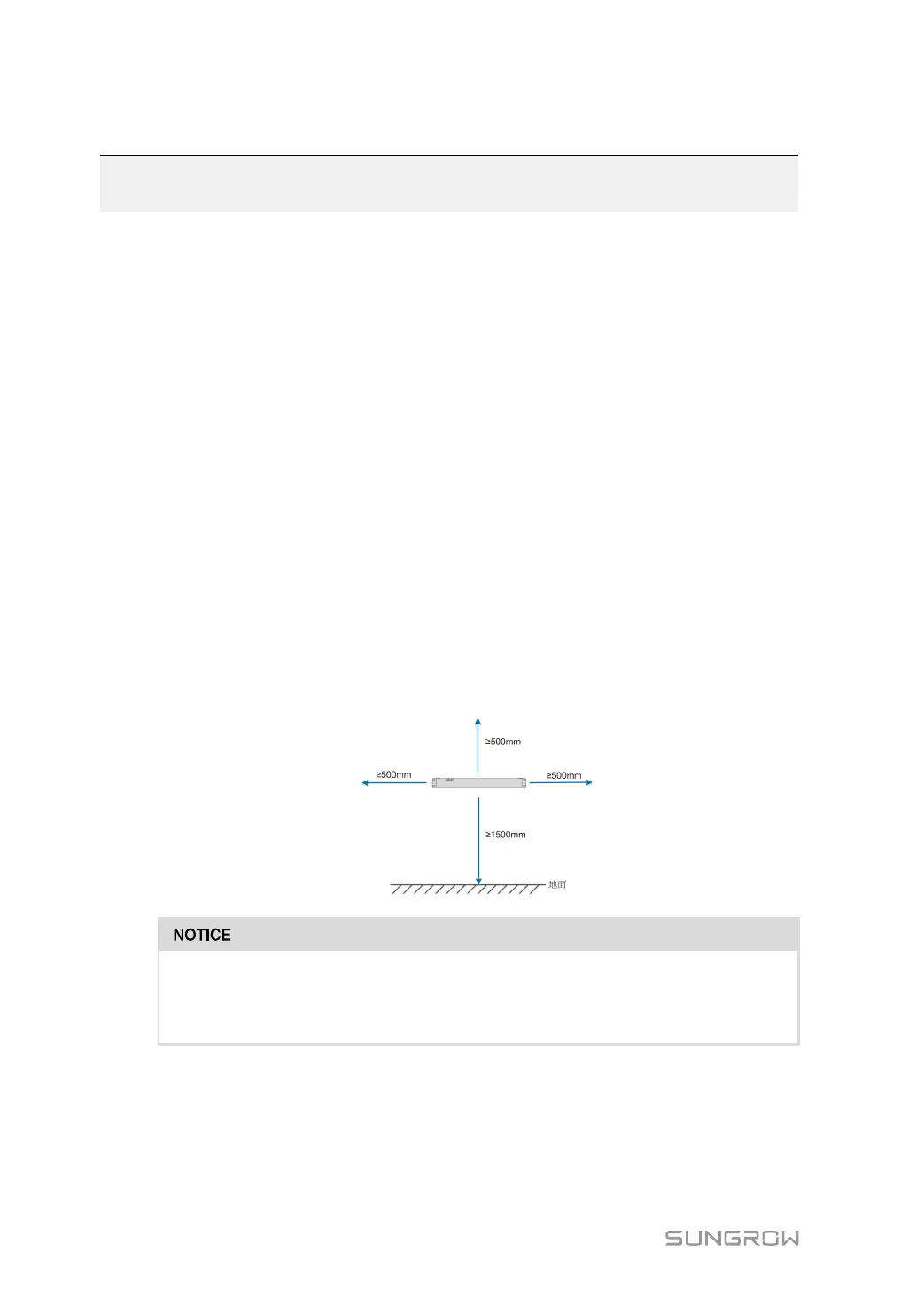

follow figure shows the requirement for minimum clearances.
When there are external devices (such as Meteo Station) connected to the
Logger3000, users should install corresponding communication SPD according
to onsite conditions.
6.2 Installation Tools
Installation tools include but are not limited to the following recommended ones. If
necessary, use other auxiliary tools on site.
