32

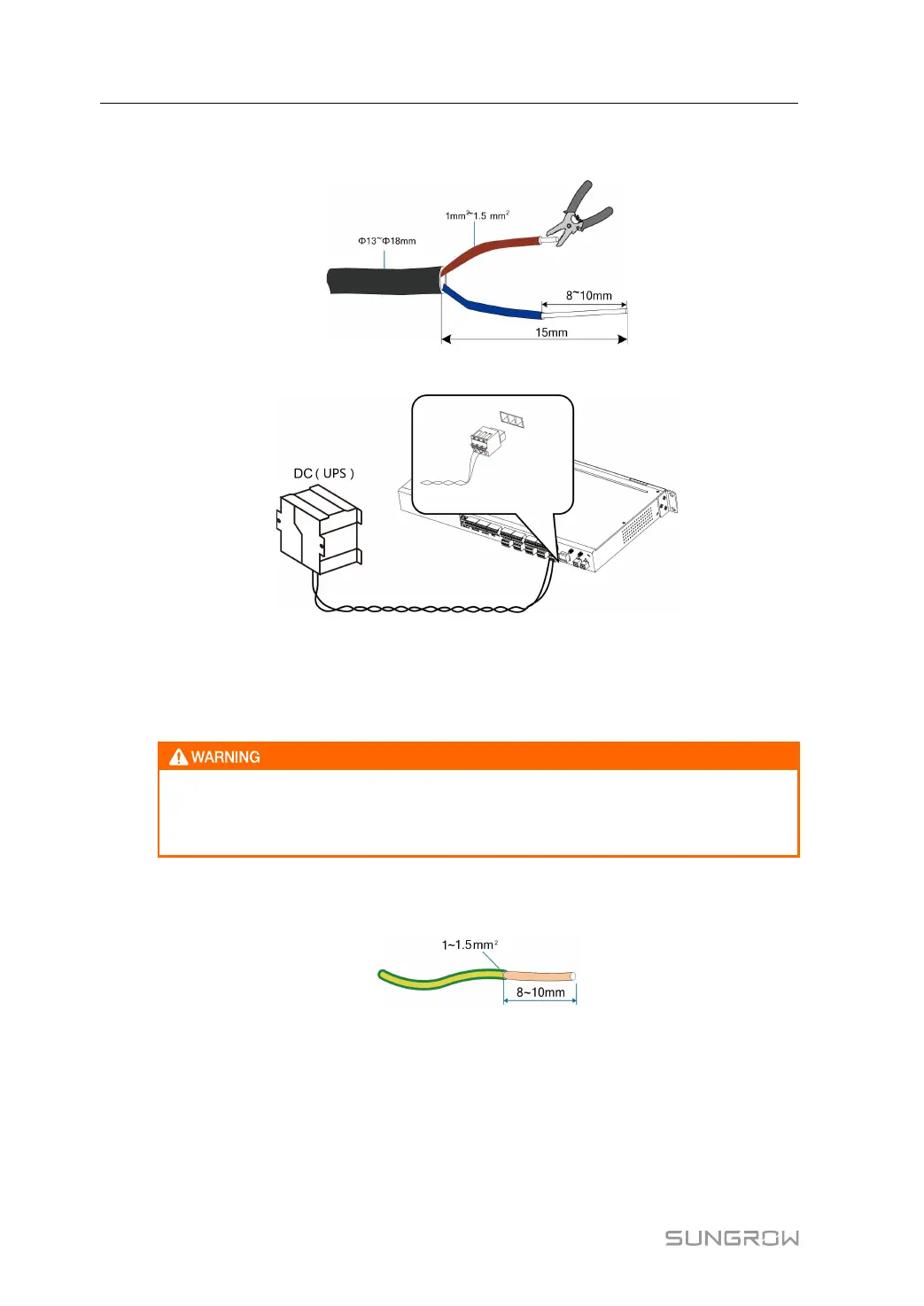

step 2 Strip the power supply cable by an appropriate length and crimp it to an euro style
terminal.
step 3 Insert the euro style terminal to the external jack "24V （+、-）" of the Logger3000.
-- -- EEnndd
7.10 Earthing Connection
The grounding cable should be grounded reliably. Otherwise,
lethal electric shock may occur in case of fault; and
the device may be damaged due to lightning.
step 1 Strip the protection layer and insulation layer of the grounding cable by specific length,
as shown in the figure below.
step 2 Crimp the stripped cable into an appropriate euro style terminal.
7 Electrical Connection User Manual
