2.2 Energy Meter Connection
The site electrician will need to calculate the CT ratio required as per the installation.
Default Modbus address is 1 and the secondary current of CT should be 5A. Please
refer Meter Selection Guide for reference.

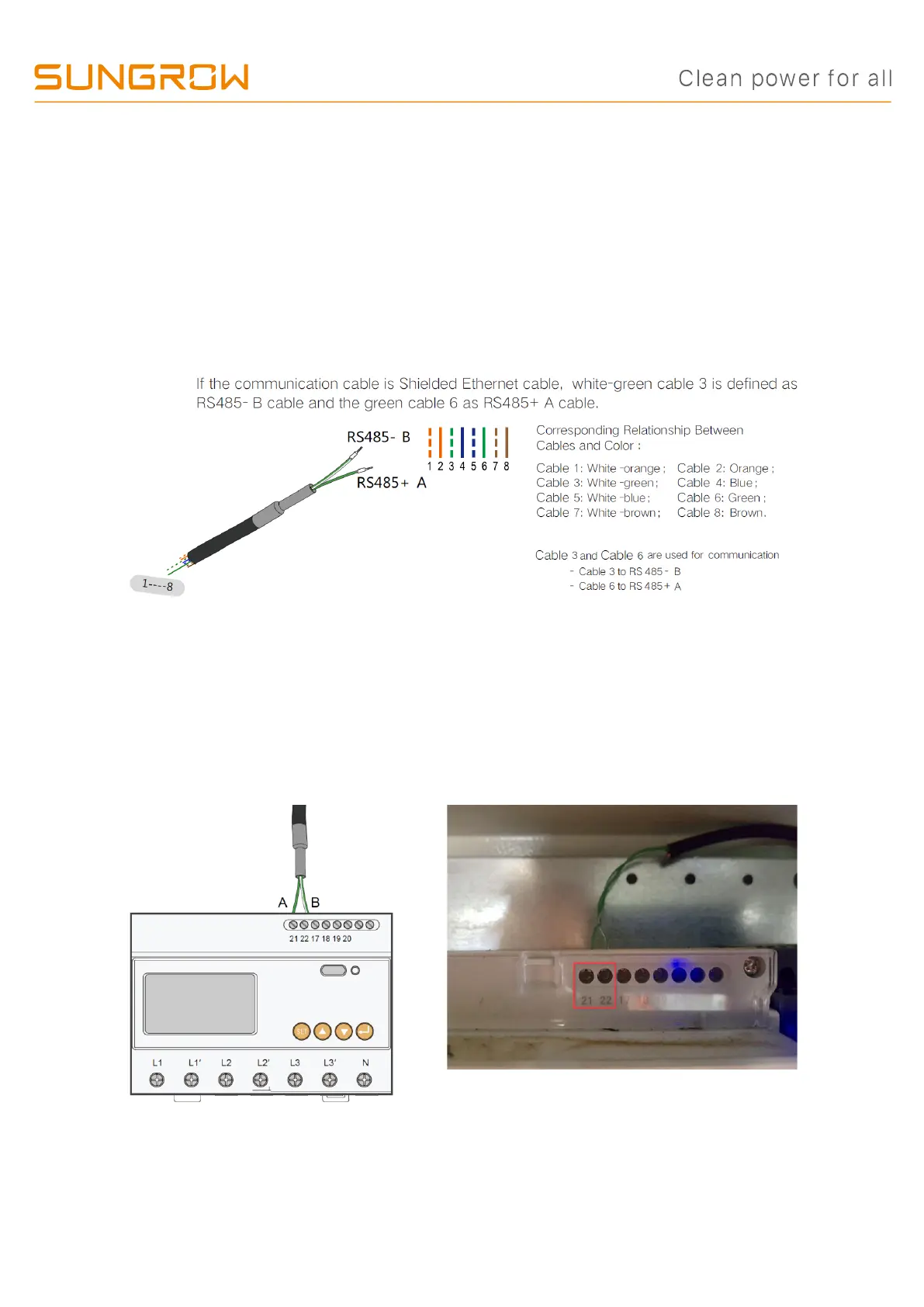

The corresponding pinouts to RJ45 are Pin 3 (White-green) to RS485- B and Pin 6
(Green) to RS485+ A:
DTSD1352 energy meter connection:
• Terminal 21 = RS485+ A (Green)
• Terminal 22 = RS485- B (White/Green)
