16

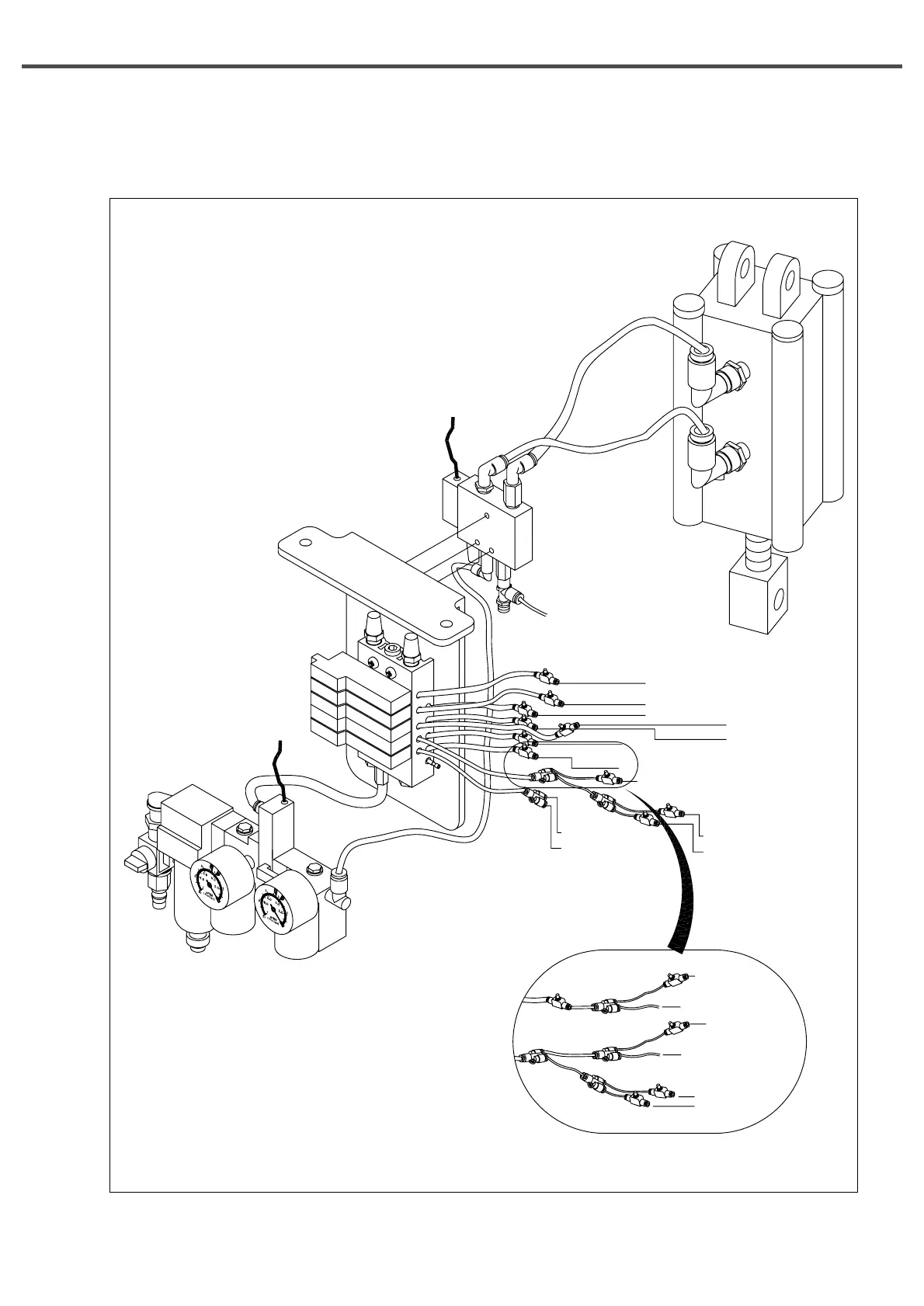

C. Connect air hoses, which are linked to the machine, to solenoid valves.
[ Fig. 7 ]
01 Model
Cutter (rear) (17)
Cutter (front) (16)
Cutter bracket (15)
Upper thread trimmer (front) (9)
Thread controller (rear) (7)
Upper thread trimmer (rear) (10)
Lower thread trimmer (rear) (5)
Thread controller (front) (8)
Lower thread trimmer (front) (6)
Safety plate (front) (12)
Safety plate (rear) (11)
Presser plate (left) (2)
Presser plate (right) (1)
Cloth opening (left) (4)
Cloth opening (right) (3)
Safety plate (front) (12)
Auxiliary clamp (front)(13)
Safety plate (rear) (11)
Cloth opening (left) (4)
Cloth opening (
right
) (3)
Auxiliary clamp (rear) (14)
02 Model
