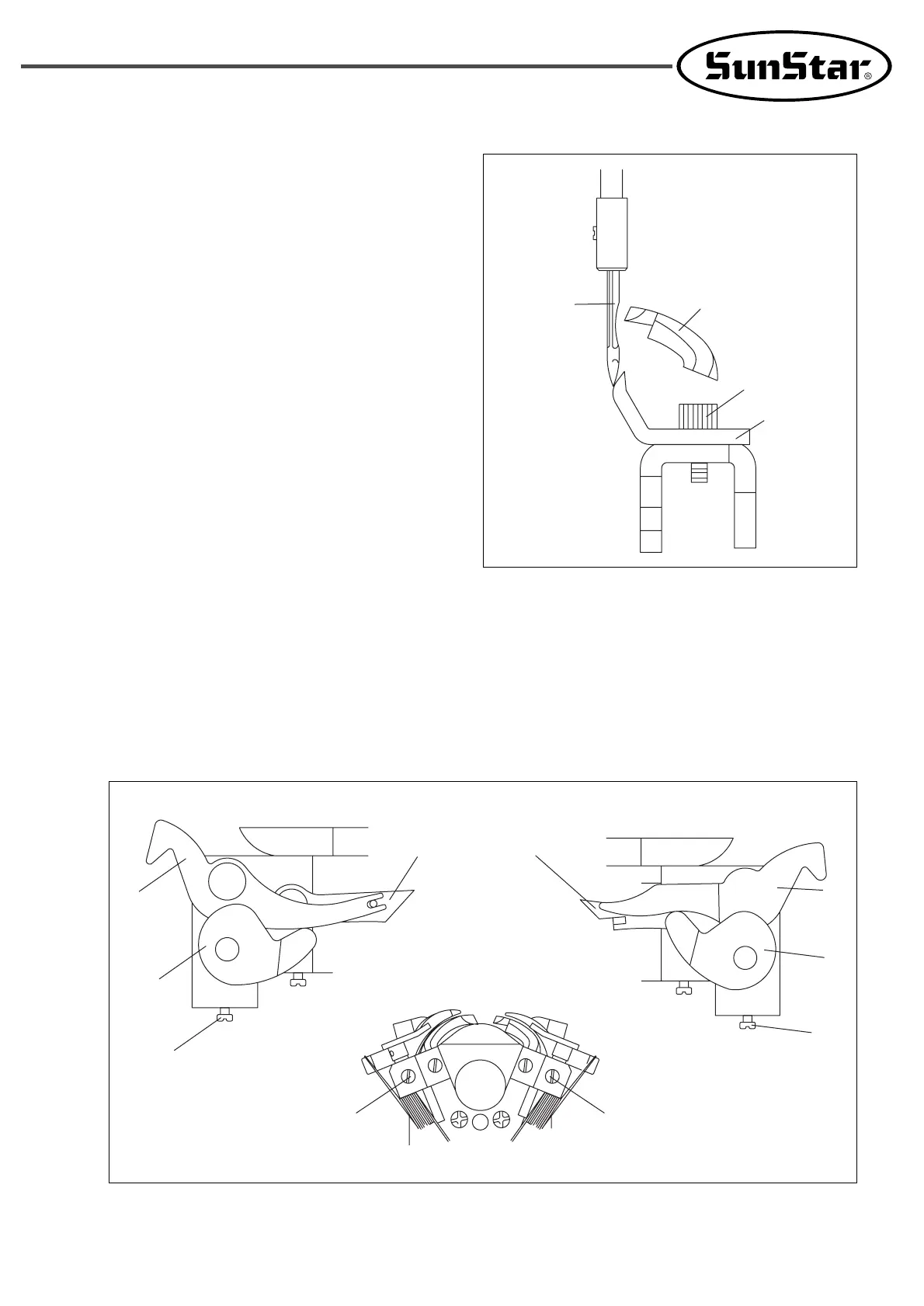

6) Adjust needle guard
A. Loosen screw① and adjust the position of the needle
guard②.
B. Until the end of the looper③ touches the needle④, the
needle④ shall not move against the needle guard②.
[ Fig. 33 ]
7) Adjust the position of spreader
A. Loosen the screw③ and adjust the spreader stopper (left)④ to make the fork of the spreader(left) ① meet the lower
thread guide hole of the looper(left)②.
B. Loosen the screw⑦ to make the both ends of the spreader (right)⑤ and the looper (right)⑥ located at the same place,
and adjust the position of the spreader stopper(right)⑧.
[ Fig. 34 ]
④
③
①
②
②
③
③
⑦
⑥
⑦
⑧
⑤
④
①
