7) Adjust limit switch (left)
When the transfer movement block touches the stopper block, the limit switch(left) shall be activated.
A. Loosen the bolt①.
B. Make the transfer movement block② touch the stopper block③.
C. Adjust the position of the setting plate of the limit switch⑤, in order to enable the part A of the transfer movement block
② to press the roller of the limit switch(left)④.
D. Tighten the bolt①.

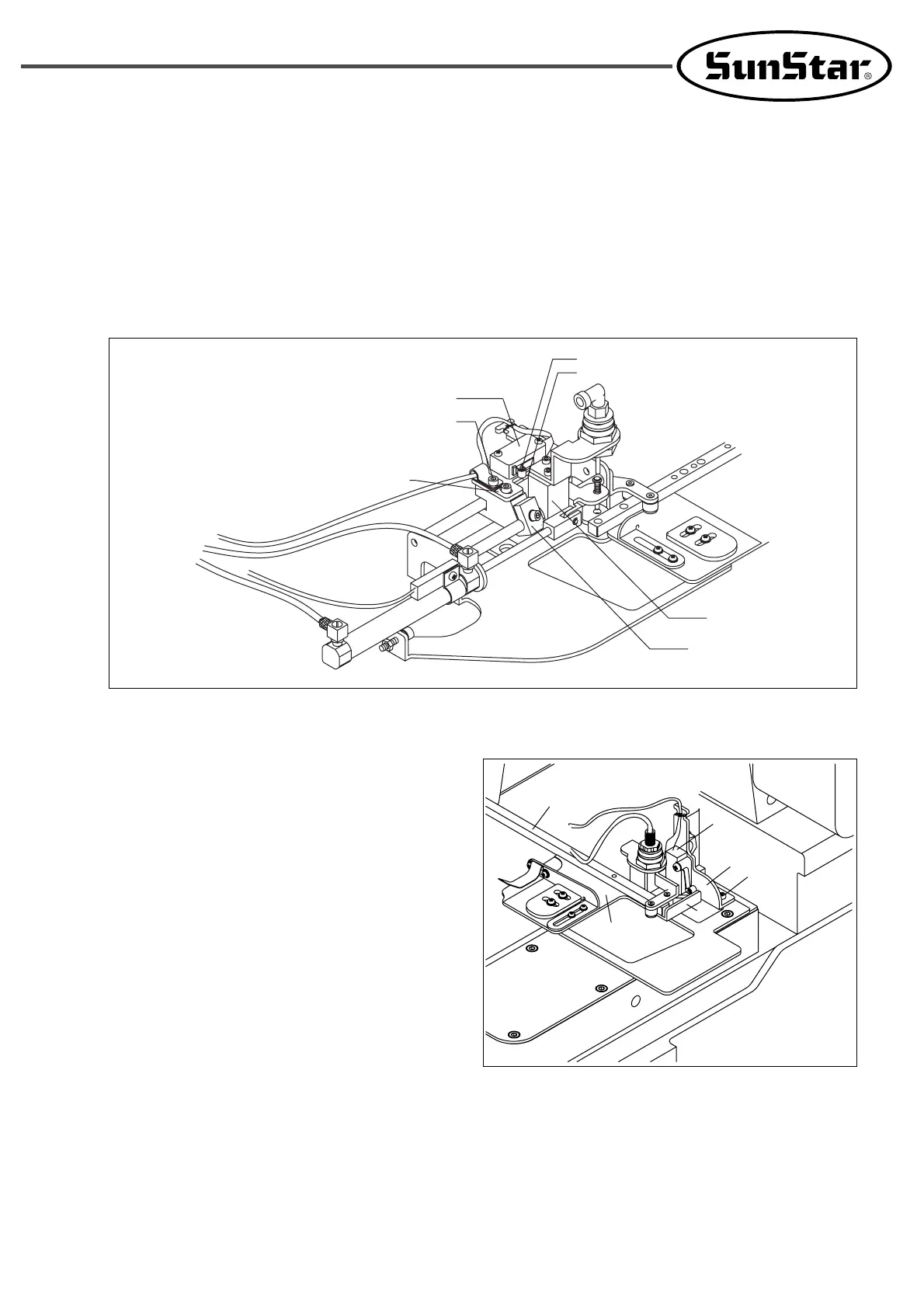

[ Fig. 15 ]
8) Adjust limit switch (right)
When the transfer movement block touches the stopper
block, the limit switch (left) shall be activated.
A. Loosen the bolt①.
B. Move the cloth transfer bar② to the setting position in
the left.
C. Adjust the position of the cloth transfer guide (right)⑤
in order to enable the part (A) of the cloth transfer plate
(right)③ could press the roller of the limit switch
(right)④.
D. Tighten the bolt①.
[ Fig. 16 ]
⑤
⑥
②
③
②
③
④
⑤
①
(A)
④
①
⑦
