C. Insert the transfer pin① into the hole which indicates the
original position of the cloth transfer bar.
D. Turn the bolt② to make it meet with the cloth transfer
bar④.
E. Tighten the nut③ to fix the bolt②.
F. Check whether the transfer pin① smoothly slides into
the original point after the cloth transfer bar touches the
bolt.

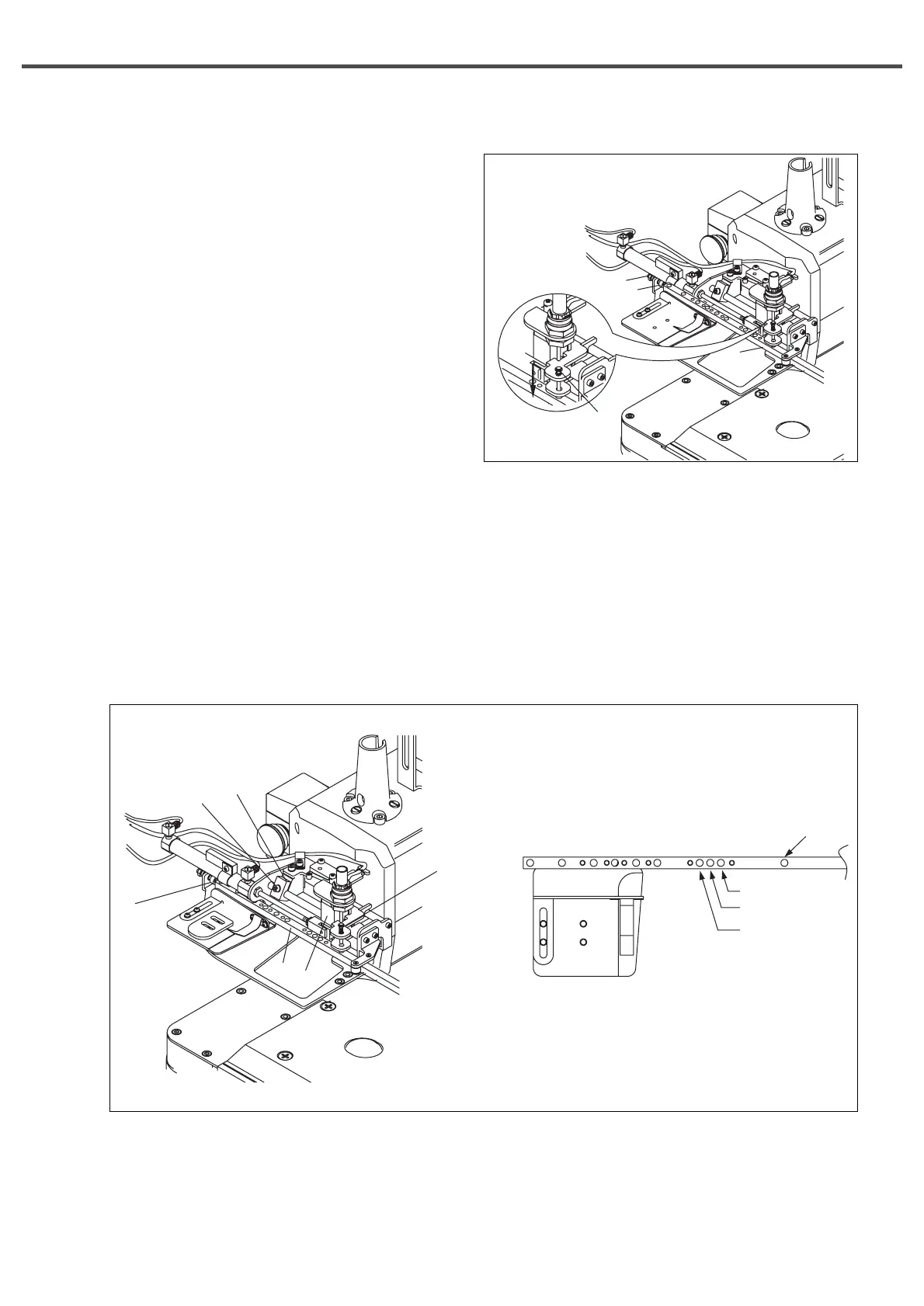

[ Fig. 13 ]
6) Adjust the gap between holes
A. Loosen the bolt①.
B. Push the cloth transfer bar② until it touches the stopper bolt①.
C. Move the transfer movement block④ to make sure of the smooth entering of the transfer pin③ into the indexer hole.
D. Make the stopper block⑤ touch the transfer movement block④ and tighten the bolt⑥ with the nut.
[ Fig. 14 ]
①
②
③
④
⑤
⑥
①
②
④
③
38.1mm
Baseline Location
44.45mm
50.8mm
