SunStar SPS/D-BH6000-02

45
11
Fly Indexer
1) Install Fly Indexer
A. Installation

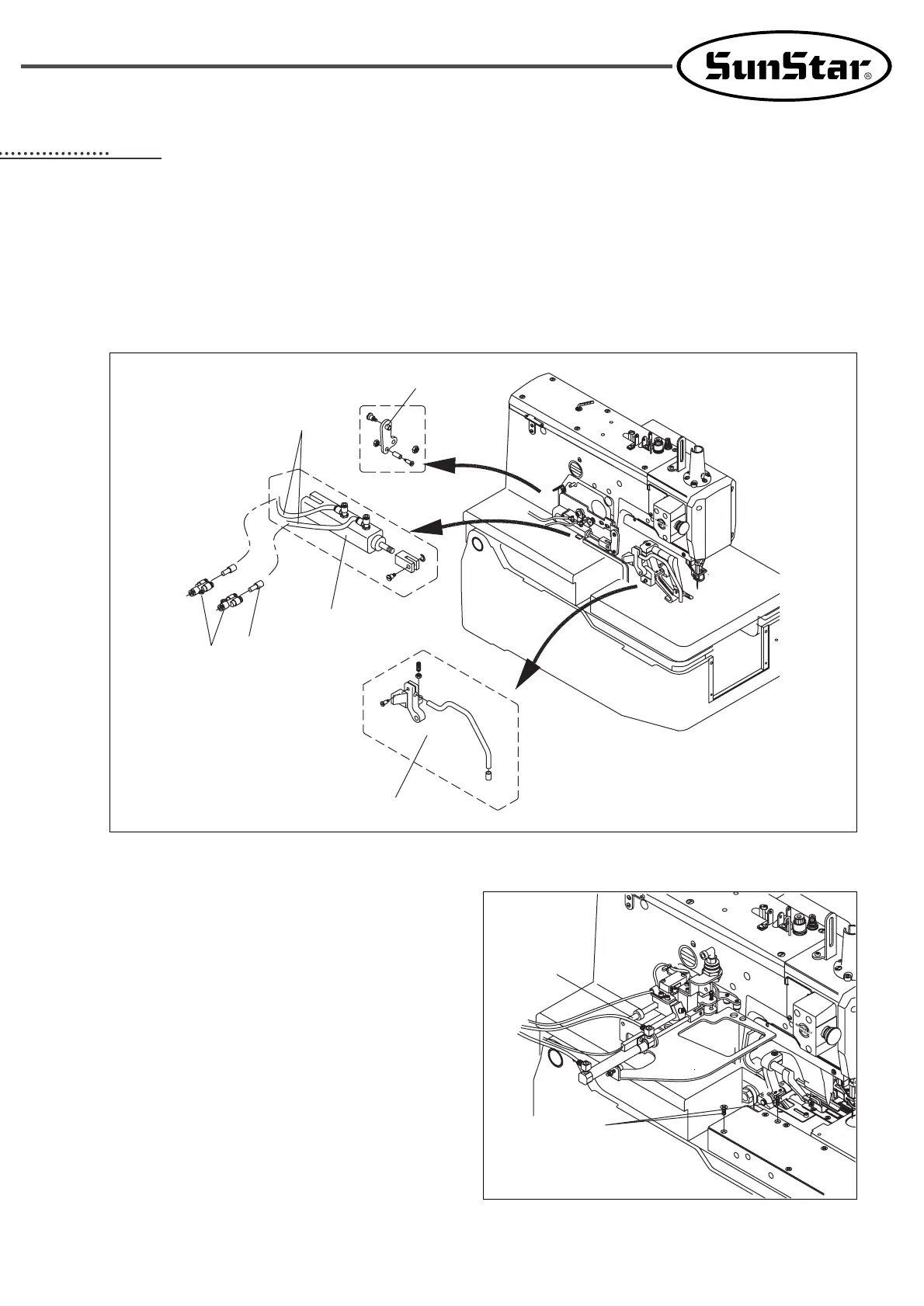

ⓐ Take out the air hose① and insert the plug③ into the joint②. Remove the auxiliary clamp arm④ and the operating
cylinder⑤, clamp link⑥.
[ Fig. 1 ]
ⓑ Remove the fastening screw (two screws)① of the
transfer base cover (left) and install the transfer base
(left)②.
[ Fig. 2 ]
⑥
①
⑤
④
②
①
③
②
