ⓒ Remove the fastening screws (two screws)① of the
transfer base cover (right) and install the transfer
base (right)②.

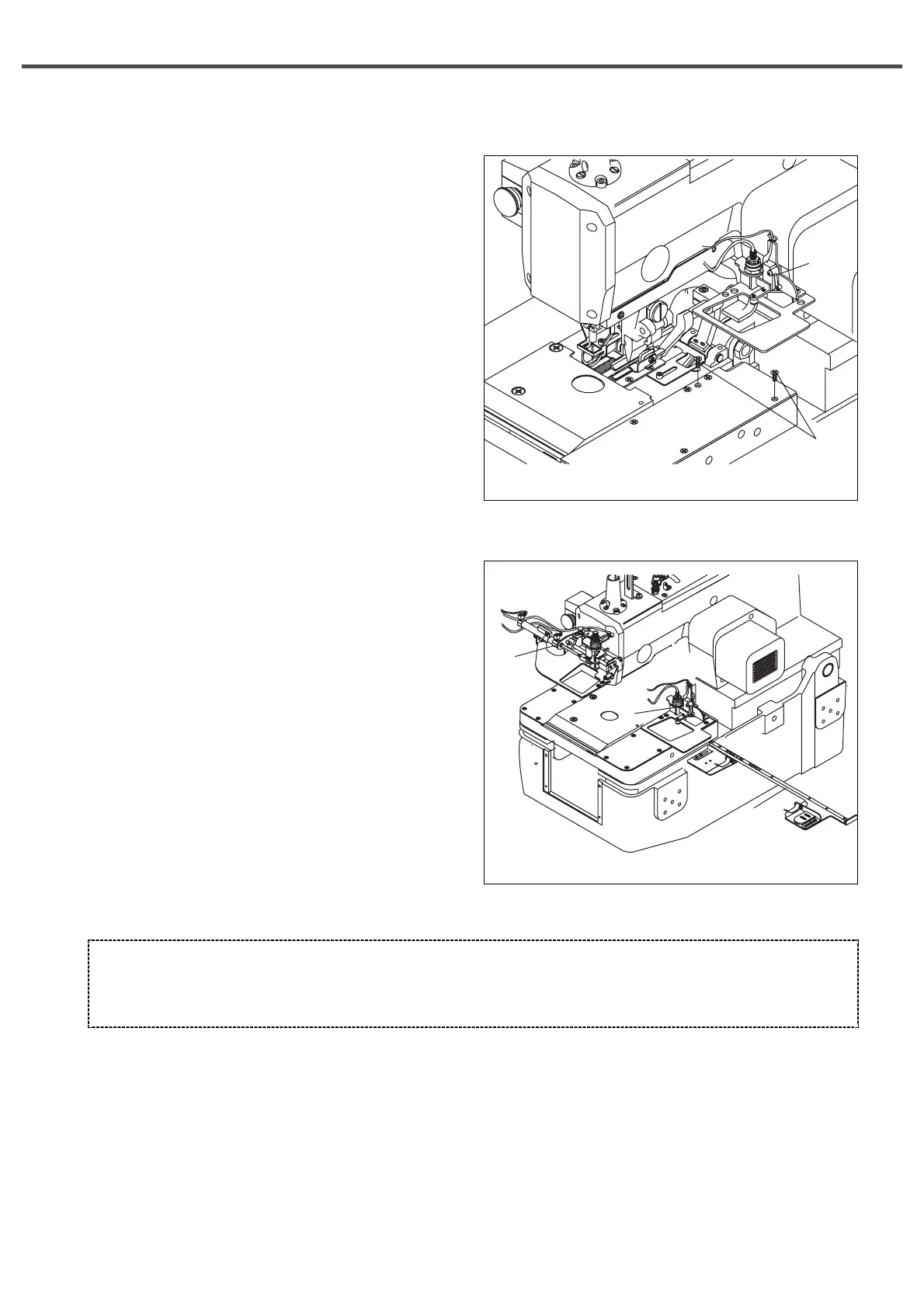

[ Fig. 3 ]
ⓓ Insert the cloth transfer bar between the rollers of the
cloth transfer guides (left & right)①, ②.
[ Fig. 4 ]
[ CAUTION ]
Make sure whether the transfer pin slides smoothly into all the holes of the cloth transfer bar. If it is not smooth, adjust the
position of the left and right transfer bases.
①
②
①
②
③
