49
3
4
38.1mm 44.45mm 50.8mm
Gap
No. of Holes

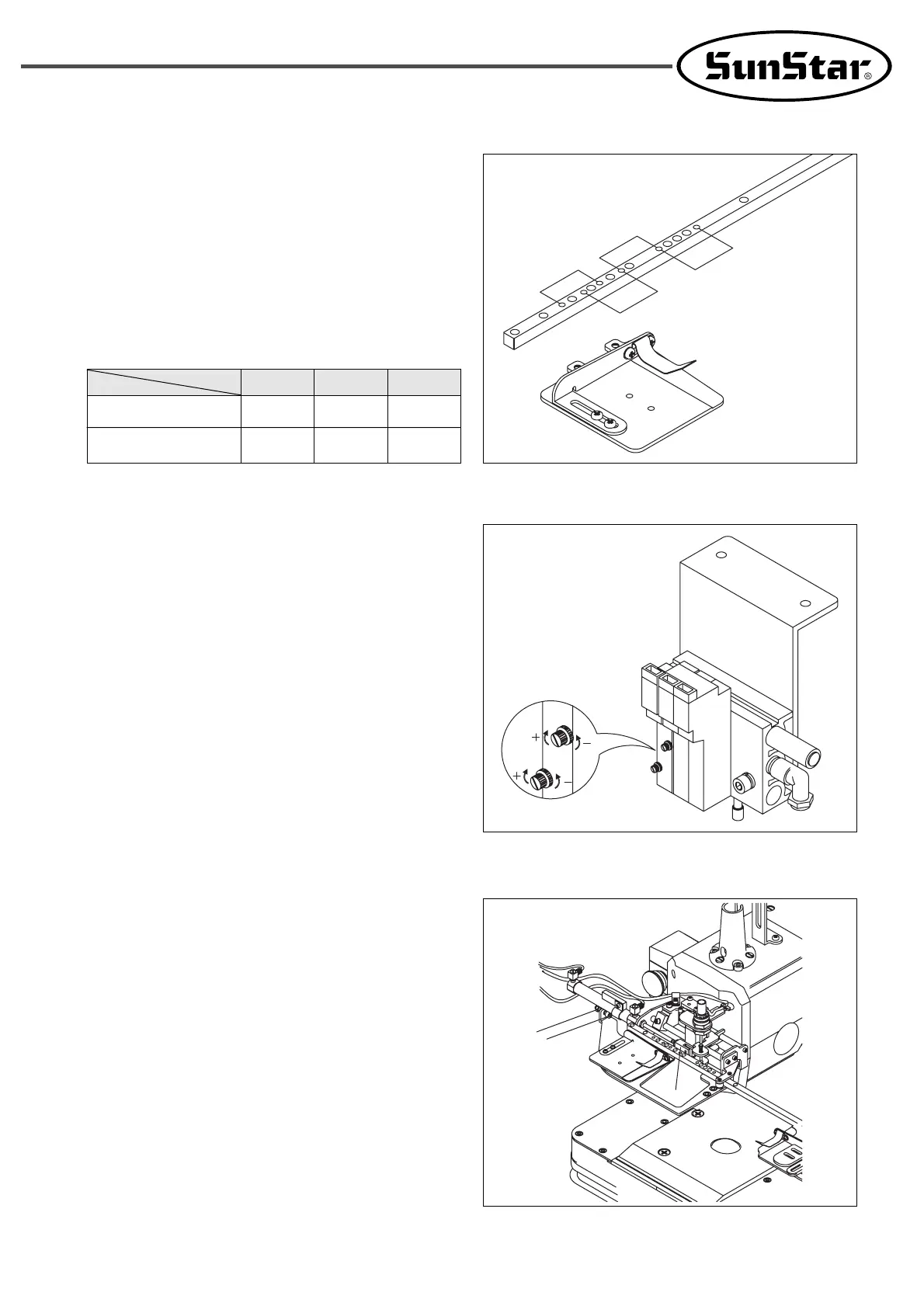

3) Adjust the position of cloth transfer
plate (left)
The position of the cloth transfer plate (left) is determined
depending on the gap between holes and the number of
holes. Refer to the table to install the cloth transfer plate.
4) Adjust the speed of cloth transfer
Turn the valve clockwise and the speed will increase. Turn
the value counter-clockwise and the speed will decrease.
[ Fig. 10 ]
[ Fig. 11 ]
5) Adjust the original position of cloth
transfer bar
A. Loosen the nut① and move the bolt② to the left side.
B. Push the cylinder rod③ to the maximum level.
[ Fig. 12 ]
①
②
③
