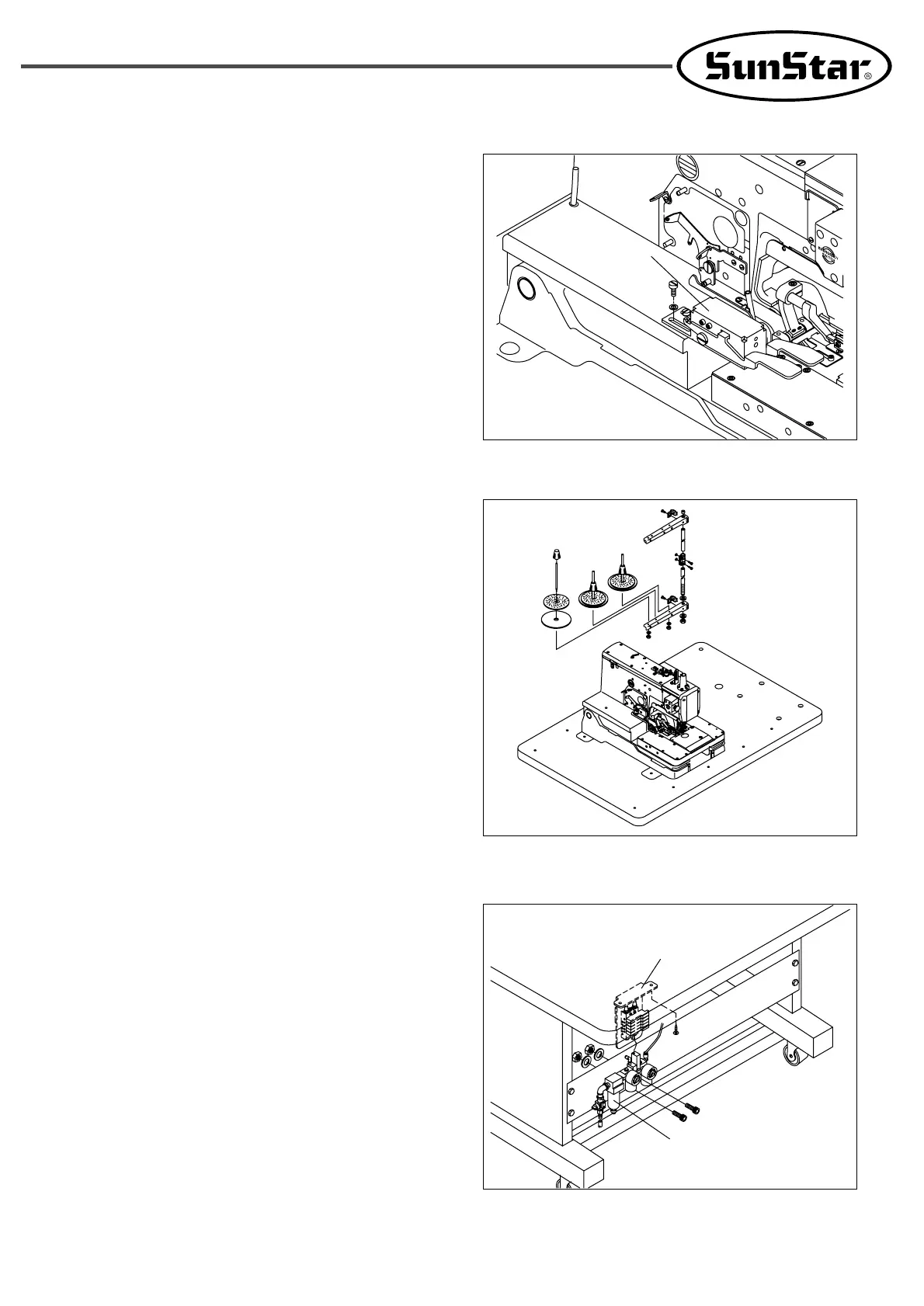

[ Fig. 5 ]
C. Install the thread stand on the table.
[ Fig. 6 ]
5) Installing pneumatic parts
A. Attach the filter regulator① to the rear side of the table
legs using bolts and nuts.
B. Attach the solenoid valve② to a proper place on the
back of the table using fixing screws.
②
①
①
[ Fig. 4 ]
B. Fix the hand switch① to the bed.
