47

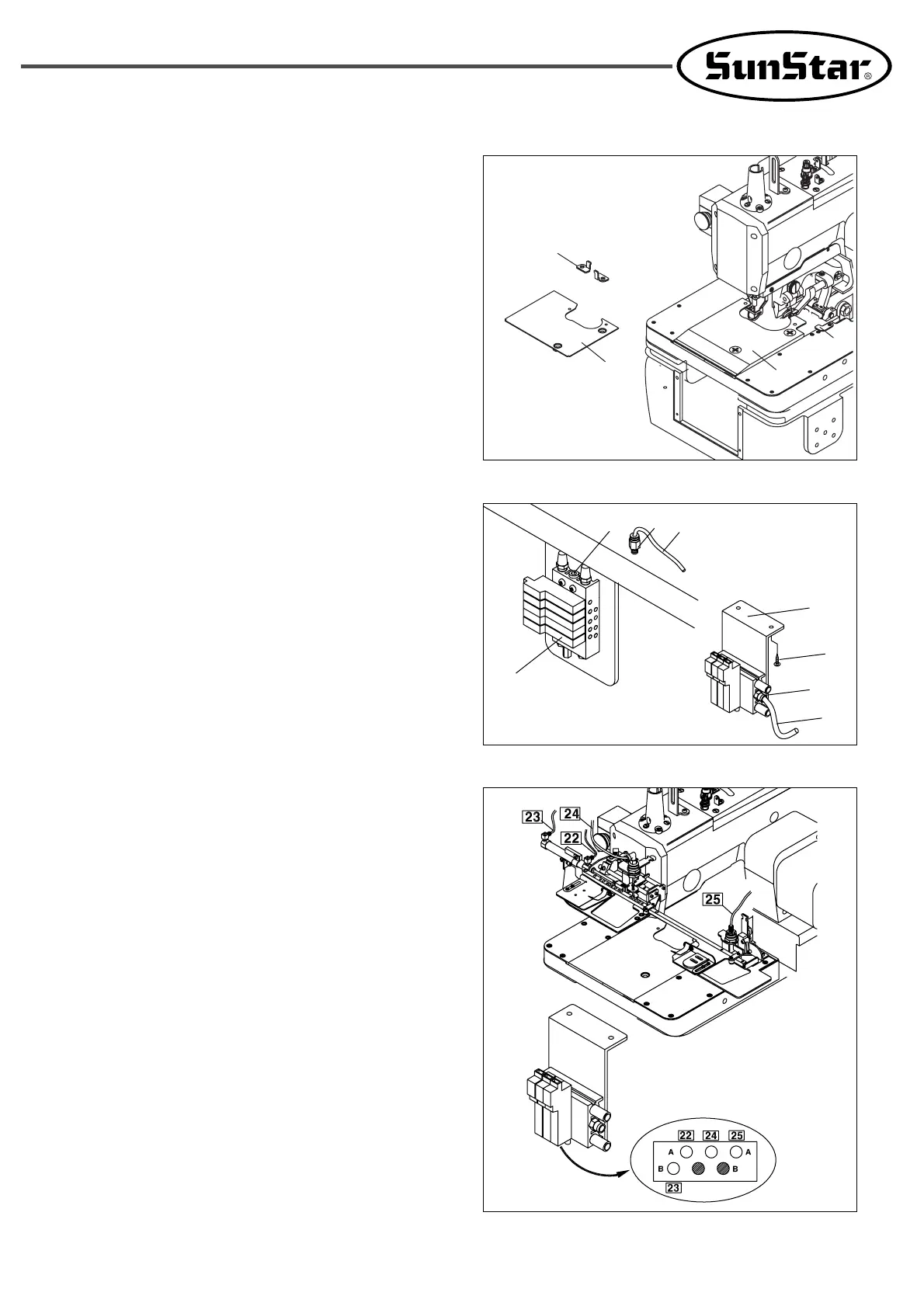

B. Replace the lower thread trimming cover plate and the
press plate cover
Remove the currently installed lower thread trimming
cover plate (B)① and the press plate cover②, and
replace them with new lower thread trimming cover
plate(C)③ and the press plate cover (B)④.
[ Fig. 5 ]
C. Install solenoid valve
ⓐ Install the manifold bracket① on the lower part of
the table using the screw②.
ⓑ Remove the plug④ of the main solenoid valve③
and attach the joint⑤.
ⓒ Use the air hose⑦ (ф6) to connect the joint⑤ and
the nipple⑥.
[ Fig. 6 ]
D. Connect air hoses
Air hoses can be connected to the solenoid valve
respectively as shown in this figure.
[ Fig. 7 ]
④
③
①
②
①
②
⑥
⑤
⑦
⑦
④
③
