C. Adjust the vertical position of the thread holder
ⓐ Manually move the X-Y feed base to the sewing starting point.
ⓑ If the thread holder is located below the sewing starting baseline, adjust the distance between the upper side of the
needle plate① and the lower side of the thread holder② at 5~6mm by releasing the screw③.

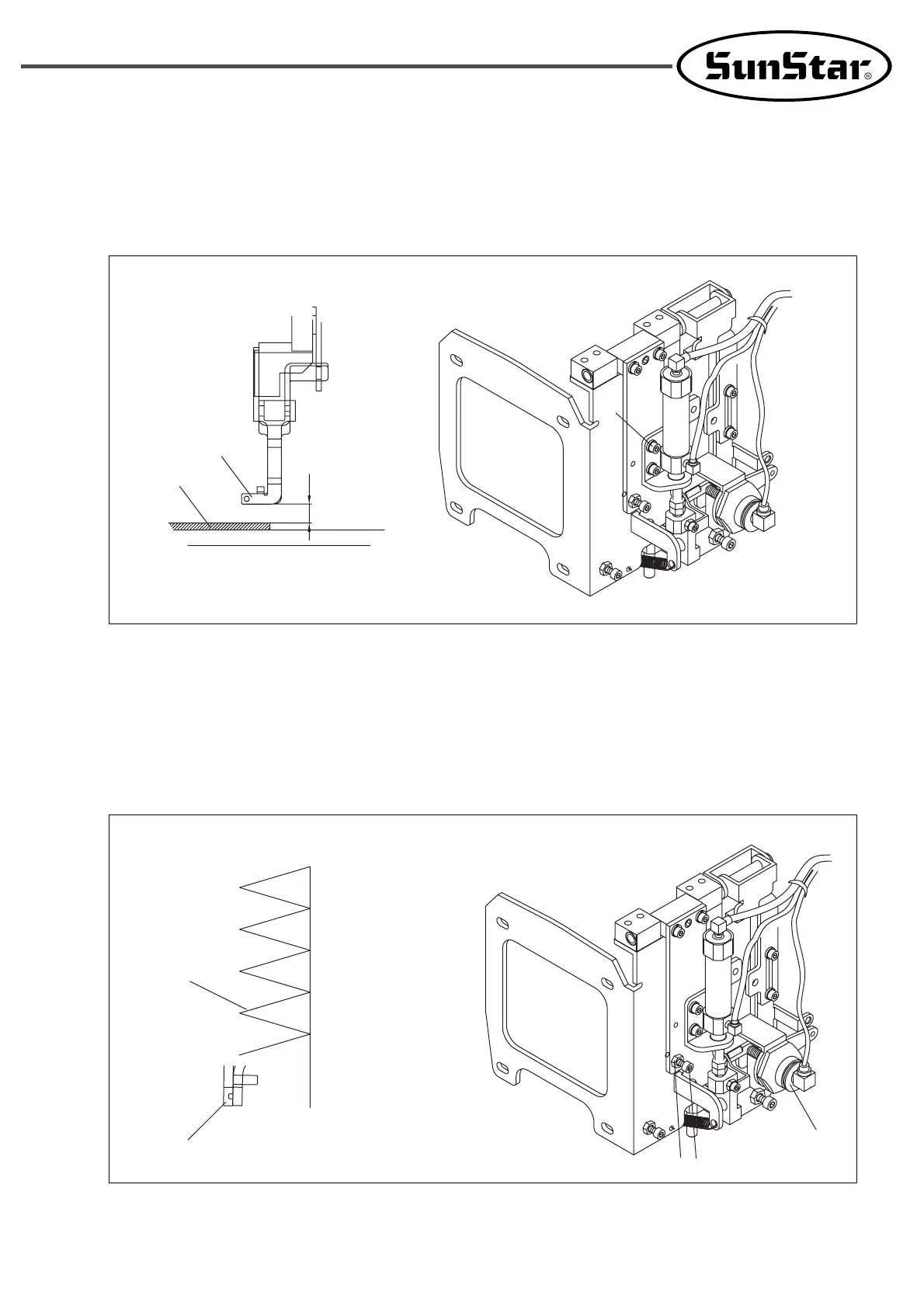

[ Fig. 31 ]
D. Adjust the position of the sewing ending baseline
ⓐ Manually operate the sewing machine to the point where the upper thread holder starts running.
ⓑ Confirm that the thread holder setting cylinder①.
ⓒ Adjust the adjusting screw② and nut③ to put the left (A) side of the zigzag stitch length in line with the inside (B) of
the thread holder front end.
[ Fig. 32 ]
5~6mm
①
①
③②
(A)
(B)
③
②
