THREE PHASE HI 25/50kW | Installer Manual32
L wireCAN N wire PE wire
Inverter
Master inverter Slave Inverter Slave Inverter
Backup Load
Inverter
No.3
(slave)
Inverter
No.2
(slave)
Inverter
No.1
(master)
4.
6.
7.
9.
10.
5.
2.
3.
Battery pack
Home Load
L1L2L3NPE
L1
L2
L3
N
PE
CT
Arrow pointing
to inverter
8.
Ground
Ground
Ground
Battery pack
1.
Battery pack
CT1
CT2
CT3
Parallel_1 Parallel_2Meter CAN DRM BMS1 BMS2 RS485
1/2/3. DC Breaker for battery
SUN 25K-SG-EU: 200A DC breaker
SUN 30K-SG-EU: 200A DC breaker
SUN 40K-SG-EU: 200A DC breaker
SUN 50K-SG-EU: 200A DC breaker
4/6/8. AC Breaker for grid port
SUN 25K-SG-EU: 240A AC breaker
SUN 30K-SG-EU: 240A AC breaker
SUN 40K-SG-EU: 240A AC breaker
SUN 50K-SG-EU: 240A AC breaker
5/7/9. AC Breaker for backup load
SUN 25K-SG-EU: 240A AC breaker
SUN 30K-SG-EU: 240A AC breaker
SUN 40K-SG-EU: 240A AC breaker
SUN 50K-SG-EU: 240A AC breaker
10. AC Breaker for home load
Depends on household loads
Grid

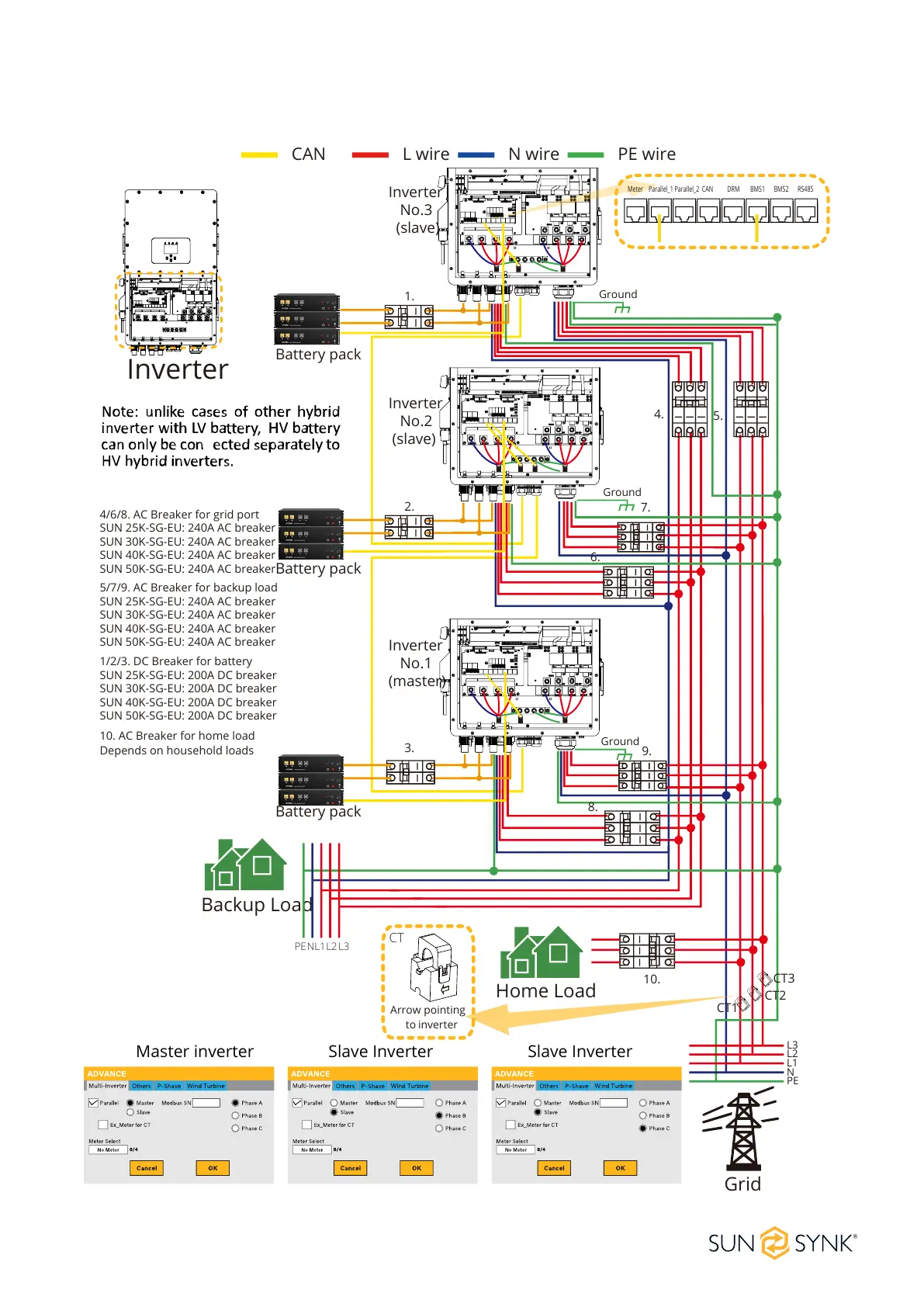

Three Phase Parallel Connection
01 02 03
