SunSynk SUNSYNK-25K-SG01HP3-EU-BM2 - PRODUCT INTRODUCTION; System Overview

THREE PHASE HI 25/50kW | Installer Manual7
PRODUCT INTRODUCTION
The Sunsynk Three-Phase Hybrid Inverter is a multifunctional inverter, combining functions of inverter, solar
charger and battery charger to oer uninterruptible power support with portable size. Its comprehensive
LCD display oers user congurable and easy accessible button operation such as battery charging, AC/solar
charging, and acceptable input voltage based on dierent applications.

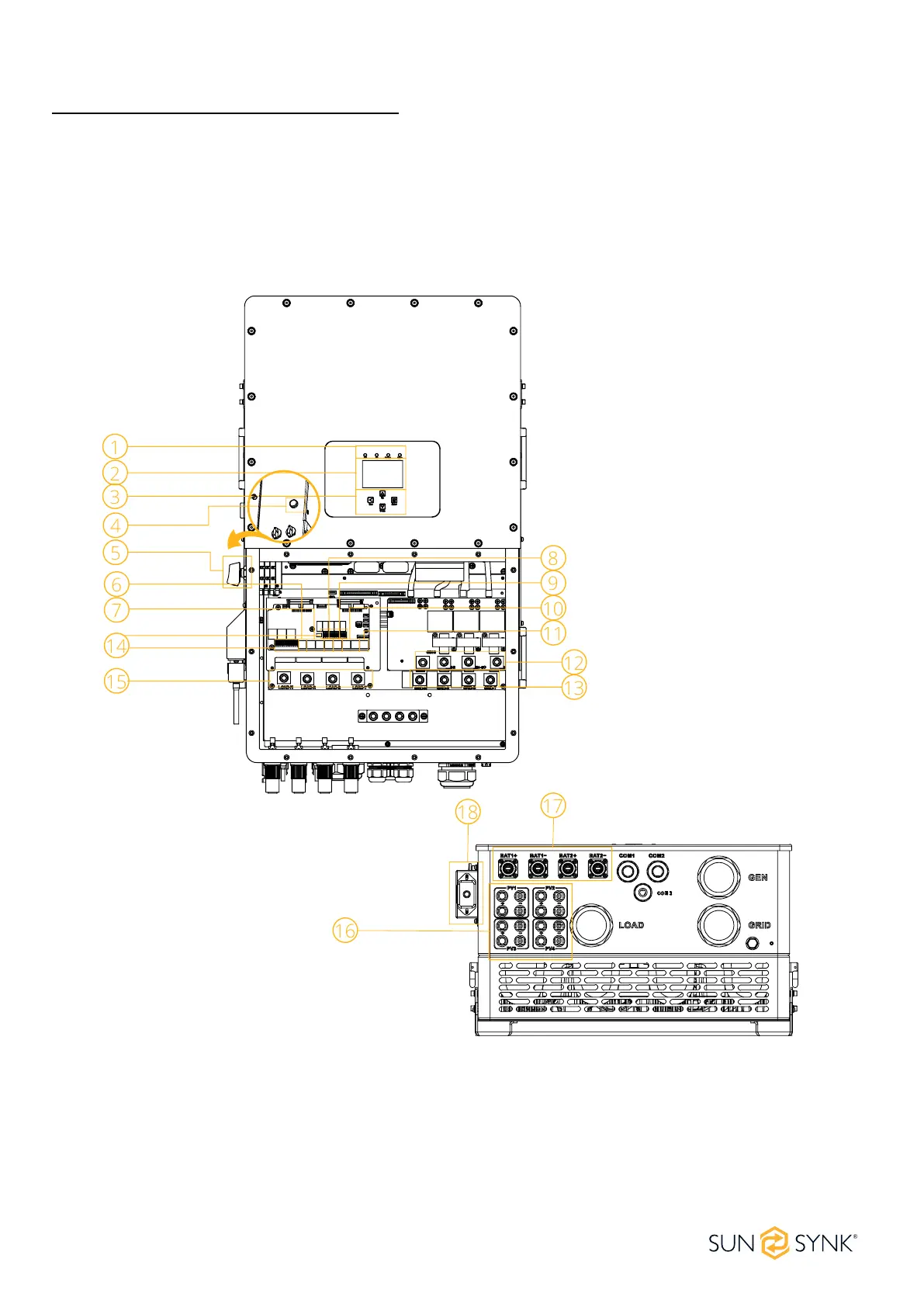

System Overview
1. Inverter Indicators 7. Parallel Port 13. Grid
2. LCD Display 8. CAN Port 14. Function Port
3. Function Buttons 9. DRM Port 15. Load
4. Power on/o button 10. BMS Port 16. PV Input
5. DC switch 11. RS485 Port 17. Battery Input
6. Meter Port 12. Generator Input 18. WiFi Interface
1
2
3
4
5
16
17
18
7
6
8
9
11
10
12
13
14
15
