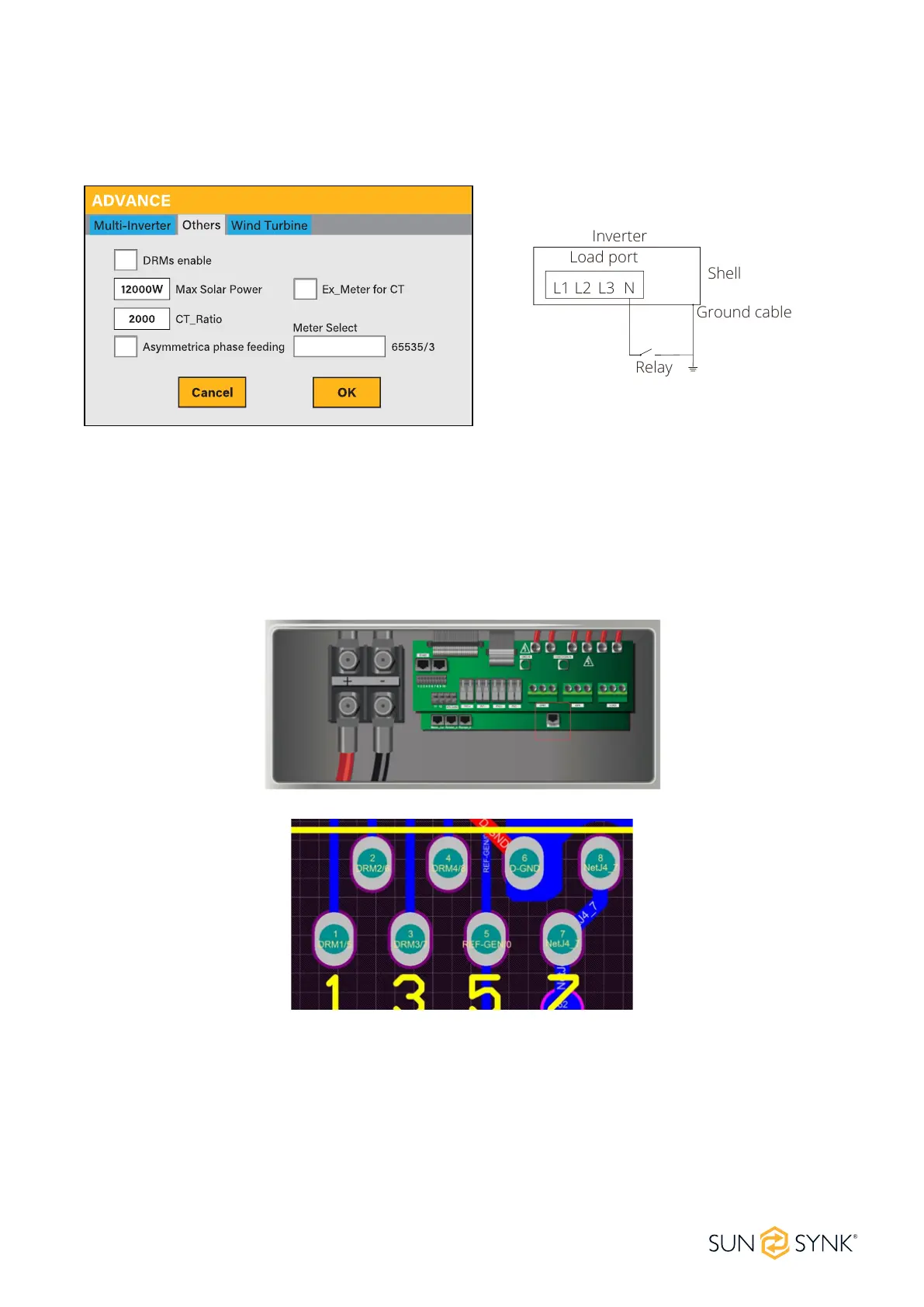

THREE PHASE HI 25/50kW | Installer Manual58
Connecting the DRM’s
This can be selected under advance settings.
Ex_Meter For CT: when in a Three-phase system with a CHNT Three-phase energy meter (DTSU666),
click the corresponding phase where the hybrid inverter is connected. e.g. when the hybrid inverter
output connects to A phase, please click A Phase.
Asymmetrica phase feeding: If it was checked, the inverter will take power from the grid balance of on
each phase (L1/L2/L3) when needed.
Select the meter connection.
1. DRM 1/5
2. DRM 2/6
3. DRM 3/7
4. DRM 4/8
5. Ref 0
6. D Ground
7. Net J 4-7
8. Net J 4-7
L1 L2 L3 N
Load port
Inverter
Shell
Relay
Ground cable
To Next Page
