SINGLE PHASE HI 3.6/5kW | Installer Manual16
Please follow the below steps to implement battery connection:
Please choose a suitable battery cable with the correct connector which can well t into the battery
terminals.
Use a suitable screwdriver to unscrew the bolts and t the battery connectors in, then fasten the bolt
with the screwdriver, ensuring the bolts are lightened with a torque of 5.2 N.m in a clockwise direction.
Make sure the polarity at both the battery and inverter is correctly connected.
In case of children touching or insects entering the inverter. Please make sure the inverter connector is
fastened to a waterproof position by twisting it clockwise.
WARNING
Reverse Polarity.
Before making the nal DC connection or closing DC breaker/disconnect, be sure positive (+) must
be connected to the positive (+) and negative (-) must be connected to the negative (-). A reverse
polarity connection on the battery will damage the inverter.
WARNING
All wiring/connecting must be performed by qualied personnel. Before making the nal DC
connection or closing the DC Breaker/disconnection device, ensure the inverter unit is wired
correctly. A reverse-polarity connection on the battery will damage the inverter.

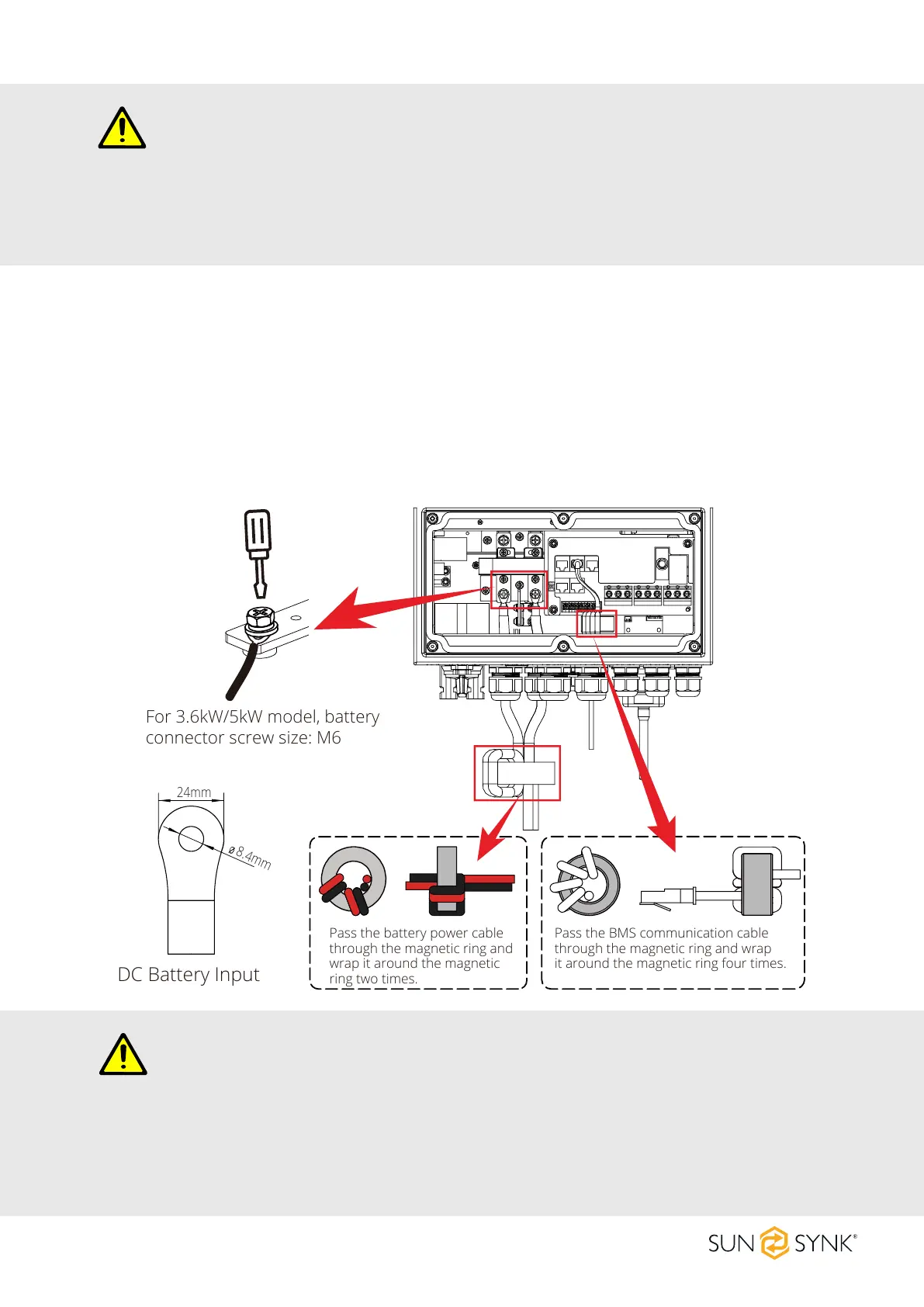

ON
1 2
Pass the battery power cable
through the magnetic ring and
wrap it around the magnetic
ring two times.
Pass the BMS communication cable
through the magnetic ring and wrap
it around the magnetic ring four times.
For 3.6kW/5kW model, battery
connector screw size: M6
24mm
8.4mm
DC Battery Input
To Next Page
