SINGLE PHASE HI 3.6/5kW | Installer Manual29

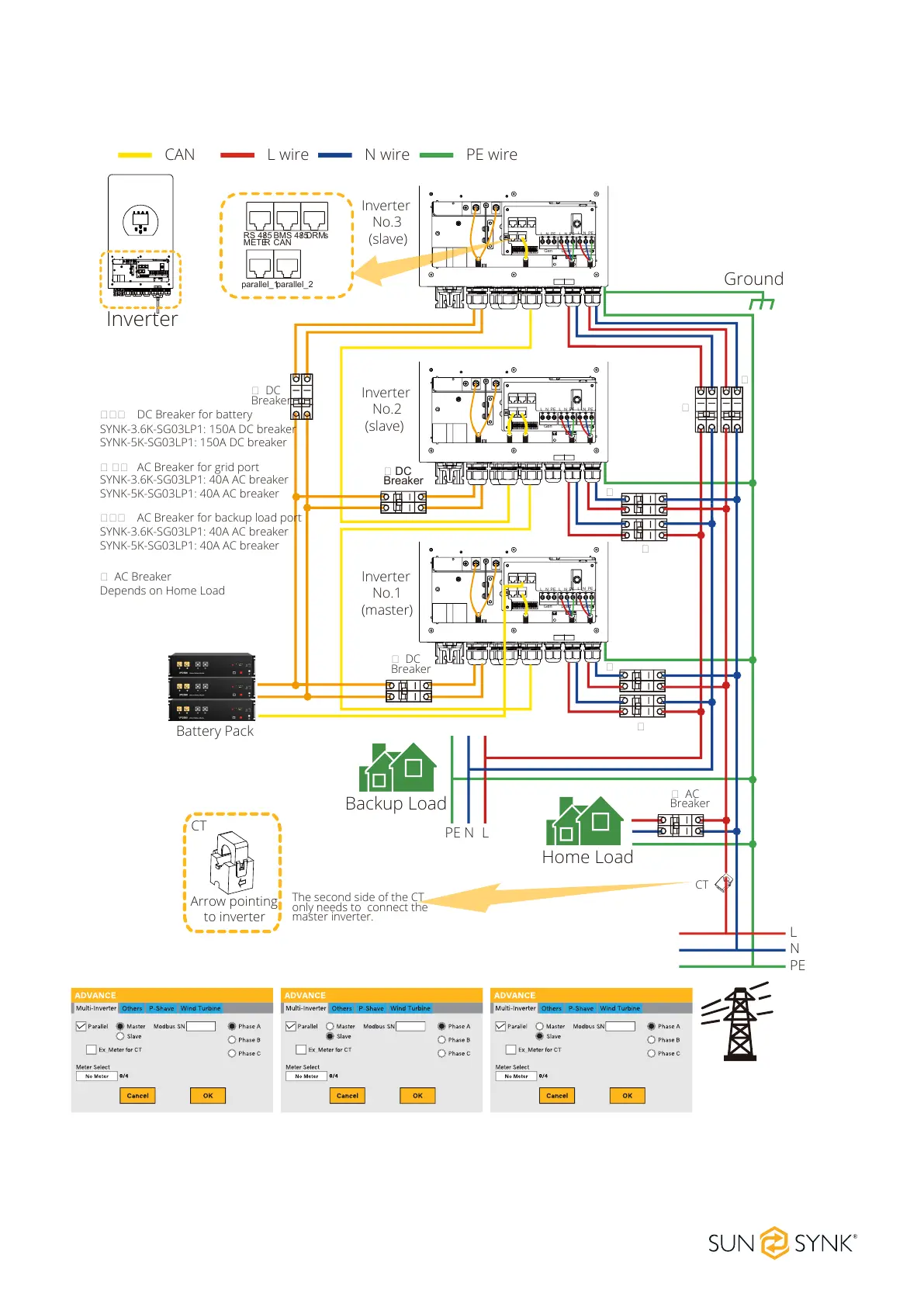

Single-Phase Parallel Connection
ON
1 2
ON
1 2
ON
1 2
ON
1 2
L wireCAN N wire PE wire
Master inverter Slave Inverter Slave Inverter
Grid
Backup Load
L
N
PE
LNPE
Inverter
No.3
(slave)
Ground
Inverter
No.2
(slave)
Inverter
No.1
(master)
Home Load
Battery Pack
� DC
Breaker
� DC
Breaker
� DC
Breaker
��� DC Breaker for battery
SYNK-3.6K-SG03LP1: 150A DC breaker
SYNK-5K-SG03LP1: 150A DC breaker
� �� AC Breaker for grid port
�
�
�
� AC
Breaker
SYNK-3.6K-SG03LP1: 40A AC breaker
SYNK-5K-SG03LP1: 40A AC breaker
��� AC Breaker for backup load port
SYNK-3.6K-SG03LP1: 40A AC breaker
SYNK-5K-SG03LP1: 40A AC breaker
� AC Breaker
Depends on Home Load
Load
L N PEL N PE
L N PE
Grid
Gen
Load
L N PEL N PE
L N PE
Grid
Gen
Load
L N PEL N PE
L N PE
Grid
Gen
The second side of the CT
only needs to connect the
master inverter.
CT
�
�
�
CT
Arrow pointing
to inverter
Inverter
RS 485/
METER
parallel_1parallel_2
BMS 485/
CAN
DRMs
01 02 03
Master Inverter Slave Inverter Slave Inverter
