SINGLE PHASE HI 3.6/5kW | Installer Manual18

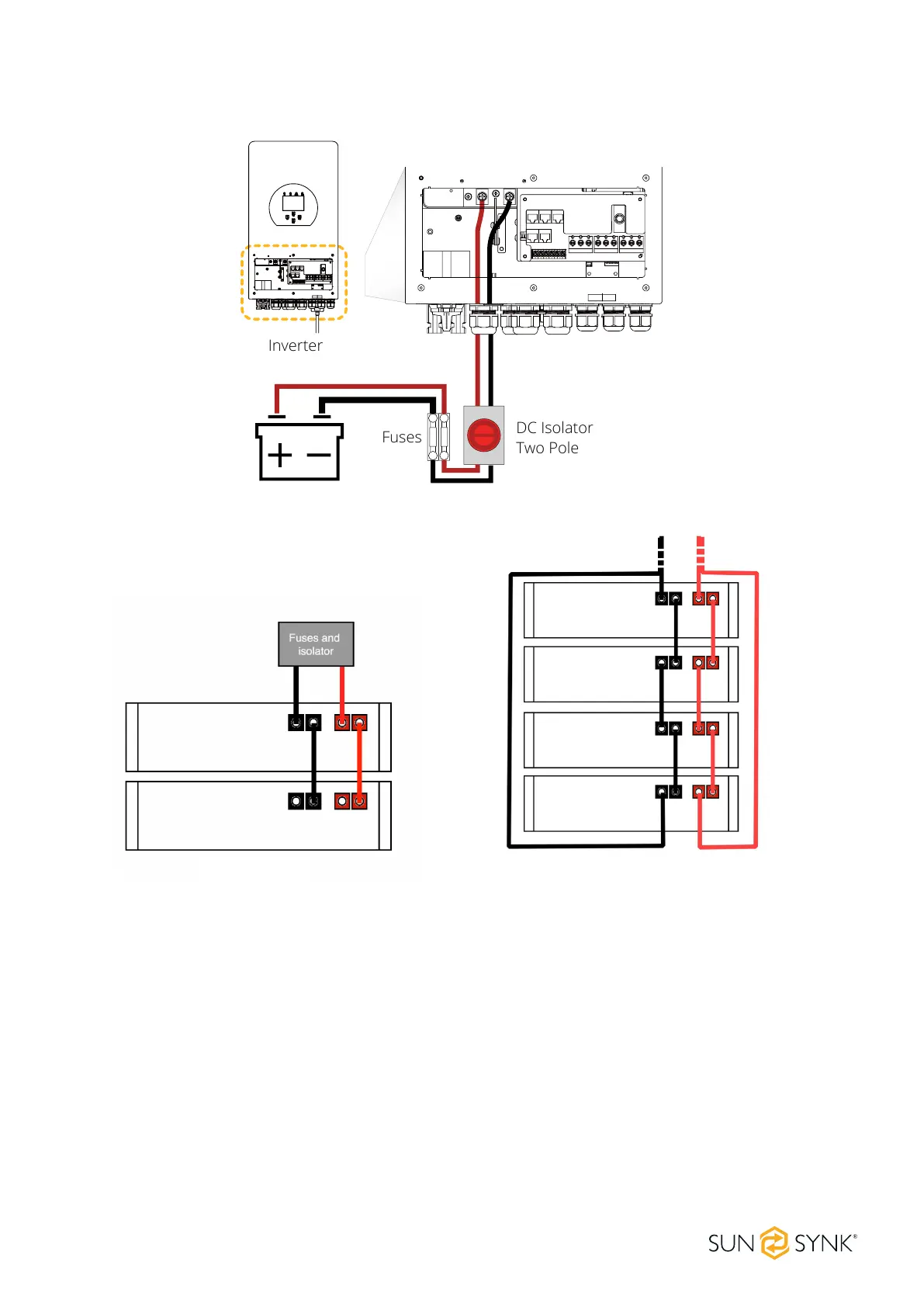

Recommended DC Battery Protection
Inverter
DC Isolator
Two Pole
Fuses
ON
1 2
ON
1 2
Connecting a Lithium Battery
When connecting a Lithium Battery, follow the connection steps below and check ‘Setting up a Lithium
Battery’ to connect with an inverter.
1. Connect the correct cable diameter following the battery manufacture specications and recommended
safety devices.
2. Connect a communication cable from the batteries to the inverter in compliance with the battery
manufacturer's guidelines. The cables have two ends, one to be specically connected to the BMS and
another to be connected to the inverter, do not misconnect them.
3. Connect the power and communication cables to the inverter correctly.
Max 100 AMP Max 200 AMP
Both cables must be
the same length
To Next Page
